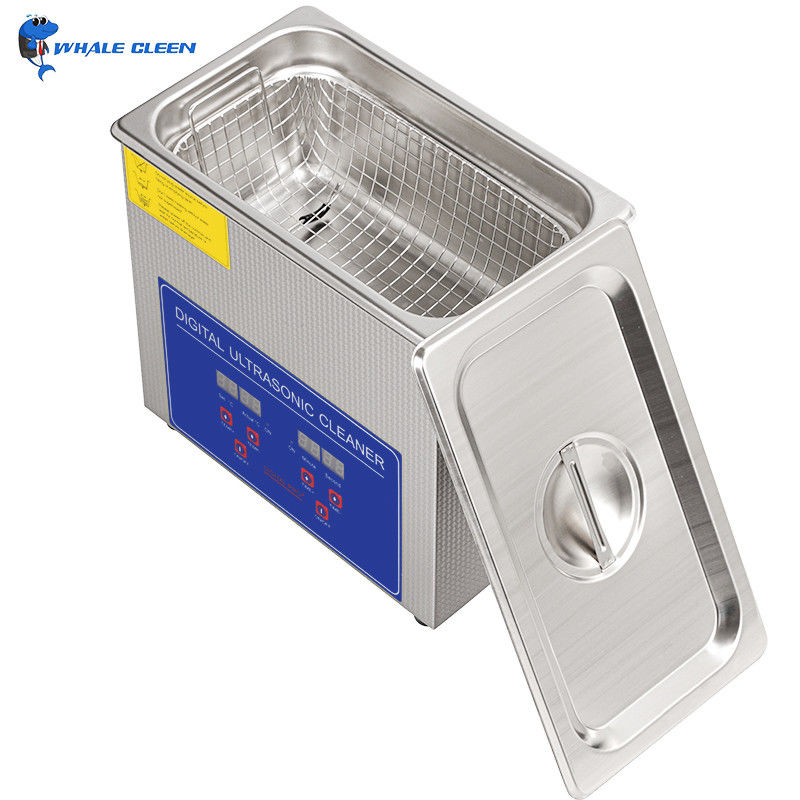

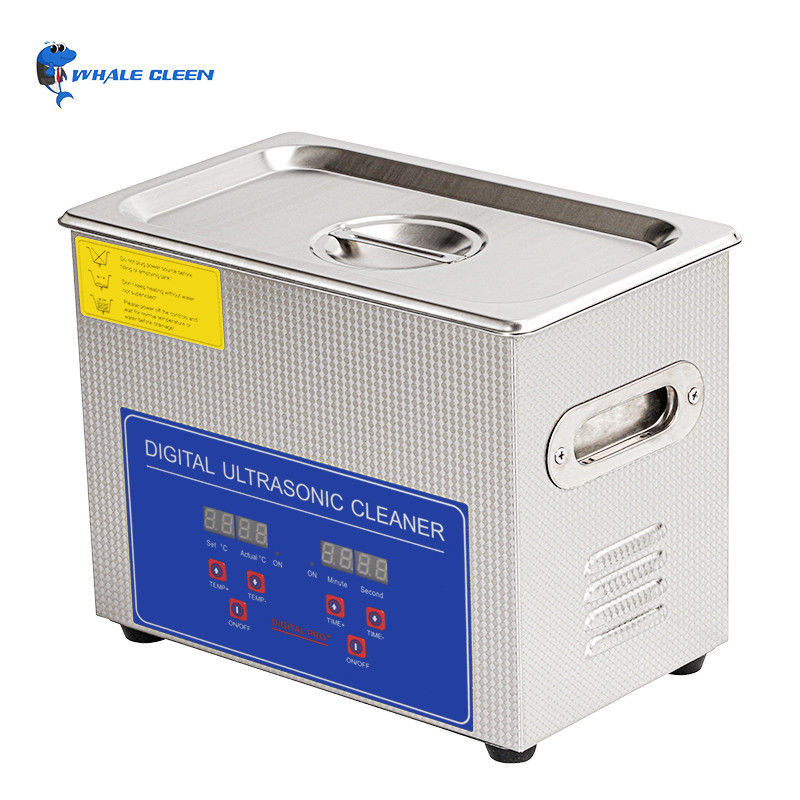

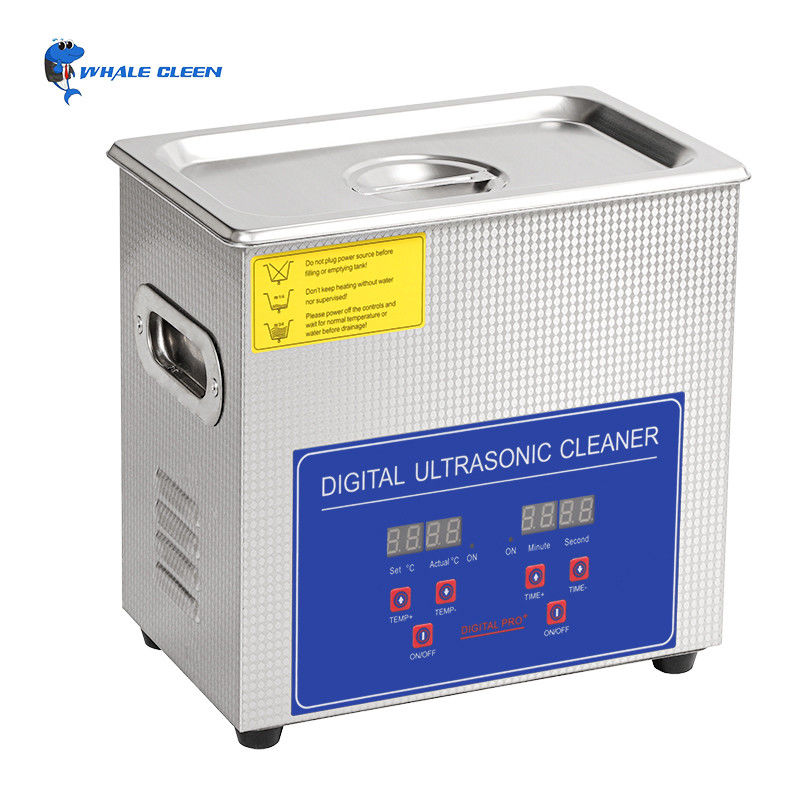

40KHz 3200ml Industrial Ultrasonic Bath 1-30mins Adjustable For 3D Printed Parts

40KHz 3200ml Industrial Ultrasonic Bath 1-30mins Adjustable For 3D Printed Parts

  • Highlight

    40KHz Industrial Ultrasonic Bath

    ,

    3200ml Industrial Ultrasonic Bath

    ,

    Printed Parts Ultrasonic Cleaner Industrial Use

  • Tank Capacity
    3200ml
  • Heater
    20-80C Adjustable
  • Timer
    1~30mins Adjustable
  • Frequency
    40KHz
  • Tank Size
    240x135x100mm
  • Unit Size
    265x165x220mm
  • Product Name
    Ultrasonic Washer
  • Ultrasonic Power
    100Watt
  • Place of Origin
    China
  • Brand Name
    Whale cleen
  • Certification
    CE, Roth
  • Model Number
    Z-S02
  • Minimum Order Quantity
    2 Units
  • Price
    Negotiable
  • Packaging Details
    Carton Box Packing
  • Delivery Time
    Depend On Quantity
  • Payment Terms
    T/T
  • Supply Ability
    20000 Units Per Month

40KHz 3200ml Industrial Ultrasonic Bath 1-30mins Adjustable For 3D Printed Parts



3.2L 100W Industrial Ultrasonic Bath For 3D Printed Parts With Heater



Why You Need Whale Cleen sonic Industrial Ultrasonic Bath For 3D Printed Parts?



Removing extra supporting and separating material from a 3D printed part quickly and effectively can be difficult. The layers to be removed are often thin and not easily accessible. Scrubbing or mechanical removal is time-consuming and can leave an unwanted residue. Using a specially formulated solvent to dissolve the material can require lengthy soaking times and result in incomplete removal. An ultrasonic cleaner is often an excellent solution for the cleaning of these parts and the removal of the unwanted material. Ultrasonic cleaners clean quickly and clean thoroughly, even around complex shapes and in hard-to-reach places.

An ultrasonic cleaning system works by using ultrasonic waves to generate cavitation bubbles in a cleaning liquid. The bubbles form and collapse in time with the frequency of the sound waves. This bubble action results in an intense scrubbing effect wherever the cleaning liquid touches the surface of the 3D printed item. If the cleaning liquid contains a solvent for the unwanted material or if the material is soft compared to the rest of the item, only the unwanted material will be removed.



Specification Of Z-S02:



Model Z-S02(Digital Model)
Tank Material SUS304
Package Carton Box Packing
Tank size 240x135x100mm
Unit size 265x165x220mm
Carton packing Size 340x245x310mm
Ultrasonic power range 100W
timer 0~30min adjustable
Frequency 40KHz
Tank capacity 3.2 Liter
pcs/carton 1PCS/carton
N.W. 3.5kg
G.W. 4.1kg
Warranty 1 year
Certificate CE

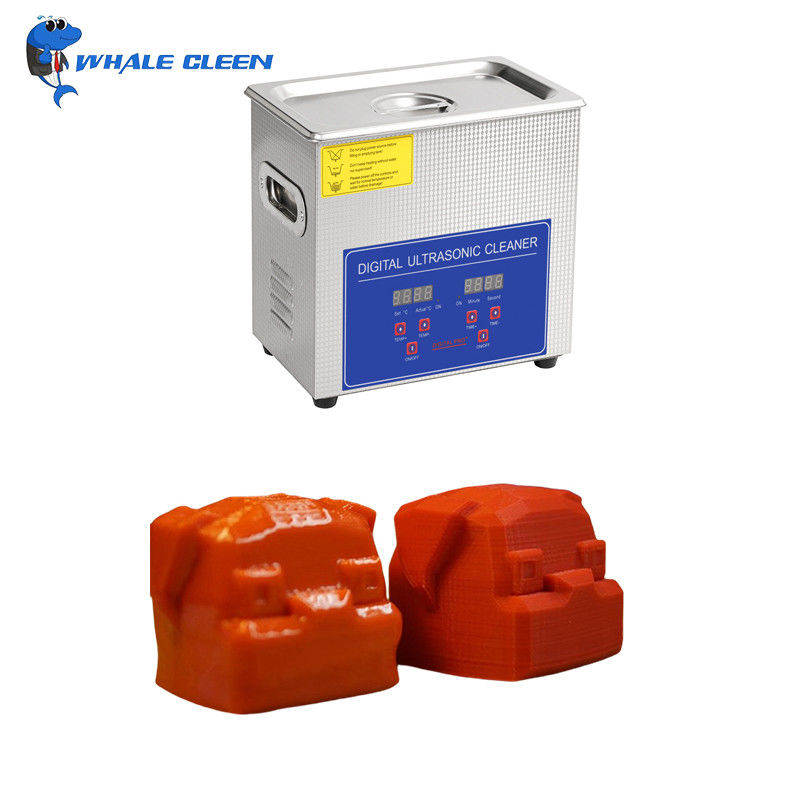

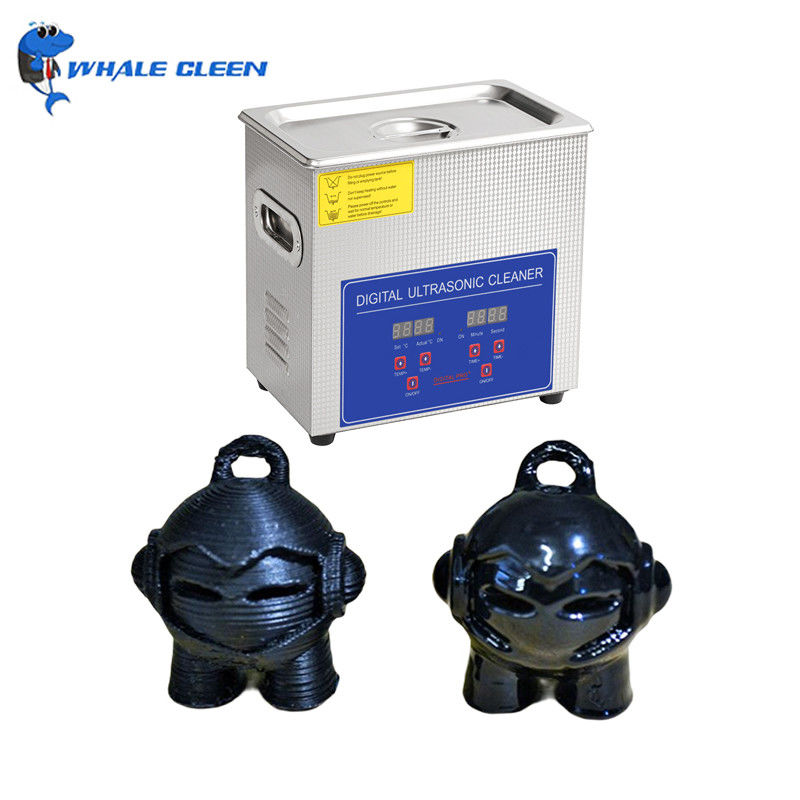

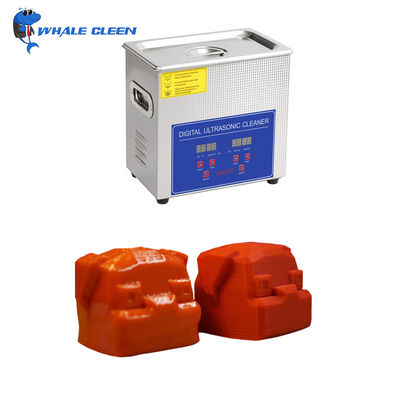

Customer's Cleaning Feedback:



40KHz 3200ml Industrial Ultrasonic Bath 1-30mins Adjustable For 3D Printed Parts 0





Advantage Of Ultrasonic Cleaning:



Even though the machine does the scrubbing for you, you're still likely to get your hands dirty because you have to remove the chain from the bike, but other than that, ultrasonic bicycle chain cleaning is almost hands-free. It's more efficient, too, allowing you to spend time on other maintenance aspects instead of hunching over a container of solvent with a brush in one hand and a dirty bike chain in the other.



FAQ:



1. How does Ultrasonic Cleaning Work?

An ultrasonic system works by inducing controlled cavitation in the cleaning fluid. Cavitation refers to microscopic voids or "bubbles" that form when the transducers emit sufficient ultrasonic energy into the fluid. The cavitation bubbles form relatively slowly and then collapse suddenly, releasing tremendous energy against the surfaces of objects immersed in the tank that ‘scrubs’ hard to remove soils from the parts.

2. Can Ultrasonic Cleaning damage parts?



Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
