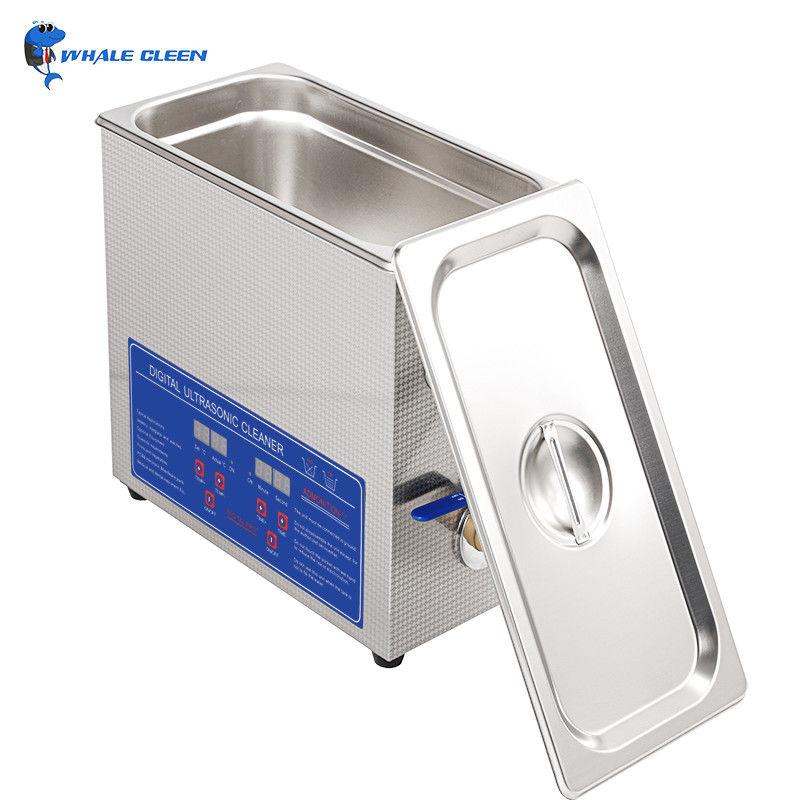

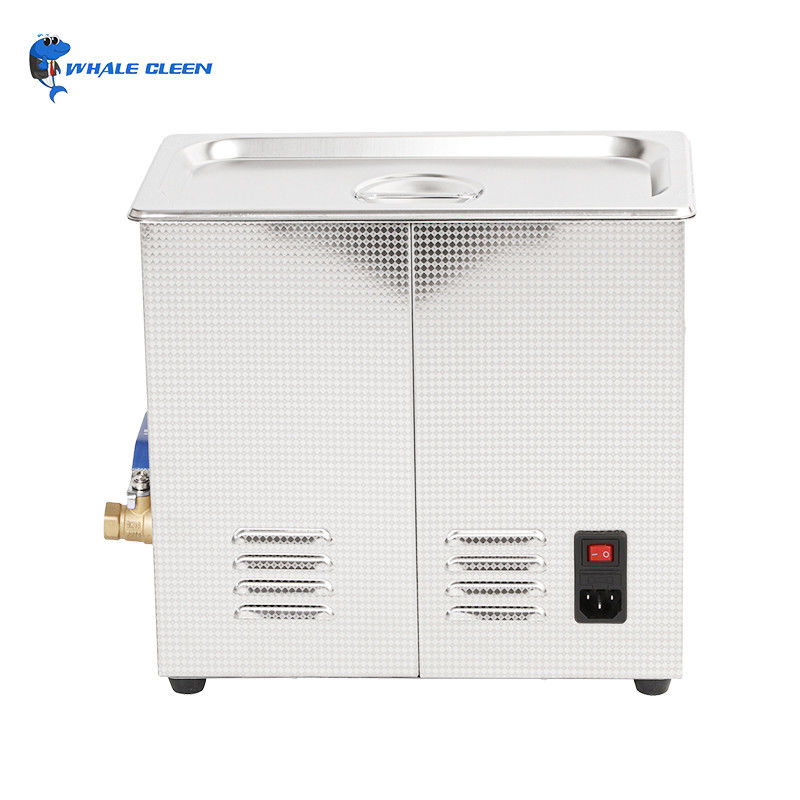

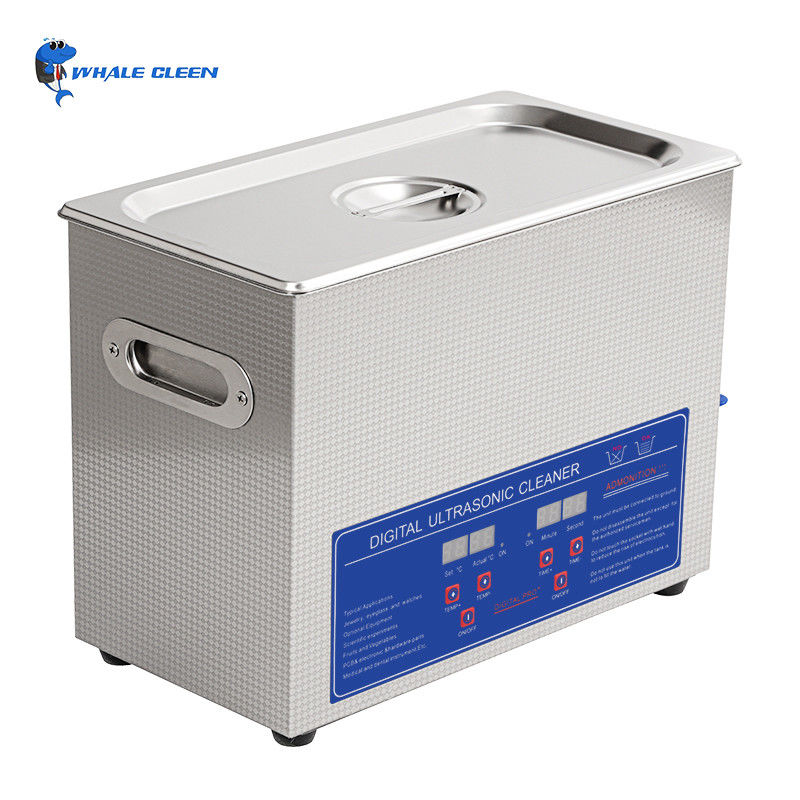

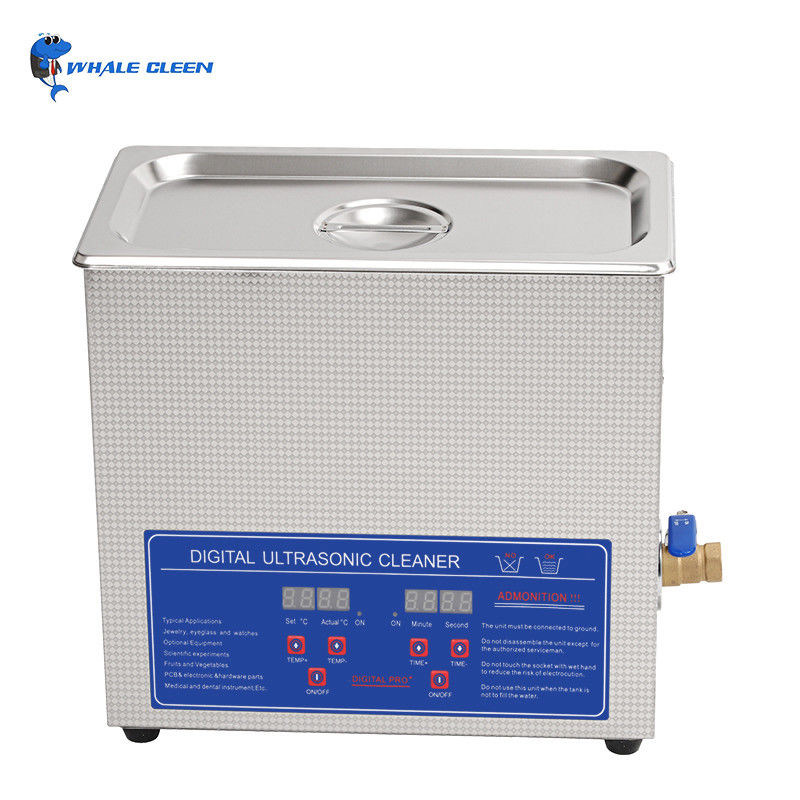

4.5KG Electronics Ultrasonic Cleaner 4.5L 150Watt For PCB Board
-
Highlight
4.5KG Electronics Ultrasonic Cleaner
,4.5L Electronics Ultrasonic Cleaner
,PCB Board Ultrasonic Cleaner Electronics
-
Tank Size300x150x100mm
-
Unit Size325x180x225mm
-
Packing Size410x255x310mm
-
Gross Weight5.6KG
-
Net Weight4.5KG
-
Cleaning Power150W
-
Product NameUltrasonic Circuit Board Cleaner
-
Timer0~30mins
-
Place of OriginChina
-
Brand NameWhale Cleen
-
CertificationCE, Rohs
-
Model NumberZ-X03
-
Minimum Order Quantity5 units
-
PriceNegotiable
-
Packaging DetailsCarton Box Packing
-
Delivery TimeDepends On Your Quantity
-
Payment TermsT/T
-
Supply Ability3000 Units Per Month
4.5KG Electronics Ultrasonic Cleaner 4.5L 150Watt For PCB Board
4.5L 150Watt Ultrasonic Cleaner Electronics With Heater For PCB Board
Why You Need Ultrasonic Cleaner Electronics?
Whale Cleen sonic ultrasonic cleaners are an essential part in the circuit board and electronics assembly process. Whale Cleen sonic ultrasonic cleaners help to improve SIR test results, reduce rework, and contribute to in-use PCB reliability. Durable stainless steel construction, an unconditional 1-year warranty, and industry-recognized customer service make Whale cleen sonic ultrasonic cleaners a cost saving step in circuit board assembly and electronics manufacturing.
Related Model Specification
Please find suitable model for your cleaning job below:
| Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| Z-S008 | 150x85x65 | 175x110x125 | 0.8 | 30 | 30 | 40 | no | 1-30 | no |
| Z-S01 | 150x135×100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
| Z-S02 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 | |||
| Z-S03 | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 | |||
| Z-S031 | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 | |||
| Z-S04 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 | |||
| Z-S06 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 | |||
| Z-S08 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 | |||
| Z-S10 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |

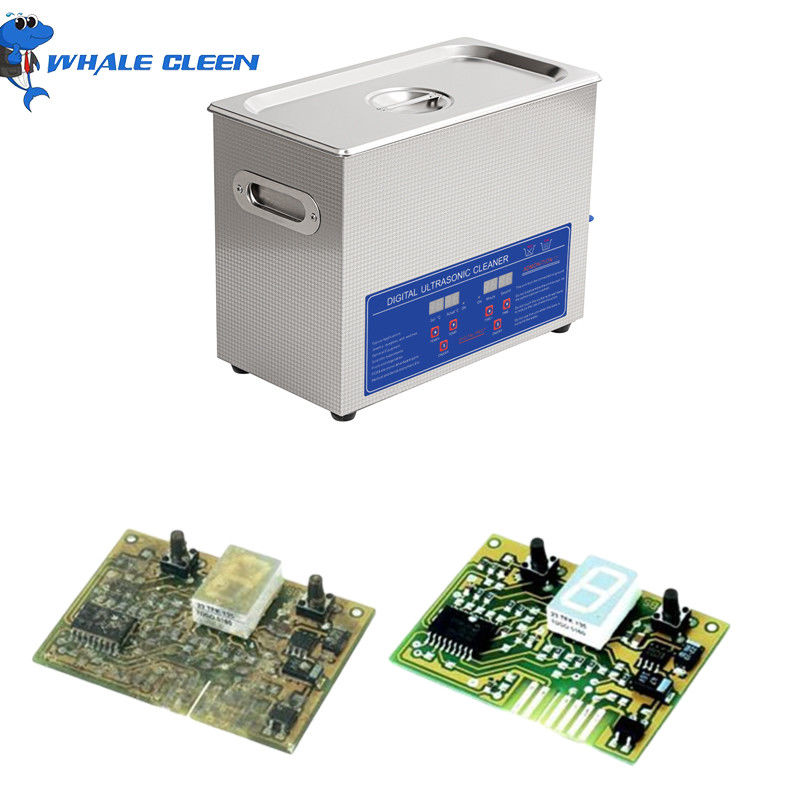

Cleaning Feedback:
How It Works?
Ultrasonic cleaning machines use high-frequencies to cause cavitation; the implosion of billions of minute bubbles in the cleaning solution contained in an ultrasonic cleaner tank. The bubbles are created by transducers bonded to the bottom of the tank and excited to ultrasonic frequencies by generators. The implosion of these bubbles blasts away contaminants on the surface of parts being cleaned.
Ultrasonic can be defined as sound waves that have frequencies above the upper limit of the normal range of human hearing, which is about 20 kilohertz (20 kHz or 20,000 cycles per second). While that is true, ultrasonic cleaners when operating can be heard due to the action created by what we call ultrasonic cavitation.
How To Clean With Ultrasonic Cleaner?
s it recommended not to clean Circuit Boards (PCB) manually with a cleaning brush as this can damage the components, the best solution is to use an ultrasonic cleaner following this process. A wash cycle time of 60 minutes is required to fully clean the PCB, dunking after 30 minutes is recommended to help move debris sitting on the part. Rinsing is an important stage as to insure the cleaning agent dose not etch or damage the PCB. Recommended rinse cycle of 5 minutes. A drying cycle time of 10 minutes at 65°C
% Satisfactorily Cleaned: 100%.
Etched effect: None
Discount Policy:
If you are the first customer of whale cleen sonic, you will get US$50 coupon when your purcahse amount over US$500.More discount information,please contact our sales man for more detail.
Our products are sold all over the world, you can rest assured.
