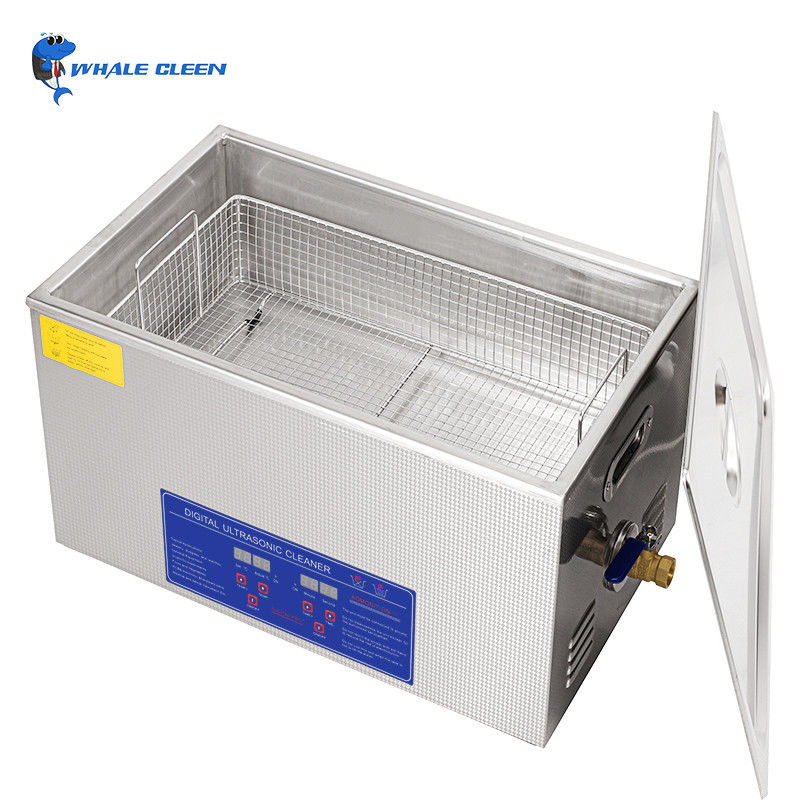

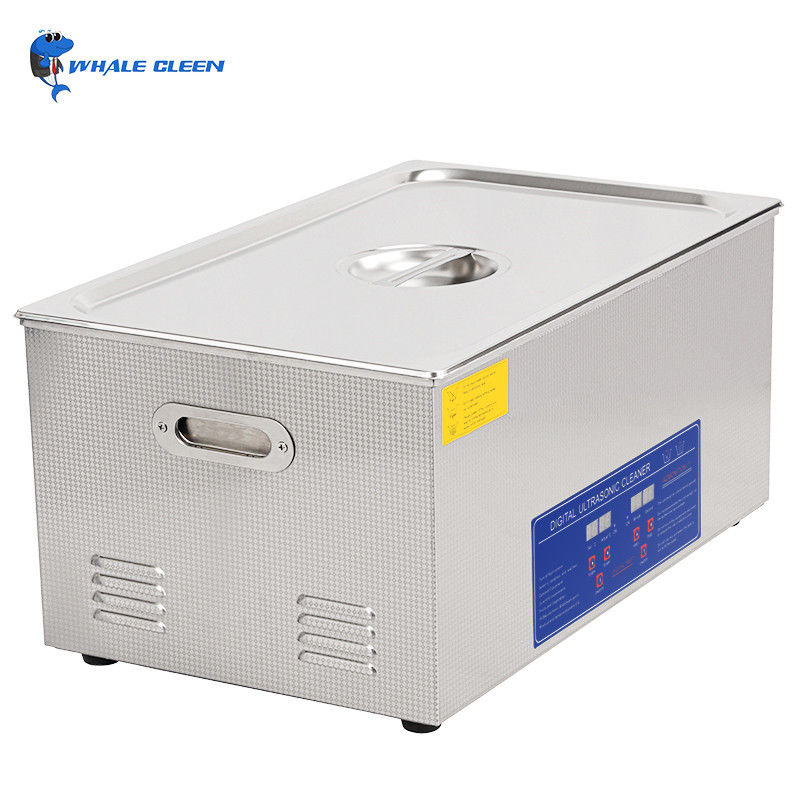

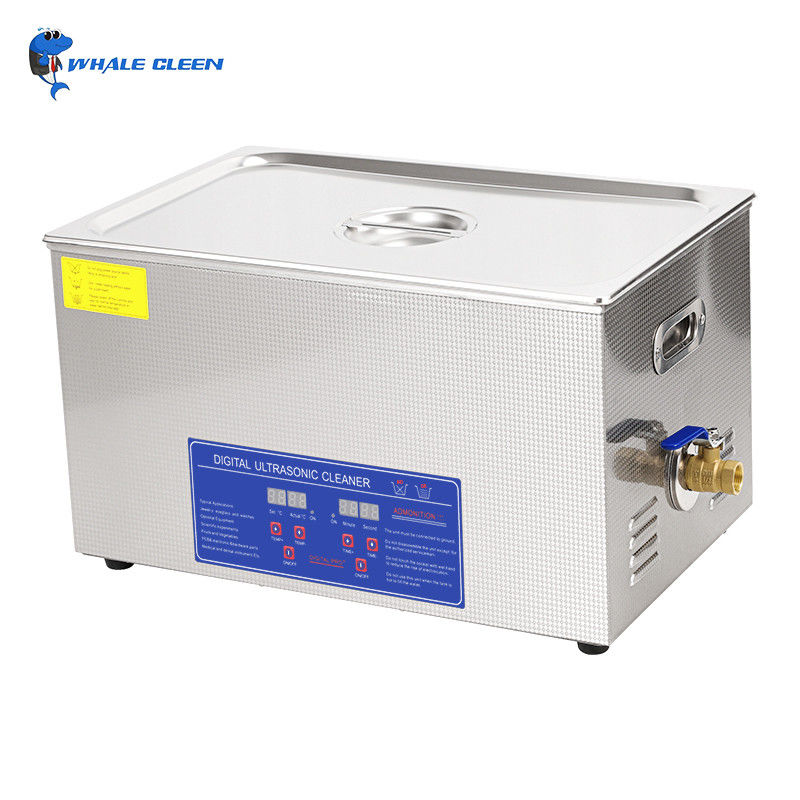

Digital Control PCB Ultrasonic Cleaner 22L With 600W Heat Power

22L 600W Heat Power Ultrasonic Circuit Board Cleaner With Digital Control

How Whale Cleen sonic Ultrasonic Circuit Board Cleaner Work?

Ultrasonic cleaner for circuit boards and the technology works on the rule of cavitation that occurs when small microscopic bubbles formed, falls violently on the cleaning surface. Consistent creation and falling in of the bubbles work as a scrubbing agent, which in turn cleans the product.

Majority of the people have the wrong credence that the PCBs should not be immersed in fluid; however it is not right.

For effective cleaning results, PCB or electronic part (to-be cleaned) should be immersed in the tank filled with cleaning solution. Later these should be cleaned in proper chemical cleaner with water and dried up appropriately for safer outcomes.

The ultrasonic parts cleaner machine operates at the frequency of 20-400 Khz allowing safe cavitation cleaning action that reaches all parts of the surface for cleaning the PCB.

The overall process hardly takes 10-15 minutes and saves your lot of time and money since you can own this machine at a very affordable price online.

Furthermore, one can rest assure about the protection of their electronic parts as most of the units are provided with “auto sweep” function that eliminates any potential damaging that other way could be possible.

You can also use the cleaner to clear PCBS after wave bonding, so you can easily begin after the bonding procedure. However, ensure that you permit the boards to cool less than 70 degree before beginning the cleaning process.

Detail Information Of Z-S08:

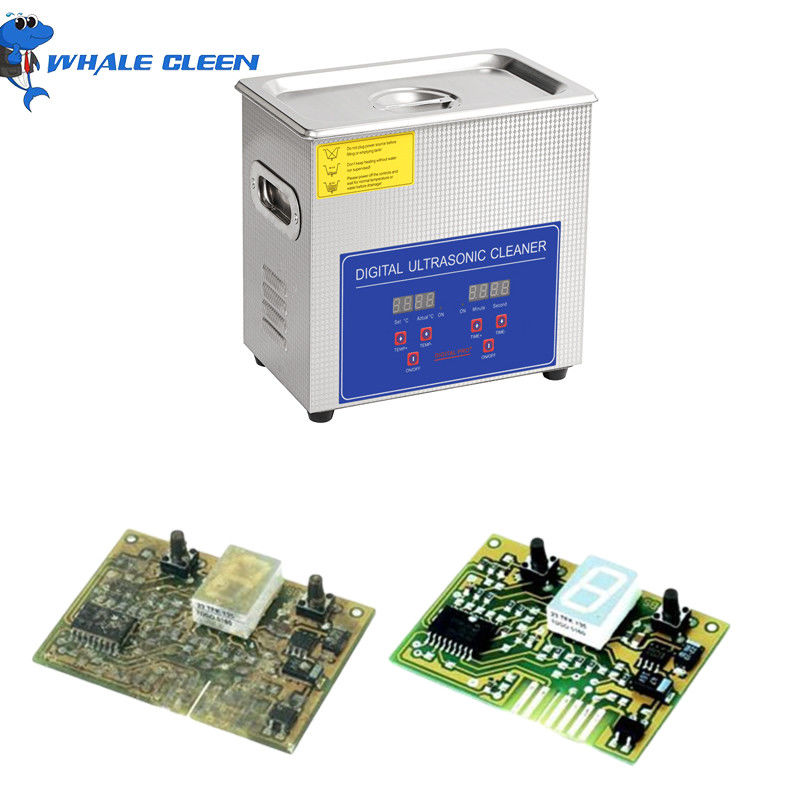

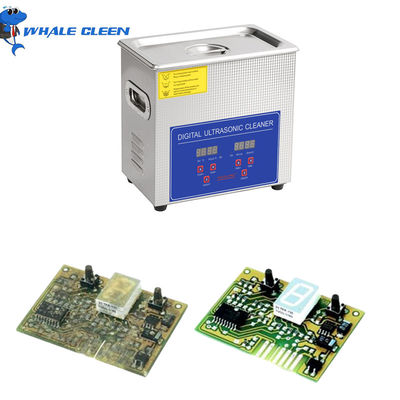

Cleaning Effect:

Some Suggestions:

A fresh batch of ultrasonic cleaning solution contains entrapped air. You can see evidence of this by the bubbles that appear on the inside of a glass of water standing at room temperature. This air interferes with the cavitation process and must be driven off before you begin the cleaning operation. To do this

• add water and the correct portion of cleaning concentrate to the tank’s fill line

• set the temperature dial

• turn on the ultrasonic cleaner to start the degassing operation

The rising temperature coupled with the cleaning chemicals and ultrasonic energy will speed the degassing operation and at the same time thoroughly mix the contents of the tank.

When air bubbles no longer rise to the surface you are ready to clean the parts. Place them in the mesh basket, taking care to keep them from contacting each other. Lower the basket into the cleaning solution and set the timer.

As you become experienced with ultrasonic cleaning PCBs and other electronic components you’ll become more proficient and efficient. The scientists at Tovatech are ready to help you reach this goal by selecting the ultrasonic cleaner model, frequency, power and cleaning solution that meets your requirements.
