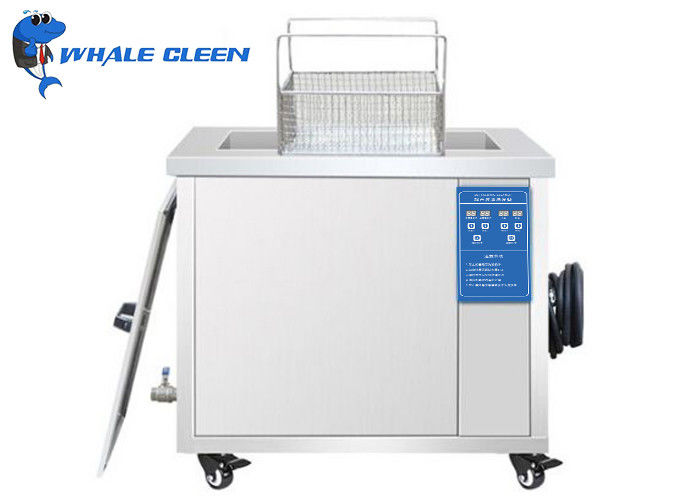

Aircraft Parts Ultrasonic Cleaning Machine 135L AC220V 380V 3phases

Aircraft Parts Ultrasonic Cleaning Machine 135L AC220V 380V 3phases

  • Highlight

    Aircraft Parts Ultrasonic Cleaning Machine

    ,

    135L Ultrasonic Cleaning Machine

    ,

    AC220V Ultrasonic Bath Machine

  • Material
    SUS304 Or SUS3016 Can Be Chosen
  • Cleaning Process
    Ultrasonic Cleaning And Drying
  • First Tank Size
    600*500*450mm
  • Second Tank Size
    600*500*450mm
  • Ultrasonic Power
    0~1800W
  • Drying Power
    4500W
  • Tank Capacity
    135L For Each Tank
  • Product Name
    Ultrasonic Washing Machine
  • Place of Origin
    China
  • Brand Name
    Whale Cleen
  • Certification
    CE, Rohs
  • Model Number
    Z-X36
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Packing
  • Delivery Time
    Depends On Your Quantity
  • Payment Terms
    T/T
  • Supply Ability
    300 Units Per Month

Aircraft Parts Ultrasonic Cleaning Machine 135L AC220V 380V 3phases


135L 1800W Whale Cleen Sonic Cleaning Machine For Aircraft Parts With Double Cleaning Tank


Why You Need Whale Cleen sonic Sonic Cleaning Machine For Aircraft Parts?

Aerospace parts present unique difficulties for cleaning. Not only do they get covered with difficult-to-remove carbon buildup and grime, but many parts also present intricate surfaces as well as delicate components. All of these factors together make aerospace parts particularly challenging when it comes to cleaning them thoroughly without damaging them. Ultrasonic cleaning to the rescue.

Specification Of z-x36 And Other Related Model:

Model

Z-X24

Z-X36

Z-X72

Clean tank size

550*400*350

600*500*450

1000*600*600

Dry tank size

550*400*350

600*500*450

1000*600*600

Tank capacity

77L each

135L each

360L each

Transducers

24

36

72

Clean tank Ultrasonic power

1200W

2400W

3600W

Dry tank Heating power

3000W

4500W

9000W

Dry tank Heating power

2600W

3000W

4500W

Capacity

28KHZ/40KHZ

Tank material

304/316SUS

Tank thickness

2MM

Timer

1S-99hours adjustable/Normally open

Heater

20-95c adjustable

Drain valve

1 inch

Basket & Lid

standard equipped

Machine Voltage

AC 220V/380V, 3phases

Generator voltage

AC 110V/220V, 1phase

Features

1.with filtration system 2.with casters with brake 3.1 year warranty & tech support for life

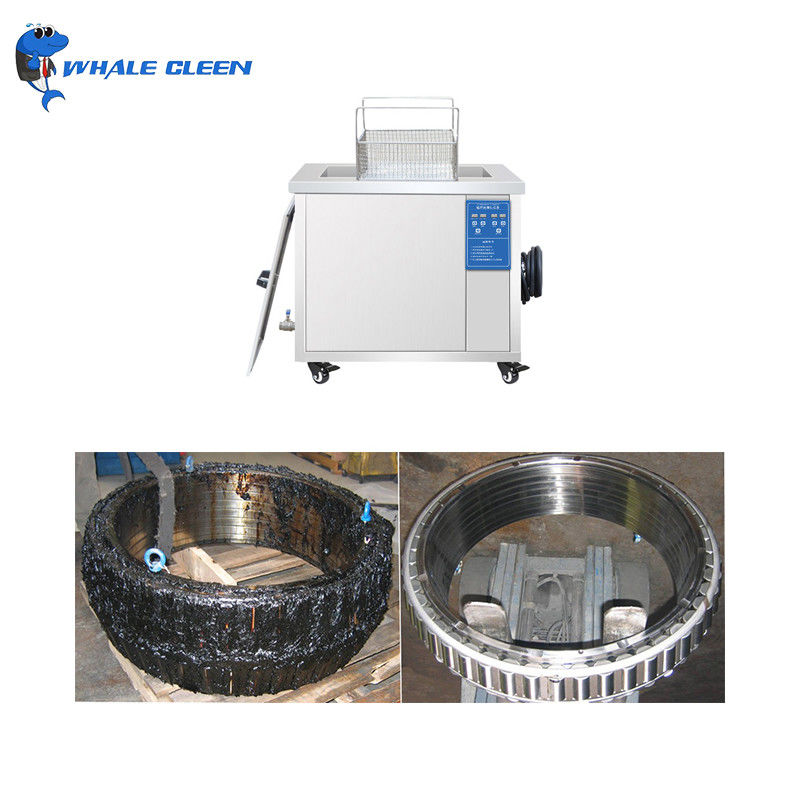

Cleaning Effect:

Aircraft Parts Ultrasonic Cleaning Machine 135L AC220V 380V 3phases 0

How It Works?

An object only needs to meet two “eligibility requirements” for ultrasonic cleaning: It needs to be immersible and able to be dried relatively easily.
When ultrasonic waves travel through liquid and meet a solid surface, they create millions of microscopic bubbles on the surface of the item in a phenomenon called cavitation. As these bubbles form and collapse, they blast away contaminants. So the items need to be submerged, but it also means areas a human worker or spray washer would have great difficulty reaching are scrubbed spotless.
As for “relatively easy” drying, most items meet this requirement unless they are especially absorbent. Anything that can be air dried (with or without a blower) can be cleaned ultrasonically.
That leaves us with an immense list of cleanable objects, encompassing everything from nuclear waste cleaning robots to jewelry.

Discount Policy:

If you are the first customer of Whale Cleen sonic, you will get US$50 coupon when your purcahse amount over US$500.More discount information,please contact our sales man for more detail.


FAQ:
1. What cleaning solution should I use?
A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
2. How about after sales services?
One year warranty for for all ultrasonic cleaners.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
3. Why is it important to use my tank at the correct temperature?
Heating the tank will give better results to cleaning and also speed up the process – most solutions will need to be related to perform as designed. The optimum temperature setting for the unit should be industrial on the solution packaging.
