Musical Instrument Mechanical Ultrasonic Cleaner 10L SUS304 Tank With Heater

Musical Instrument Mechanical Ultrasonic Cleaner 10L SUS304 Tank With Heater

  • Highlight

    Musical Instrument Mechanical Ultrasonic Cleaner

    ,

    Mechanical Ultrasonic Cleaner 10L

    ,

    SUS304 Ultrasonic Cleaner 10L

  • Tank Material
    SUS304
  • Tank Size
    30x24x15cm
  • Unit Size
    32.5x26.5x28cm
  • Packing Size
    43.5x36x35cm
  • Time Control
    0~30mins Adjustable
  • Temperature Range
    20-80C Adjustable
  • Product Name
    Ultrasonic Washer
  • Capacity
    10Liter
  • Place of Origin
    China
  • Brand Name
    Whale cleen
  • Certification
    CE, Roth
  • Model Number
    Z-04
  • Minimum Order Quantity
    2 Units
  • Price
    Negotiable
  • Packaging Details
    Carton Box Packing
  • Delivery Time
    Depend On Quantity
  • Payment Terms
    T/T
  • Supply Ability
    20000 Units Per Month

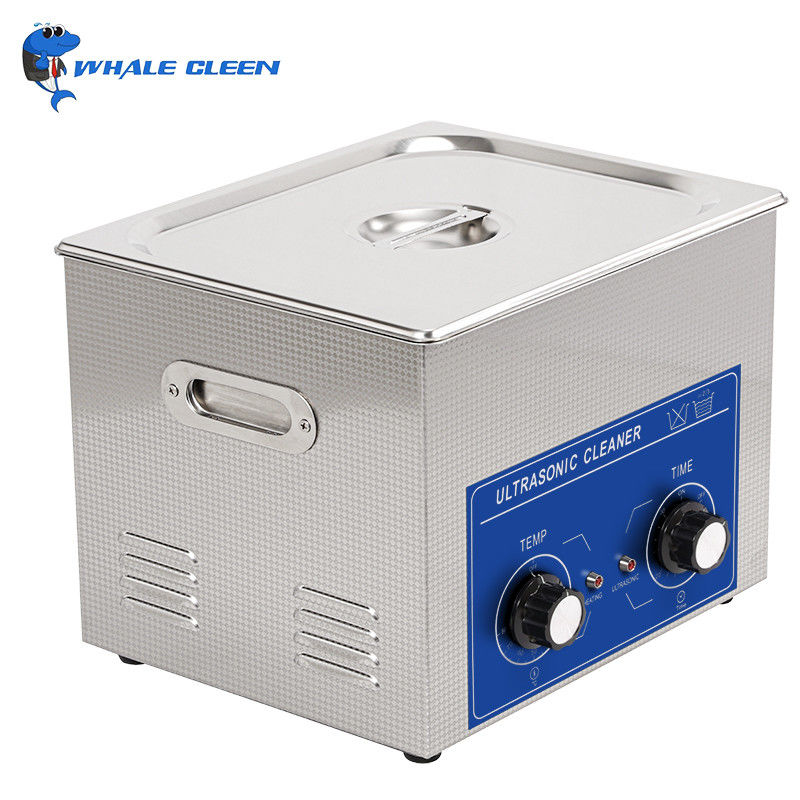

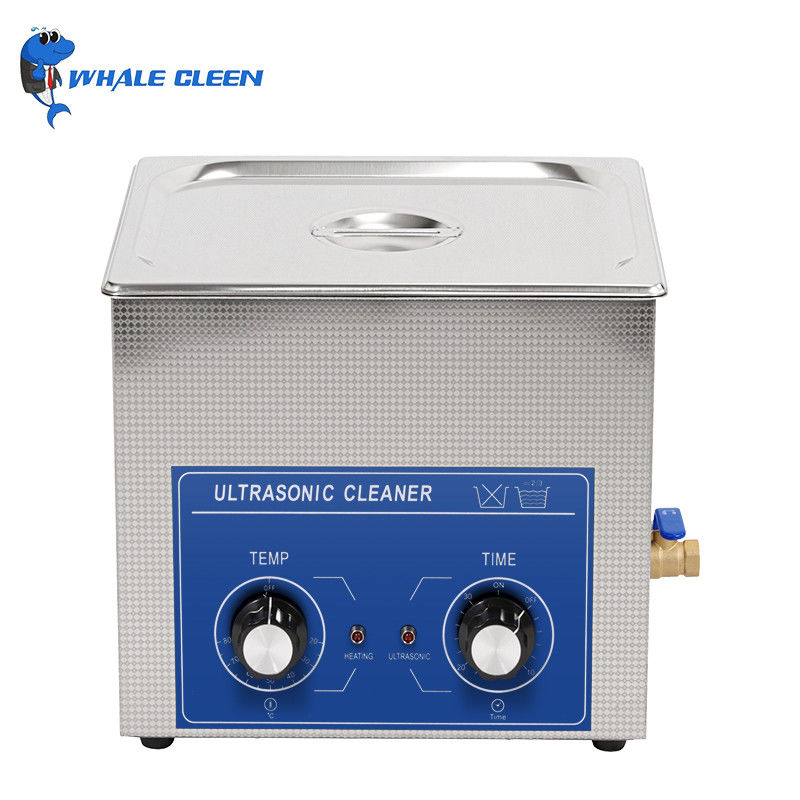

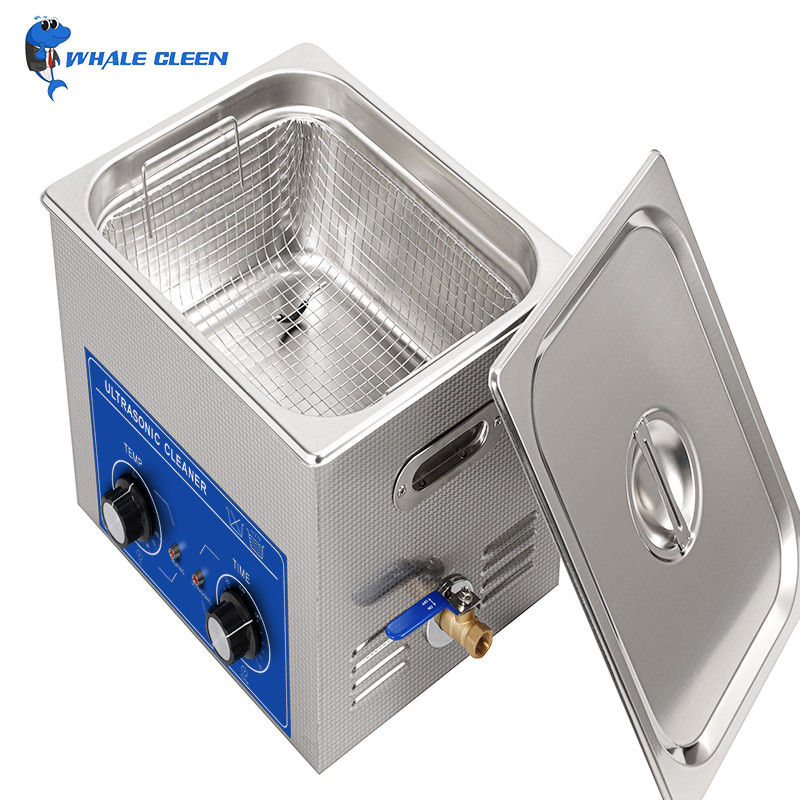

Musical Instrument Mechanical Ultrasonic Cleaner 10L SUS304 Tank With Heater



10L 200W Mechanical Ultrasonic Cleaner For Musical Instrument With Heater

How Whale Cleen sonic Mechanical Ultrasonic Cleaner Works?

Whale Cleen sonic supplies ultrasonic cleaning equipment in both standard units for small scale operations and custom configured large scale units for inline operations and stand alone high volume production.
Ultrasonic cleaning is a process that uses ultrasound (usually from 20–400 kHz) and an appropriate cleaning solvent to clean items from any oils, greases and other manufacturing residue. The ultrasound is used with an appropriate solvent for the item to be cleaned and the type of soiling present. Cleaning normally lasts between three and six minutes, but can also exceed 20 minutes, depending on the object to be cleaned.

Specification Of z-04:

Model z-04
Ultrasonic Frequency 40,000 Hz
Tank Material SUS304
Tank Capacity 10 L
Timer 1-30minutes ,Mechanical timer
Power Supply AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz
Ultrasonic Power 200W
Heating Power 450 W , Mechanical Heating
Unit Size 325x265x280  mm ( L x W x H )
Tank Size 300x240x150  mm ( L x W x H )
Package Size 435x360x350  mm ( L x W x H )
N.W. 7.4 kg
G.W.

8.5 kg




Specification Of Related Model:

If this model is not suitable for you, please check other in below chart.



Model Tank size Unit size Volume Actual ultrasonic power Rated ultrasonic power Ultrasonic frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (W) (kHz) (W) (MIN) (℃)
z-02 240x135x100 265x165x220 3.2 100 120 40 150 1-30 0-80
z-03 300x150x100 325x180x225 4.5 150 180 300
z-031 300x150x150 325x180x280 6.5 150 180 300
z-04 300x240x150 325x265x280 10.8 200 240 450
z-06 330x300x150 360x325x285 15 300 360 450
z-08 500x300x150 530x325×285 22 400 480 600
z-10 500x300x200 530x325x325 30 500 600 600

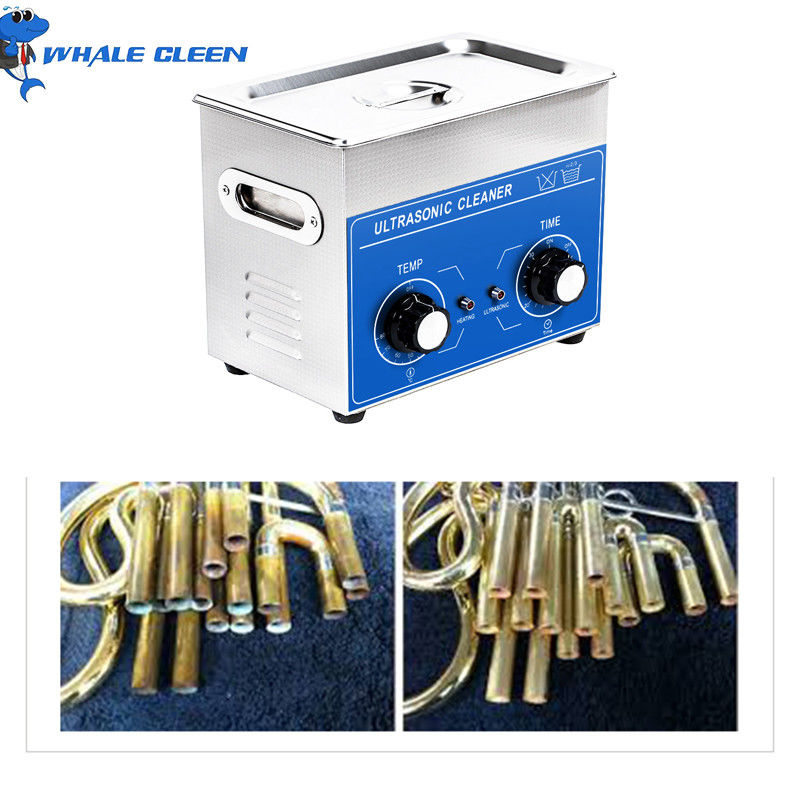

Customer's Cleaning Feedback:

Musical Instrument Mechanical Ultrasonic Cleaner 10L SUS304 Tank With Heater 0

How To Clean Musical Instrument With Mechanical Ultrasonic Cleaner?

Most instruments that are brass will need to be inspected to determine if lacquer is already starting to peel off. The older the instrument is, the more likely you will see this. If it is peeling, temperature and intensity need to be kept low to avoid further damage. For other metal instruments, the temperature of cleaning should usually remain at room temperature.Before cleaning, instruments should be disassembled as much as possible. Remove all slides and buttons. If you find these parts are stuck, go ahead and clean the whole instrument in the machine for a minute, pull it out, and see if you can then loosen these parts enough to disassemble them. Then place all parts back in the machine for another 2-3 minutes. Note that you do not have to remove the felt or leather pads prior to cleaning, but if these need replacing, it’s best to go ahead and remove them at this time.Clean in stages: Pre-wash, Ultrasonic Wash, Rinse and Dry
For best results, pre-wash your instruments in a high alkaline cleaning solution. This will remove oil, dirt and other build up. For the Ultrasonic Wash, you should use an acidic, descaling solution to work on the build up (from saliva) frequently seen on brass instruments.
