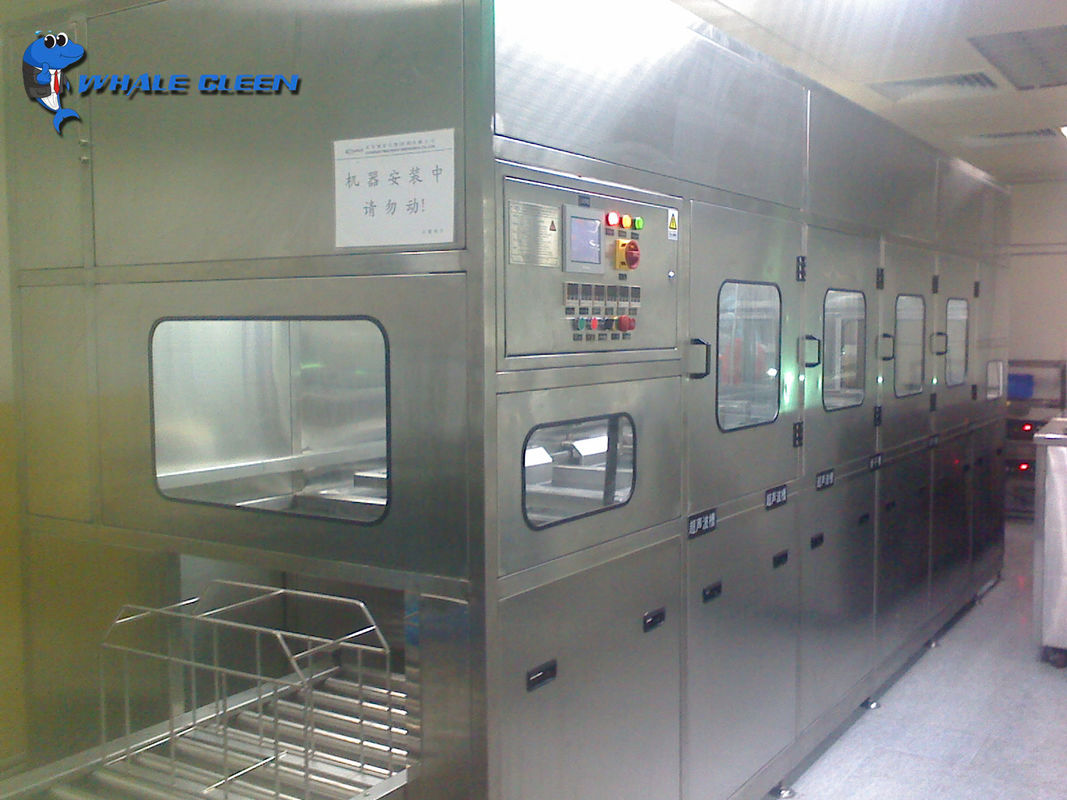

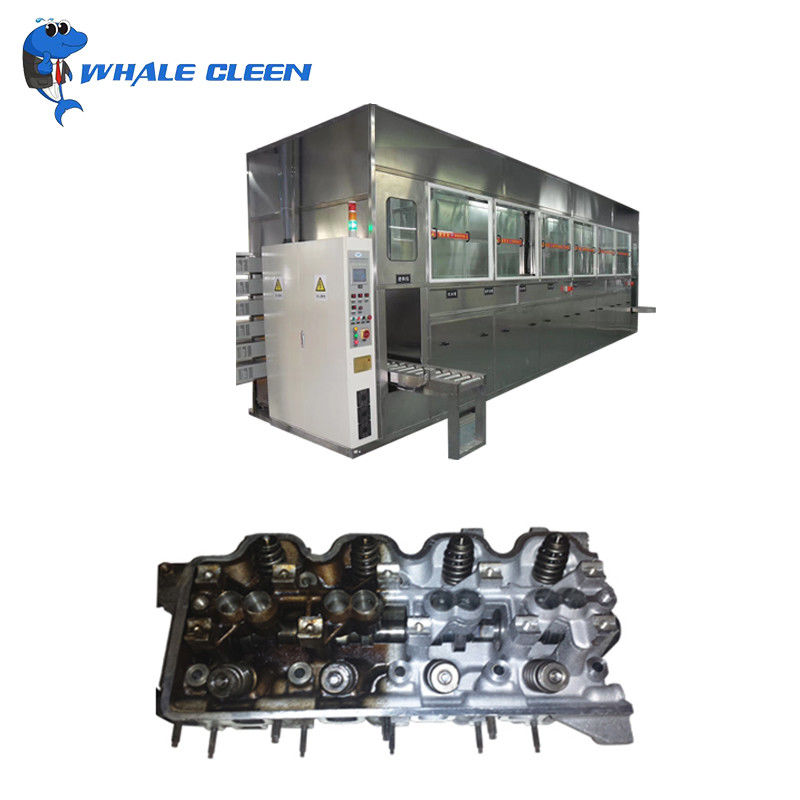

Multi Stage Industrial Ultrasonic Cleaner Fully Automated For Electronics Part

Fully Automated Multi-stage Industrial Ultrasonic Cleaner For Electronics Part

After Sales Service:

We will provide installation and test service for automatical cleaning line at your facility until cleaning is working properly.

And we offer 5 years with 24/7 work warranty period.

Quality Control:

We are using hight quality material like Simens, Schneider electrical parts. Our machine is designed by experienced engineer who have designed machines for Foxconn, Cummins and BOSCH. The workers also have years experience building automatical cleaning line. Our QC system is covering from raw material to finishing machine.

Experience:

We have worked with many famous brand company and goverment project like Foxconn, Cummins and railway department. We also have years international experience with installating and testing machine in other country. We will provide full service for our customer after purchasing.

Payment Term:

We can accept flexible payment term due to different situation like 10~20% payment after installation and test service.

We also need some support from you in some case.

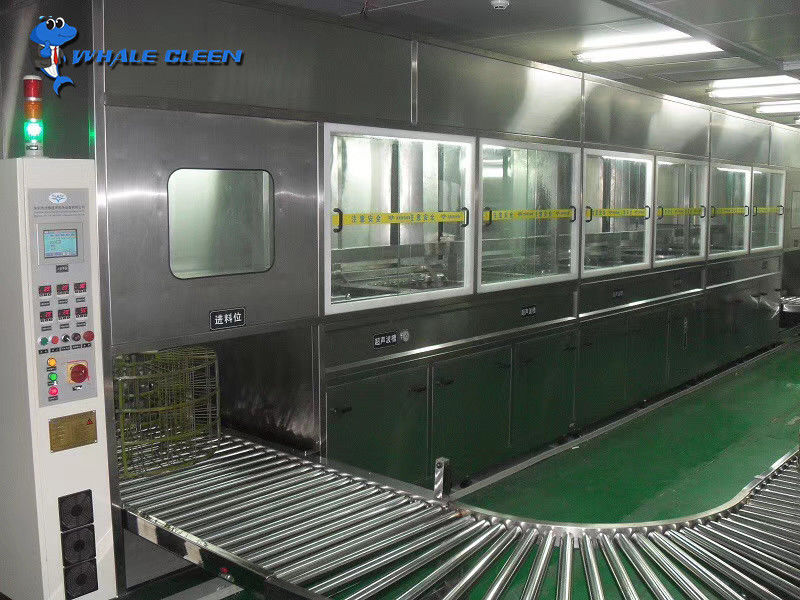

Automated Gantry System:

Rack and pinion style. Capable of different recipe programs and capable of skipping stations. Load and unload stations equipped with conveyor feed in-axes with machine.

Fast moving automation platform available, and includes features not included with any competitive equipment.

Smallest most compact automation platform available. System arrives FULLY PROGRAMMED with turn-key operation. No programming other than recipe data will be required. System also includes the following features:

· Single or Dual position load and unload platform

· 3-color Light tower to indicate operating condition of system from a distance

· Automation Direct touch-screen (AB optional)

· Automation Direct PLC control system (AB optional)

· 9 processing baskets

· Random Recipe Processor: Operators can add different parts with different recipes at any time. Other systems must process all baskets in queue with the same recipe. The system allows any basket with any recipe to be added at any time.

· 100 pound load capacity

· Capabilities of loading and unloading inline at both ends with customers load/unload station.

· Conveyor Belt access points / PLC Hand shake
