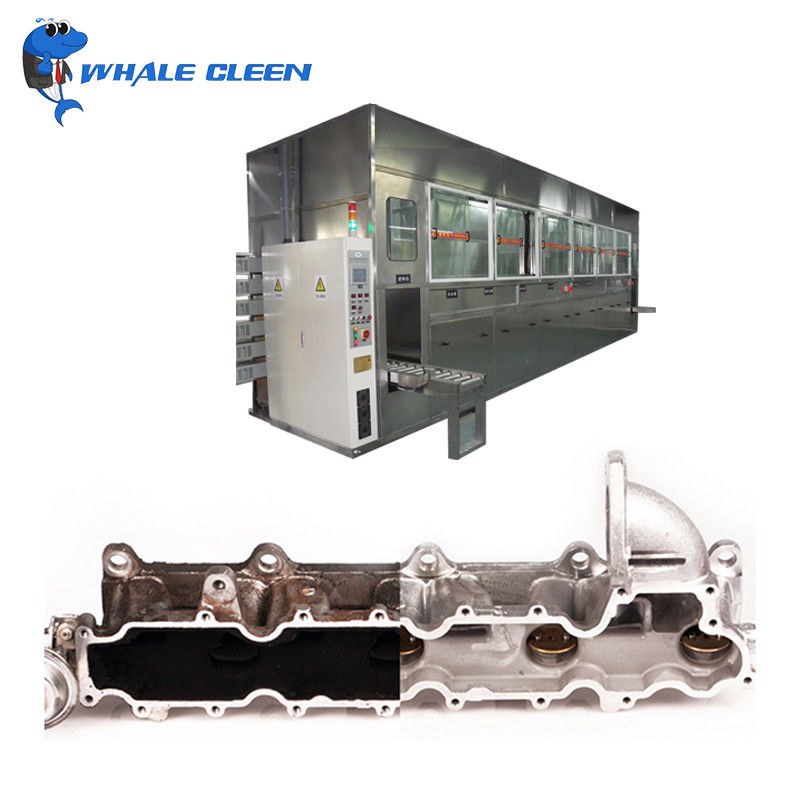

Mechanical Arm Automatic Ultrasonic Parts Cleaner With Filtering Circulation System

Mechanical Arm Type Automatic Ultrasonic Cleaning Machine For Wafer 2.4KW Ultrasonic Power

Product Features:

1, imported material: imported material accessories, reliable performance.

2, easy to operate: easy to operate.

3, automatic manipulator: Manipulator can choose single-arm, double-arm, multi-arm automatic control operation, in turn or synchronous delivery of cleaning workpiece.

4, closed structure: the whole machine adopts full-sealed structure, safe and pollution-free.

5. Circulating and filtering system: the equipment has the filtering circulation system, the automatic temperature control system, the hot air circulation drying system, the replenishment, the drainage system, the absorption fog recovery device and so on.

This product support non-standard custom, can provide design drawings and cleaning program

Product details:

Blue whale wafer with robotic arm fully automatic ultrasonic cleaning machine,

mainly by: mechanical transmission system, ultrasonic system, heating system, drying system, water supply and drainage system and electrical control system composed of six parts, generally using PLC control, easy to operate, the working state of the on-line monitoring system for setting parameters and process flow can be conveniently adjusted by modifying the program, can automatically complete the rough washing, spraying, spraying, hot soaking, rinsing, bubbling, drying and other processes, greatly saving manpower, improve efficiency.

The equipment is a water-based cleaning machine, which adopts suspension transportation and consists of multi-position functional tanks to form a continuous cleaning production line to remove the oil, dust, debris and other attachments on the workpiece to obtain a clean workpiece, to make the workpiece meet the specified process requirements.

This equipment is a precision cleaning equipment, it is the use of water-based cleaning agent on the need to clean the precision of the workpiece. According to the requirements of cleaning process, low alkaline cleaning solution can be prepared with clean water. Make water activation (saponification) , reduce the surface swelling force of water and improve its activation ability, so as to attach to the surface of the workpiece oil, dust, debris, etc. wet, penetrate to the surface of the workpiece and be cleaned, to get a satisfactory degree of rinsing.

Applications:

Blue whale wafer with robotic arm fully automatic ultrasonic cleaning machine,mainly used in machinery, electronics, jewelry, optics, medicine, painting, steam and vacuum coating pre-treatment and other related categories. For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust and oxide on the surface of the parts, and realize one-stop processing of cleaning, spraying and drying.

Detail Information Of z-x 48:

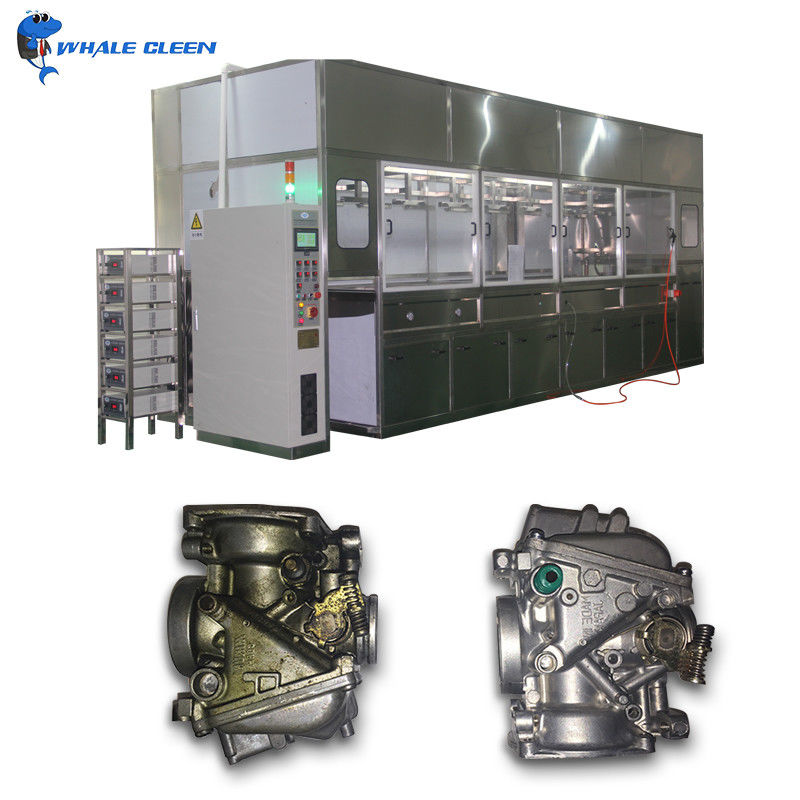

Cleaning Effect:

Introduction Of Ultrasonic Cleaner Theory:

Cavitation is the key factor of ultrasonic cleaner theory. Cavitation is caused by fast crack of millions of bubble in a very short time. This process will be generated when ultrasonic wave(Vibration over 20KHz) came into cleaning liquid. When cavitation happen, it will generate strong pressure on the surface of cleaning parts which can take away the dirt in micro type.

FAQ:

1. What is Ultrasonics?

The science of ultrasonics is the study and application of mechanical vibrations above the range of human hearing—typically greater than 18,000 HZ.

2.  What are the advantages of ultrasound over traditional cleaning methods?

minimize the use of manual labor

make cleaning and degreasing without the use of organic solvents

clean hard to reach areas of products and remove all types of dirt

shorten the processes such as extraction, dispersion, purification, chemical reactions

eliminates costly mechanical and chemical cleaning of heat exchangers

3. What cleaning solution should I use?

A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.

4. Can ultrasonic cleaning damage parts?

Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
