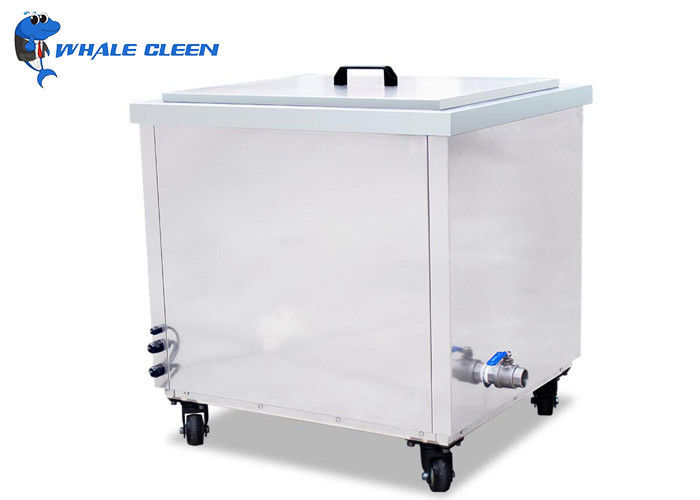

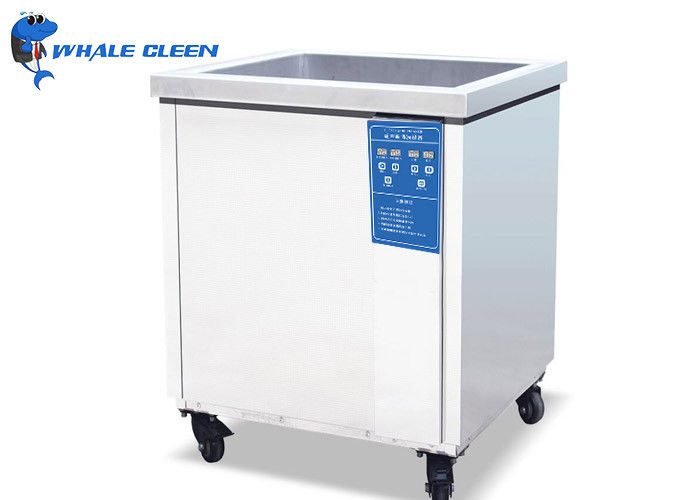

38L Single Tank Ultrasonic Cleaner 20-95C Heater For Window Shades Jelwery

38L Single Tank Ultrasonic Cleaner 20-95C Heater For Window Shades Jelwery

  • Highlight

    SUS304 Single Tank Ultrasonic Cleaner

    ,

    40000Hz Jelwery Frequency Ultrasonic Cleaner

    ,

    Adjustable Heater Single Tank Ultrasonic Cleaner

  • Tank Size
    400x300x300mm
  • Tank Capacity
    38L
  • Ultrasonic Power
    500W
  • Heating Power
    1500W
  • Frequency
    40000Hz
  • Timer
    1-99H
  • Fuel
    Electric
  • Place of Origin
    China
  • Brand Name
    Whale cleen
  • Certification
    CE, Rohs
  • Model Number
    Z-X12
  • Minimum Order Quantity
    2 units
  • Price
    Negotiable
  • Packaging Details
    Wooden case packing
  • Delivery Time
    Depends On Your Quantity
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000 units per month

38L Single Tank Ultrasonic Cleaner 20-95C Heater For Window Shades Jelwery



 Ultrasonic Cleaner 38L Single Tank Remove Dust Grease from Window-shades Jelwery Glasses Watches


1. How Does Ultrasonic Cleaner Work?



1). Ultrasonic Cleaning Systems are based on high-frequency sound waves which are transmitted through a flowing liquid where the piece to be clean is submerged. Treatment takes between 10 and 45 minutes, but no operator presence is needed.

2). Ultrasonic waves produce cavitation, in which millions of gas bubbles are generated into the liquid, and then compressed until they implode, releasing huge amounts of energy. This energy hits the dirt, grease or carbon dust over the surface of the objects to be cleaned, removing it without damaging the piece.

3).  The result is a micro-brushing phenomenon which cleans the pieces treated. As gas bubbles are only 1 um, they penetrate into every orifice, making Ultrasonic Cleaning best system for highly complex components in any kind of material (cast iron, steel, aluminium, copper, brass, titanium, bronze, some plastics & rubbers, ....).


2. Product Specification:

We have two standard model,please check specification below:

If you need to customize your own size, please do not hesitate to contact our sales man.

Model

Z-X12

Z-X16

Tank size

400x300x300

400x350x350

Tank capacity

38L

53L

Timer

3/4min automatic off

Ultrasonic power

500W

800W

Heating power

1500W

1500W

Transducers

12

16

Capacity

40KHZ/28KHZ

Material

SUS304/SUS316L

Voltage

AC 110V/220V

Features

1. With token operated and counter
2. With handle and casters

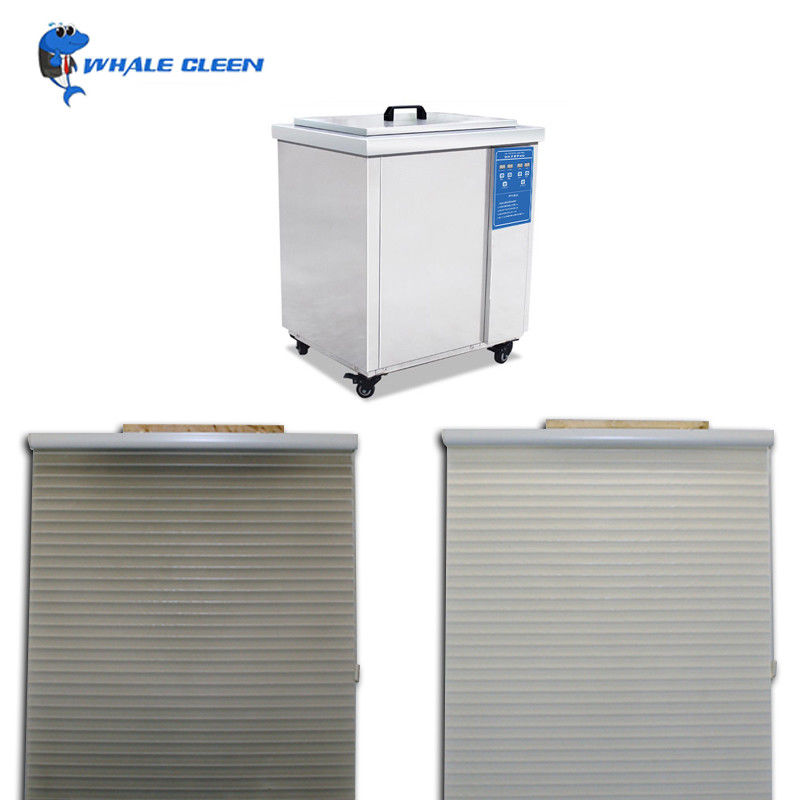

3. Cleaning effect:


38L Single Tank Ultrasonic Cleaner 20-95C Heater For Window Shades Jelwery 0

38L Single Tank Ultrasonic Cleaner 20-95C Heater For Window Shades Jelwery 1

4. Packing Method:



38L Single Tank Ultrasonic Cleaner 20-95C Heater For Window Shades Jelwery 2


5. FAQ:

1. Why is Ultrasonic Cleaning so Efficient and Effect?
A: When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.

2. Can ultrasonic cleaning damage parts?
Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

3. How about after sales services?
One year warranty for for all ultrasonic cleaners.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
