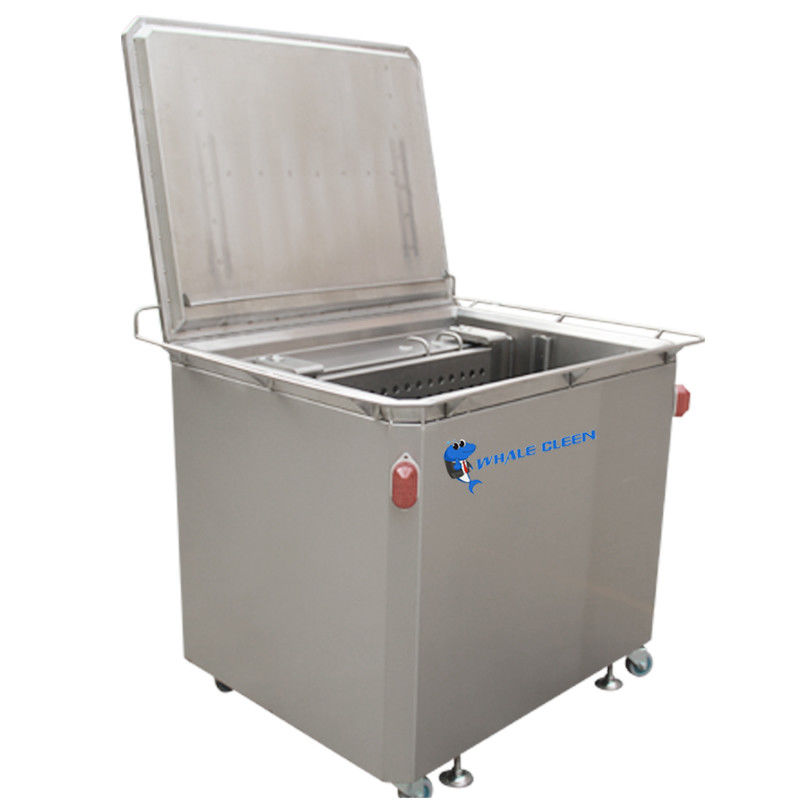

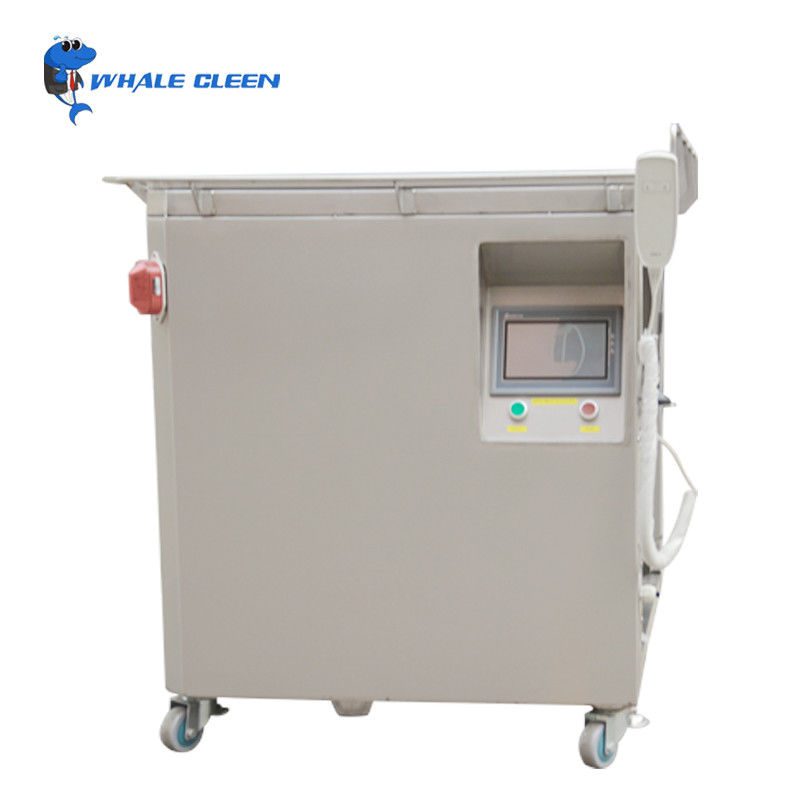

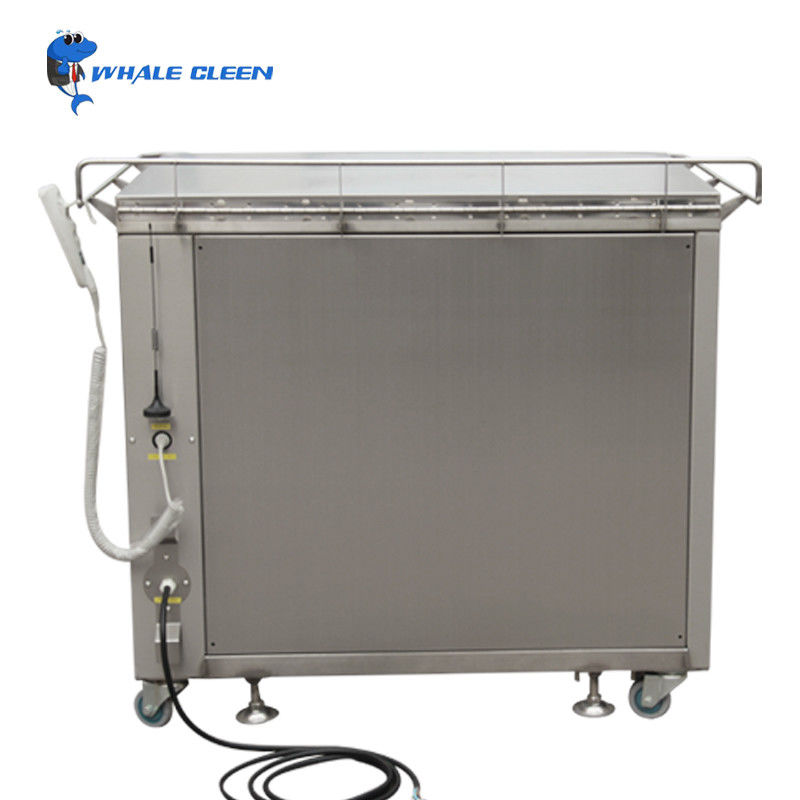

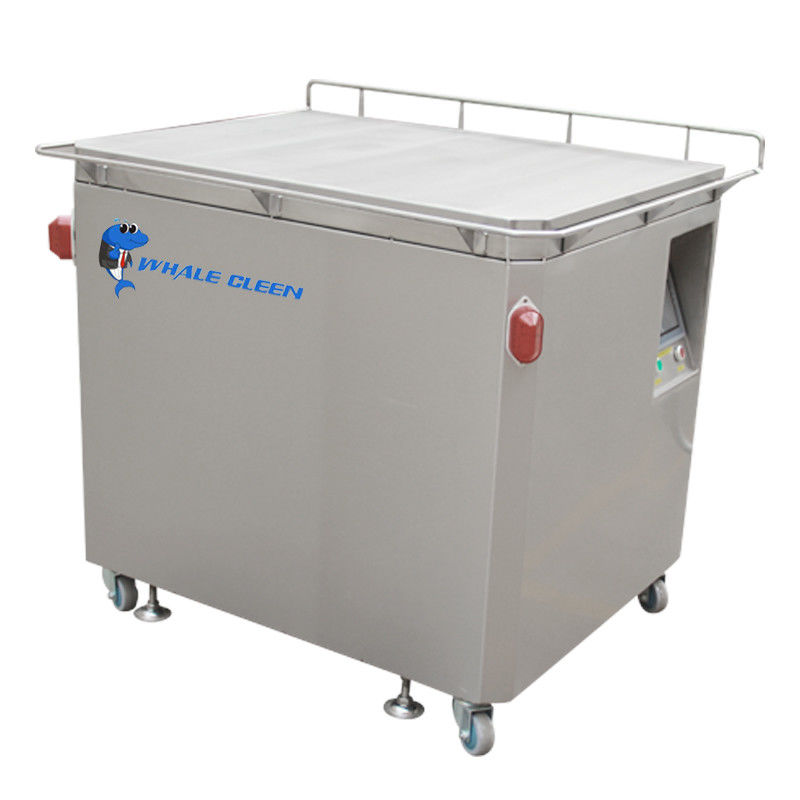

Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection

Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection

Products - Medical Ultrasonic Cleaner
  • Highlight

    Anesthesia Medical Ultrasonic Cleaner

    ,

    Glassware Medical Ultrasonic Cleaner

    ,

    Surgical Equipment Ultrasonic Cleaner

  • Tank Size
    700*300*300
  • Product Name
    Medical Boiling Tank
  • Heating Power
    3000W
  • Voltage
    110V-250V, Can Be Chosen
  • Material
    Stainless Steel SUS304
  • Time Control
    1-99H
  • Temperature（°C）
    From Room Temperature To 100°C
  • Place of Origin
    China
  • Brand Name
    Whale Cleen
  • Certification
    CE, Rohs
  • Model Number
    LanJ-ZF7-1
  • Minimum Order Quantity
    1 Unit
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Packing
  • Delivery Time
    Depend On Quantity
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    20000 Units Per Month

Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection

  • Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection
  • Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection
  • Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection
  • Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection
  • Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection
Get Price Contact Now



Surgical Equipment Glassware Anesthesia Respiratory Treatment Articles Medical

Boiling Tank Boiling Disinfection Machine







1. Features:

1). Digital controlled dispaly, 0-100 ℃ heating temperature adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products.

2). High power heating plate or heating tube, the water can be heated to 100℃ on short time.

3).  The tank body is welded by SUS304 in thickness 2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function.

4).  The Exterior Panel Material is SUS304 in thickness 1.0MM, it is strong and durable.

5). Pass 2500V high voltage test, strict production process and aging process test, have mute cover/ 304 stainless steel washing basket, certificated by CE/ROSH/FCC.

6). Support full voltage from 100, 110~130, 220~240V, plug type will be matched according to your shipping address.



2. Blue Whale Medical Boiling Tank Serie Parameters

Exterior Panel Material T1.0MM Inner Tank Size(MM)

Tank

Capacity

 Material Time Control Heating Power Temperature(°C) Control Mode
LanJ-ZF5-1 500*300*300 45L SUS304 1-99H 3KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF6-1 600*300*300 54L SUS304 1-99H 3KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF6-2 600*400*300 72L SUS304 1-99H 3KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF6-3 600*400*400 96L SUS304 1-99H 4.5KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF7-1 700*300*300 63L SUS304 1-99H 3KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF7-2 700*400*400 112L SUS304 1-99H 6KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF7-3 700*500*500 175L SUS304 1-99H 6KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF8-1 800*300*300 72L SUS304 1-99H 3KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF8-2 800*400*400 128L SUS304 1-99H 6KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF8-3 800*500*500 200L SUS304 1-99H 9KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF9-1 900*300*300 81L SUS304 1-99H 4.5KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF9-2 900*400*400 144L SUS304 1-99H 6KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF9-3 900*500*500 225L SUS304 1-99H 9KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF10-1 1000*400*400 160L SUS304 1-99H 6KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF10-2 1000*500*500 250L SUS304 1-99H 9KW Room temp.to 100°C adjustable PLC controlled/digitally controlled
LanJ-ZF10-3 1000*600*600 360L SUS304 1-99H 9KW Room temp.to 100°C adjustable PLC controlled/digitally controlled





3. Application
Medical hospitcal lab instruments cleaning and disinfecting.
Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection 0

4. Product Operating Process
1). Open the lid and add water(put more than 2/3 of the sink)
2). Add the appropriate cleaning agent.
3). Mixing the cleaning agent evenly.
4). Put in the cleaning object (soak it before washing).
5). Set time and temperature according to product needs.
6). After cleaning, disconnect the power supply, pour out the sewage, use a dry cloth to clean and maintain the tank.

5. Our Factory

Guangdong Blue Whale Ultrasonic Cleaning Technology Co., Ltd. and Guangdong Jietai Ultrasonic Cleaning Equipment Co. Ltd. are founded in 2003 and located in Dongguan City, Guangdong Province.



We have our own factory buildings including several floors of production sites and offices, we have experienced engineers, R&D team, QA team and sales team with a total around 300 workers.



We have focused on the R&D, manufacturing and sales of ultrasonic cleaning equipment. Over the past 20 years, our products have covered laboratory, medical, industrial engineering and household filed, which are widely used in the lab of schools and companies, surface coating treatment, mechanical engineering, acoustic, electronics, photoelectric, ignition detonated, medical treatment, semiconductor, watch, jewelry, PCB board, glasses, etc., and favored by customers.



With the strict impletation of ISO90001:2008 Quality Management System, our products have passed CE, FCC, ROHS and some other national and international certificates. We have got more than 50 patents. Innovation and customer-oriented are our most important corporate culture.



We welcome customers to ODM, OEM, wholesale and customize. Welcome to visit our factory.

Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection 1Glassware Anesthesia Respiratory Medical Ultrasonic Cleaner Boiling Disinfection 2
