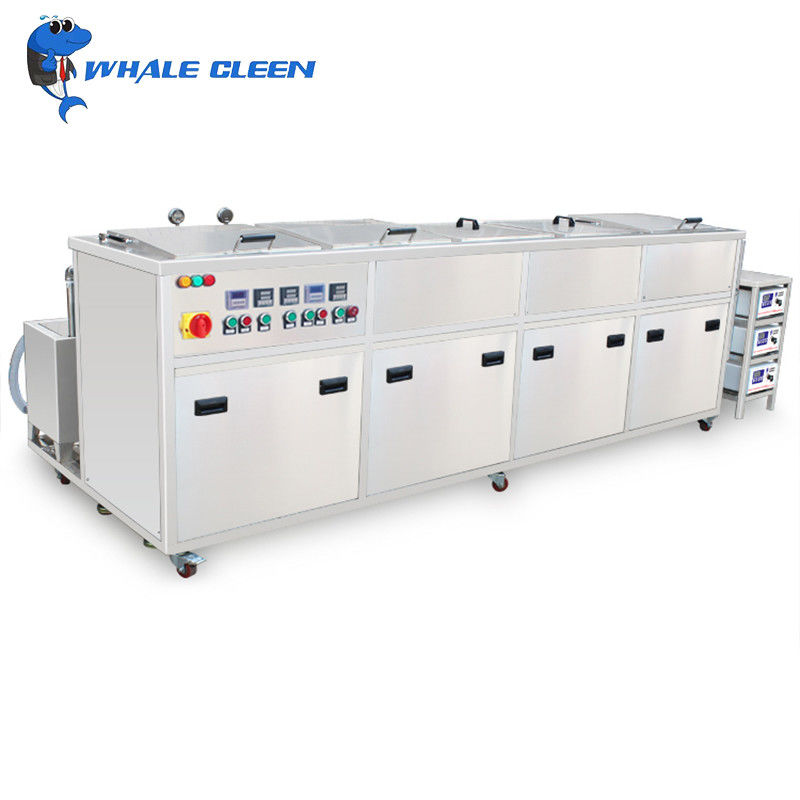

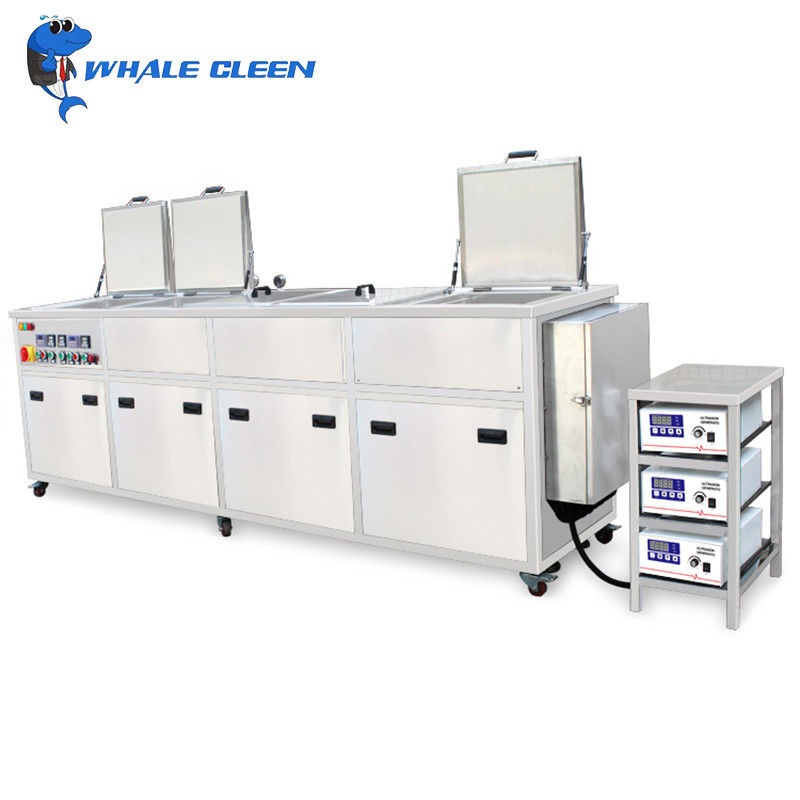

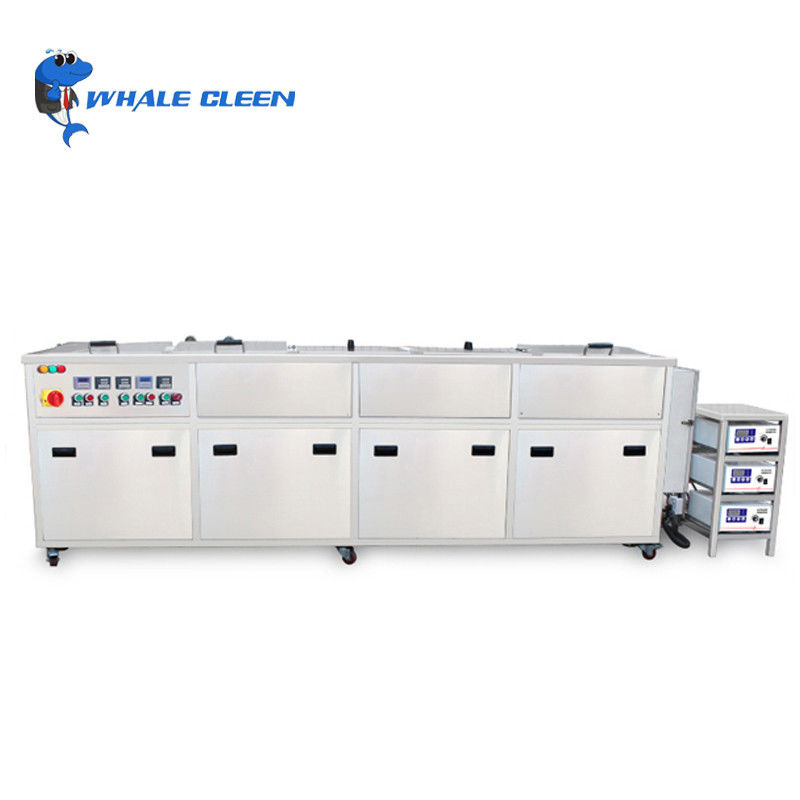

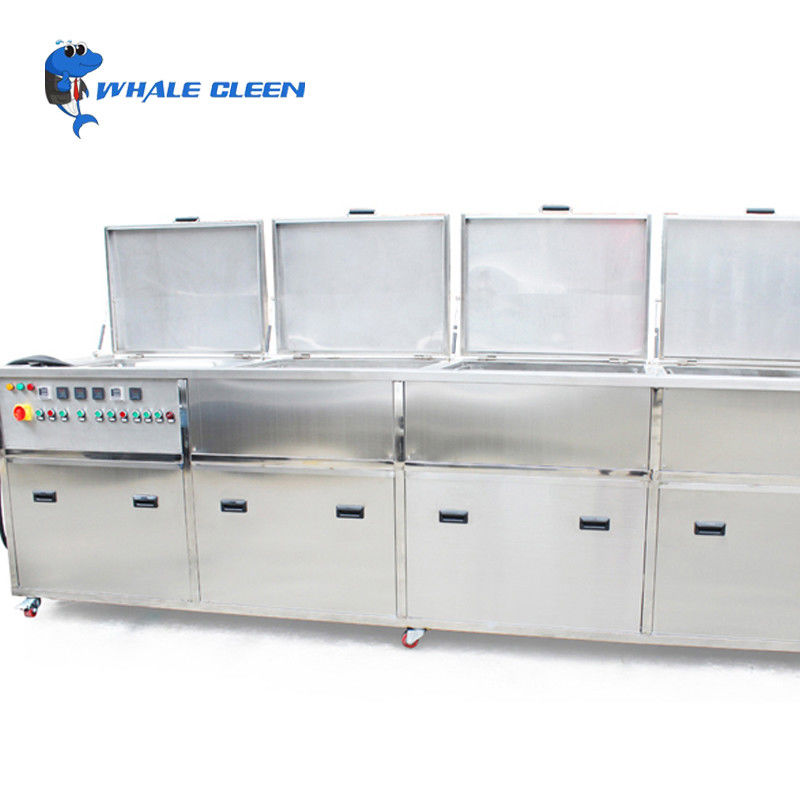

Five Tanks 135L Industrial Parts Ultrasonic Washing Machine 40Khz 5400W

Five Tanks 135L Ultrasonic Cleaner 40Khz Industrial Parts 5400W Washing Machine

1. Quick detail of Ultrasonic Cleaning Machine.

1). Power Supply: 380V Three Phases

2). Ultrasonic Power (W): 1800W for the 1st, 2nd and 4th ultrasonic tank, total 5.4KW.

3). Usage: Cleaning large quantity of parts.

4). Application area: all kinds of factories.

5). Function: 1st tank ultrasonic cleaning, 2nd tank ultrasonic rinsing, 3rd tank hot pressure spraying, 4th tank bubbling cleaning, 5th tank drying.

Can adjust the time and temperature automatically, alarm once complete drying process. There is filtering recycling system which can recycle the solvent to save the cost.

6). Material: stainless steel SUS304 in thickness 2mm with manual argon welding, strong and durable.

• 7). Time Control: 1-99hours adjustable, can normally open.

8). Industrial grade transducer: imported strong transducer with great quality, can work 24 hours without interrruption.

9). Generator control system: Independent control system, easy to operate, can adjust the ultrasonic frequency as per the needs of the user.

10). Heating System: from room temperature to 95℃ adjustable, equipped with stainless steel heating pipe, fast heating speed.

11). Power line: adopt industrial thick power cord, safe and durable.

12). Memory function: there is independent memory chip, there is no need to reset the time after setting.

2. Detail Information Of LanJ-J5108X:

3. Product Working Process of Blue Whale 5 Tanks Cleaning Machine:

1). 1st Tank: Ultrasonic cleaning+filtering recycling

Function: filtering away the oil, grease, dust into recycling sub-tank, save the cleaning agent.

 2). 2nd Tank: Ultrasonic rinsing

Function: After the cleaning of 1st tank, have precise cleaning at the 2nd tank to have better cleaning effect.

3). 3rd Tank: High pressure spraying

Function: After the 1st and 2nd tank of cleaning, the 3rd tank spray liquid onto the cleaning items to flush away the dust and debris to improve the cleanliness.

4). 4th Tank: Bubbling Cleaning

Function: Further deep cleaning.

5). 5th Tank: Hot air circulating Drying

Function: After above 4 process, put the cleaning items into the last tank to dry out by hot air circulating.

4. Cleaning Effect:

5. Application

6. FAQ

1). Are you a factory or trading company?

Blue Whale: We are a leading factory in ultrasonic cleaning field in China for 20 years. We have our own factory building including several floors of production sites and offices.

2). Do the products have CE/ROHS certificate?

Blue Whale: all of our products are under CE, FCC, KC regulations and compliance to ROHS, REACH.

3). What frequency is better for my parts?

Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts(oils, grease,rust,pastes, etc. ); 40kHz is better for PCB boards, electronic parts, etc. Higher precision goods, higher frequency.

4). Why should we use cleaning solution even though we have the ultrasonic cleaner?

Blue Whale: proper cleaning solution can help us to get the best cleaning effect. Like washing machine, when we use it to wash clothes, washing powder is needed to have the best effect.

5). Can we do ODM or OEM with you?

Blue Whale: we welcome customers to do ODM, OEM and wholesale. A brand authorization letter from your side is needed for ODM and OEM orders.

6). What’s the production lead time?

Blue Whale: for bench-top cleaners, usually we have some pieces in stock, we could ship out in 3 days if the quantity is less than 10pcs. If the qty is bigger, welcome to consult us. For industrial ultrasonic cleaners, it takes about 5-7 working days to produce.

7). What's the payment method and terms?

Blue Whale: for sample orders, 100% advance payment is required. For bulk orders, 50% / 80% deposit before production, the balance before shipment. We accept T/T and Western Union. The payment terms EXW, FOB, CIF, DAP and DDP are offered.

8). How about after sales services?

Blue Whale: one year warranty for all ultrasonic cleaners. If any technical problem during warranty time, replacement parts will be sent free. Technical support and customer service is also available lifelong.

7. Our Factory

Guangdong Blue Whale Ultrasonic Cleaning Technology Co., Ltd. and Guangdong Jietai Ultrasonic Cleaning Equipment Co. Ltd. are founded in 2003 and located in Dongguan City, Guangdong Province.

We have our own factory buildings including several floors of production sites and offices, we have experienced engineers, R&D team, QA team and sales team with a total around 300 workers.

We have focused on the R&D, manufacturing and sales of ultrasonic cleaning equipment. Over the past 20 years, our products have covered laboratory, medical, industrial engineering and household filed, which are widely used in the lab of schools and companies, surface coating treatment, mechanical engineering, acoustic, electronics, photoelectric, ignition detonated, medical treatment, semiconductor, watch, jewelry, PCB board, glasses, etc., and favored by customers.

With the strict impletation of ISO90001:2008 Quality Management System, our products have passed CE, FCC, ROHS and some other national and international certificates. We have got more than 50 patents. Innovation and customer-oriented are our most important corporate culture.

We welcome customers to ODM, OEM, wholesale and customize. Welcome to visit our factory.
