Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind

Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind

  • Highlight

    330L Ultrasonic Cleaning Machine

    ,

    3600W Ultrasonic Cleaning Machine

    ,

    40KHz Single Tank Ultrasonic Cleaner

  • Material
    SUS304
  • 1st Tank Size
    3000x220x500mm
  • Tank Capacity
    330L
  • Frequency
    40KHz
  • Ultrasonic Power
    3600W
  • Product Name
    Ultrasonic Washing Machine
  • Timer
    1-99H
  • Heating Power
    6KW
  • Place of Origin
    China
  • Brand Name
    Whale Cleen
  • Certification
    CE, Rohs
  • Model Number
    LanJ-J72X
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Packing
  • Delivery Time
    5~25 Working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    200 Units Per Month

Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind

                                 Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind

1. Why You Should Use Whale Cleen Sonic Ultrasonic Cleaner For Window Blind Cleaning?

1). It saves your time and labor in this heavy duty cleaning job.  You just need to put your blind in the machine and set the time. You can do other job before this is done, no operator is needed to present during the working process.

2). It can clean more blind hole than your hands. Because ultrasonic cleaner is working under micro type cavitation so it can reach the blind spot which can not clean by your hands.

3). Whale Cleen ultrasonic cleaner is environmental cleaning machine.  It is much faster and cleaner than cleaning by your hands.


2. Specification Of LanJ-J72X And Other Related Model:


Model LanJ-J36X LanJ-J48X LanJ-J72X
Tank size 2000x200x400mm 2400x220x500mm 3000x220x500mm
Transducers qty 36pcs 60pcs 72pcs
Tank capacity 160L  264L  330L
Ultrasonic power 1800W 3000W 3600W
Heating power 1200W 3000W 6000W
Timer 1S-99H adjustable
Capacity 40KHZ/28KHZ
Tank material SUS304/SUS316, can be chosen
Voltage AC 220V/380, 3 phases
Features

1. With casters with brake.

2. With drying rack.





3. Something about Blue Whale Blind Ultrasonic Cleaning Machine.



The blue whale blind ultrasonic cleaning machine is a kind of ultrasonic cleaning equipment for the blind. The blind will be covered with dust, tar, dead germs and some other pollutants if used for a long time. Therefore, it is recommended to clean them regularly, when cleaning need to add cleaning agent, enhance the cleaning effect, regular cleaning maintenance can greatly improve the service life of the blind.



Ultrasonic cleaning uses cavitation bubbles caused by high-frequency pressure (sound waves) to agitate the liquid. Agitation exerts a strong force on contaminants that adhere to substrates such as metals, plastics, glass, rubber, and ceramics. This action will also penetrate blind holes, cracks and recesses. The aim is to completely remove all traces of contaminants that are tightly attached to or embedded in a solid surface. Water or solvent may be used depending on the type of contamination and the work piece. Pollutants can include dust, dirt, oil, pigments, rust, grease, algae, fungi, bacteria, lime dirt, Polish, flux, fingerprints, soot and mold release agents, biological soil, and so on.



Ultrasonic cleaning can be used for workpieces of various shapes, sizes and materials, and parts may not need to be removed prior to cleaning. Do not place objects at the bottom of the equipment during cleaning as this will prevent cavitation on objects that are not in contact with solvents.




4. Cleaning Effect:

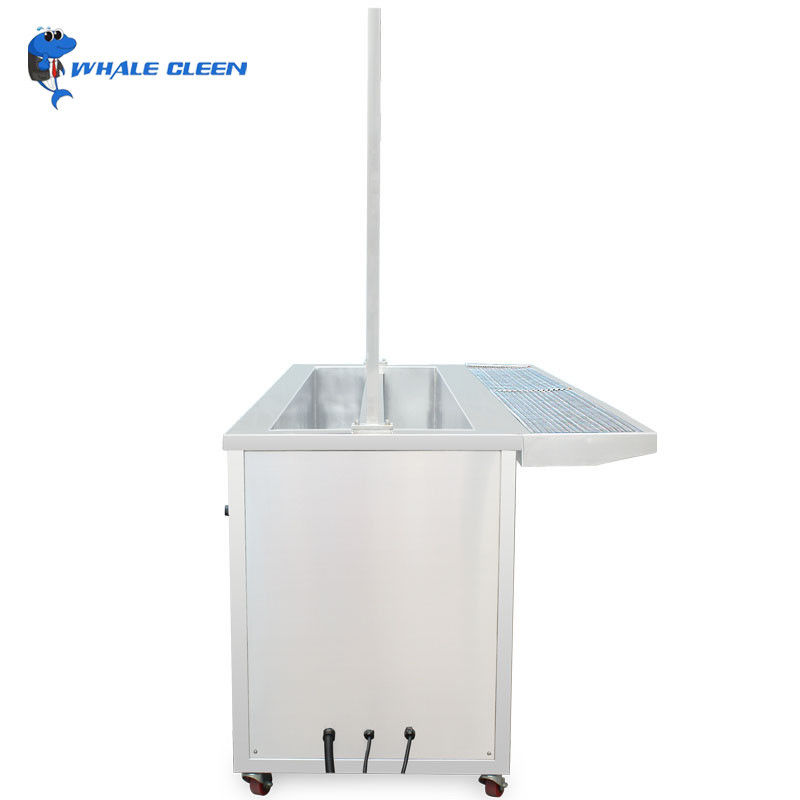

Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind 0


5. Detail picture during production:

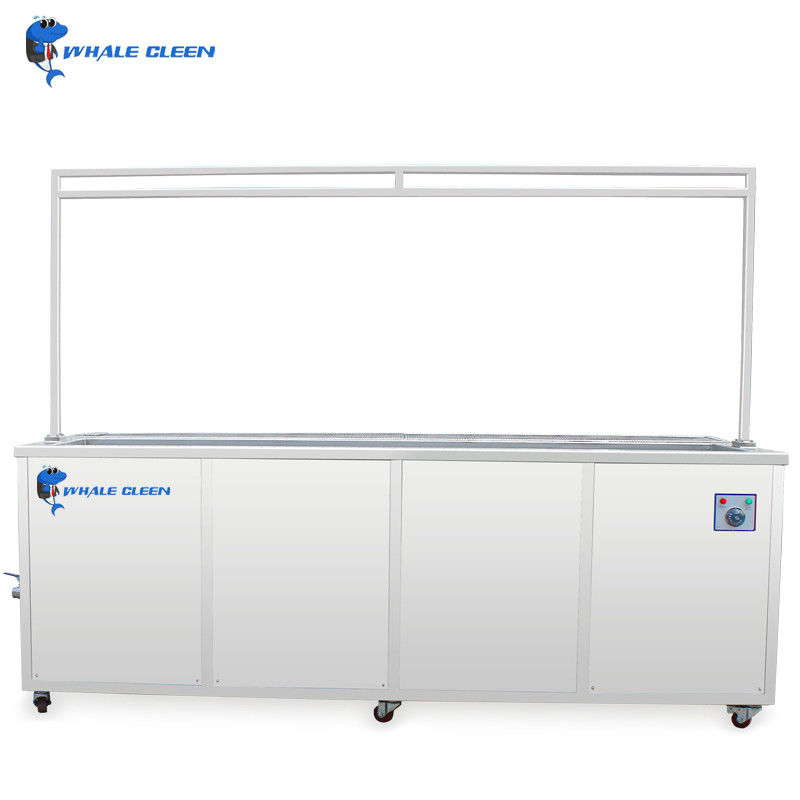

Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind 1

6. How To Clean Window Blind With Ultrasonic Cleaning Machine?



1). Make sure cleaning tank is clean before start the processs.

2). Pour water into cleaning tank.

3). Set the cleaning time and temperature you need.

4). Connect the power line and turn on the machine.

5). When the cleaning processs is over, pull out the window blind from tank.

6).  Put the window blind on drying track or hang on drying rack.

7). Turn off the machine and pour out the water.

8). Make the machine dry and clean especially the cleaning tank.



7. ​Blue Whale Ultrasonic Cleaner Care Instructions



1). The ultrasonic drive circuit board should be kept dry and should not be stored in a humid environment, otherwise it will be in the risk of burning out the machine.



2). Turn off the power of the ultrasonic generator when the ultrasonic cleaner is not in use.



3). Avoid bumping or violent vibration to the machine.



4). Ultrasonic cleaner generator and cleaning tank should be far away from heat source.



5). Try not to work the ultrasonic cleaner for a long time, stop for more than 5 min. after working for several hours.



6). The machine should be placed in a ventilated place as much as possible to facilitate the machine to dissipate heat.



7). It is strictly forbidden to start without water or fluid, must work above the liquid level.



8). When the ultrasonic cleaning machine uses flammable liquid such as alcohol, chemical to clean objects, please consult with our customer service first before using the machine.



9). Try to avoid the use of strong acid and alkali cleaning agent.



10). In order to ensure the cleaning effect, the cleaning fluid should be replaced in time.



11). After the cleaning is completed and the machine is turned off, use a clean try rag to clean the tank body and its periphery after pouring out the cleaning agent.



12). After using the cleaner, cover it, keep the shell clean, store it in a dry, ventilated and dust-free place.



8. Packing Method: Wooden Case

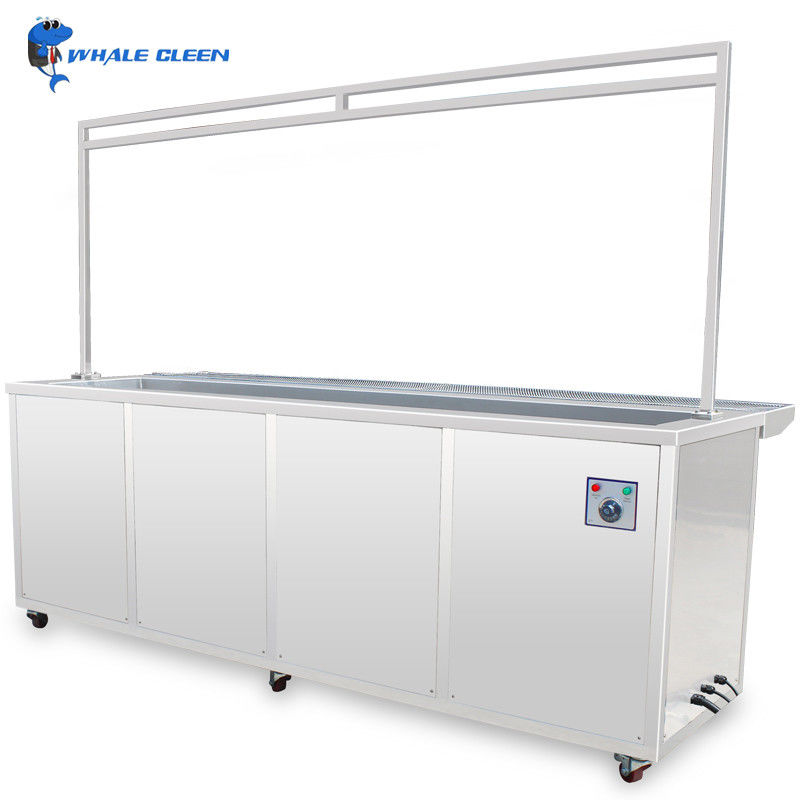

Single Tank 330L Ultrasonic Cleaning Machine 3600W 40KHz For Window Blind 2
