Pharmaceutical And Chemical Industry Ultrasonic Cleaner For Filter And Titanium Rod

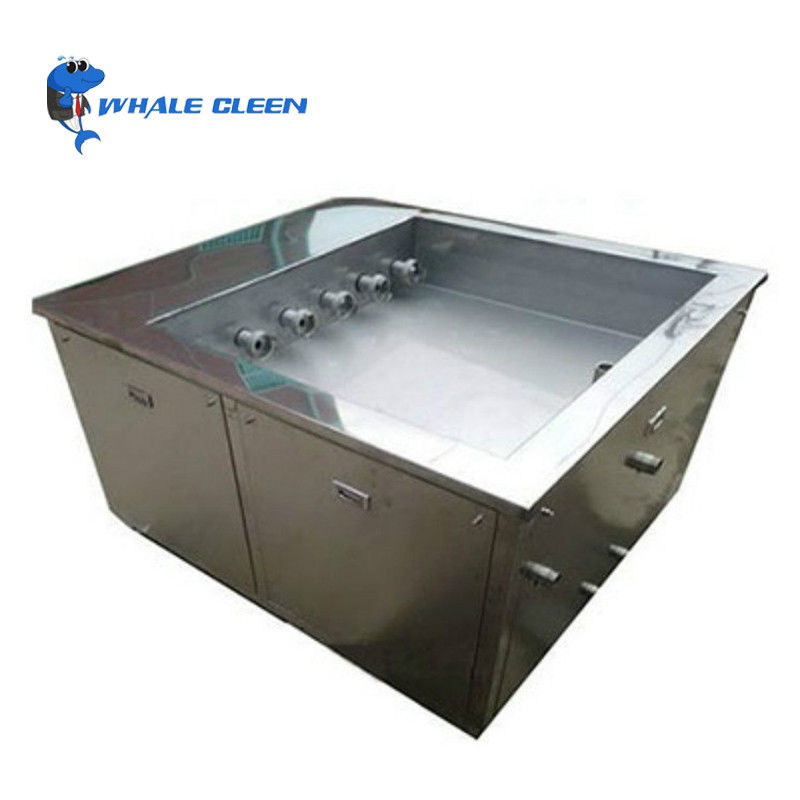

Blue Whale Ultrasonic Cleaning Machine to Clean Filter and Titanium Rod

For Pharmaceutical and Chemical Industry

1. Specification of LanJ-F100(576L):

2. What is the Principle of Ultrasonic Cleaning Machine?

The principle of ultrasonic cleaning machines is based on the use of high-frequency sound waves to create microscopic bubbles in a cleaning solution, which then implode upon contact with a surface, effectively removing contaminants from the surface.

The cleaning process of an ultrasonic cleaning machine typically involves the following steps:

The object to be cleaned is placed in a tank filled with a cleaning solution. The cleaning solution is typically water-based and may contain a detergent or other cleaning agent.

Ultrasonic transducers, which are typically made of piezoelectric materials, generate high-frequency sound waves that are transmitted through the cleaning solution.

The high-frequency sound waves create microscopic bubbles in the cleaning solution, a process known as cavitation. The bubbles grow in size until they reach a point where they can no longer absorb energy, and then they collapse or implode.

The implosion of the bubbles creates a scrubbing action that effectively removes contaminants from the surface of the object being cleaned. The implosion of the bubbles also generates heat, which can help to further loosen and remove contaminants.

The cleaning solution is continuously circulated through the tank, ensuring that all areas of the object being cleaned are exposed to the ultrasonic waves and cleaning solution.

After the cleaning process is complete, the object is removed from the tank and rinsed with clean water to remove any remaining cleaning solution or contaminants.

Overall, the principle of ultrasonic cleaning machines is based on the use of high-frequency sound waves to create cavitation bubbles in a cleaning solution, which then implodes upon contact with a surface, effectively removing contaminants from the surface and leaving the object thoroughly cleaned.

3. What are some common applications of ultrasonic cleaning machines?

Ultrasonic cleaning machines are used in a wide range of industrial and commercial applications, including:

Electronics manufacturing: Ultrasonic cleaning machines are commonly used in the electronics industry to clean printed circuit boards, electronic components, and other sensitive parts and equipment.

Automotive and aerospace manufacturing: Ultrasonic cleaning machines are used to clean engine parts, fuel injectors, carburetors, and other automotive and aerospace components.

Medical and dental equipment: Ultrasonic cleaning machines are used to clean surgical instruments, dental instruments, and other medical equipment.

Jewelry and watchmaking: Ultrasonic cleaning machines are used to clean jewelry, watches, and other delicate items.

Optics and lenses: Ultrasonic cleaning machines are used to clean lenses, prisms, and other optical components.

Firearms: Ultrasonic cleaning machines are used to clean firearms and other weapons.

Food and beverage processing: Ultrasonic cleaning machines are used to clean processing equipment, including tanks, pipes, and other components.

Printing industry: Ultrasonic cleaning machines are used to clean printing plates, stencils, and other printing equipment.

Overall, ultrasonic cleaning machines are versatile and widely used in many industries and applications where thorough and efficient cleaning is required.

4. How do ultrasonic cleaning machines compare to other cleaning methods?

Ultrasonic cleaning machines offer several advantages over other cleaning methods, including:

Efficiency: Ultrasonic cleaning machines are highly efficient at removing contaminants, even in hard-to-reach areas or small crevices.

Thoroughness: Ultrasonic cleaning machines can remove a wide range of contaminants, including dirt, grease, oil, and other substances, leaving surfaces thoroughly cleaned.

Safety: Ultrasonic cleaning machines use water-based cleaning solutions that are safe for both operators and the environment, reducing the risk of injury or damage.

Versatility: Ultrasonic cleaning machines can clean a wide range of parts and components, making them suitable for use in many different industries and applications.

Consistency: Ultrasonic cleaning machines provide consistent cleaning results, ensuring that parts are cleaned to the same standard every time.

In comparison to other cleaning methods, such as manual cleaning or chemical cleaning, ultrasonic cleaning machines are generally faster, more efficient, and safer. Manual cleaning can be time-consuming and labor-intensive, while chemical cleaning can be hazardous to both operators and the environment.

Overall, ultrasonic cleaning machines offer a highly effective and efficient cleaning solution that is suitable for a wide range of industrial and commercial applications.

5. Production Process of Blue Whale Factory:
