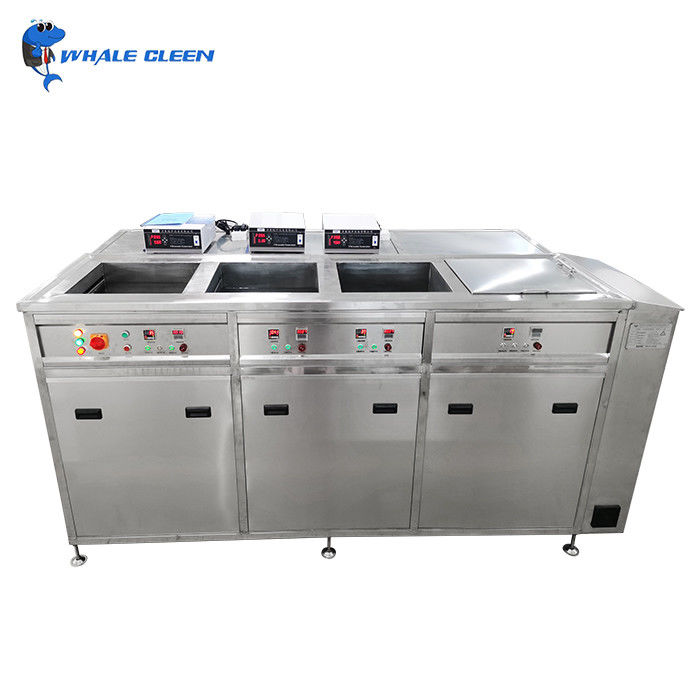

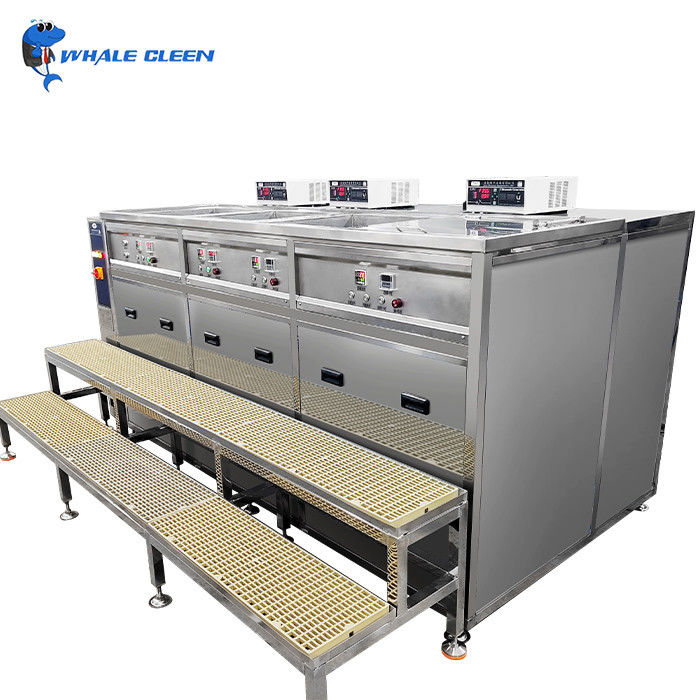

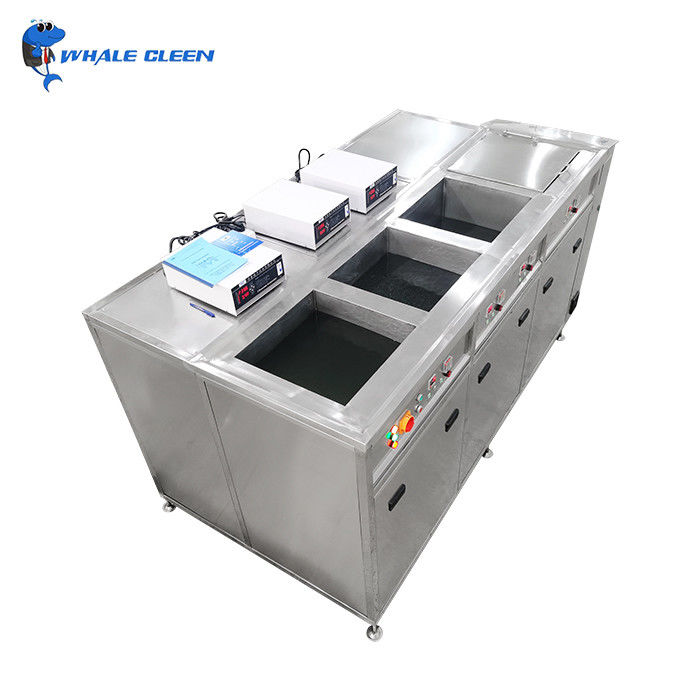

Advanced 1.2KW Ultrasonic Cleaning Machine for Engine Block 40KHz Frequency Four Tank Design

88Liter 1.2KW Ultrasonic Cleaning Engine Block Machine With Four Tank

What Whale Cleen sonic Ultrasonic Cleaning Engine Block Machine Can Do?

Effective cleaning of components is an integral part of rebuilding or reconditioning an engine – Using an Ultrasonic cleaner can simplify and quicken this task while also providing improved results.

Older engines are prone to carbon build up which reduces the air flow through the engine and can cause running problems. However, there is a method of cleaning available that uses no harsh solvents, is fast and effective and requires only minimal amount of effot. This method is “Ultrasonic Cleaning”

The process of Ultrasonic Cleaning utilises high frequency sound waves which are radiated through a liquid medium – These sound waves are created by a number of transducers which are bonded to the base of the ultrasonic bath, as an electrical current is passed through the two transducer crystal rings they become agitated and vibrate at around 40,000 times a second. This vibration converts the electrical energy to sound energy which is then transferred through the base of the tank into liquid - As sound waves pass through the fluid microscopic bubbles form.

These bubbles continue to grow in size until they become unstable and cannot support their own density causing them to implode – this phenomenon known as cavitation, as these bubbles collapse the surrounding cleaning fluid rushes in to fill the gaps, which creats an action similar to that of a scrubbing brush, but thousands of times per second per cubic centimetre. It is this process which gives ultrasonic’s its powerful cleaning action and makes it the most effective method of removing contaminates from substrates or complex shapes. This process can be further intensified by adding cleaning detergent to the liquid – Ultrasonic detergents work on the simple principle as a normal household detergent by adding the loosening process.

Ultrasonic cleaning represents a number of benefits over alternative methods which are available. People are being urged to move away from traditional methods which use solvents to remove baked on deposits as these are both hazardous to the environment and can be dangerous to those using them. Solvent based systems also take longer to remove deposits with items often needed to be soaked in the solution for a long period of time in order to brake down the baked on carbon and fuel residues.

Specification:

Cleaning Effect:
