Fully Automatic Multi-Arm Ultrasonic Cleaning Machine for Oil and Wax Removal
-
Highlight
Oil Removal Ultrasonic Cleaning Machine
,Fully Automatic Ultrasonic Cleaning Machine
,Multi-Arm Ultrasonic Cleaning Machine
-
Product NameFully Automatic Industrial Ultrasonic Cleaning Machine
-
Heater20-95℃ Adjustable
-
Timer1-99 Minutes Or Adjustable
-
Frequency20-40KHz Or Customized
-
MaterialSUS304 Or SUS316
-
Power2400W Or Customized
-
CertificationCE,CCC
-
FunctionAutomatic Removal Oil And Wax,Hardware Parts, Automotive Parts
-
Other ServiceSupport Customization
-
Place of OriginChina
-
Brand NameWhale Cleen
-
CertificationCE,CCC
-
Model NumberCustomizable Non-Standard -004
-
Minimum Order Quantity1 Units
-
PriceNegotiable
-
Packaging DetailsStrong Wooden Case Packing
-
Delivery Timenegotiable
-
Payment TermsT/T
-
Supply Ability1000 Units Per Month
Fully Automatic Multi-Arm Ultrasonic Cleaning Machine for Oil and Wax Removal
Fully Automatic Multi-Arm Ultrasonic Cleaning Machine for Oil and Wax Removal
Custom 5 tanks Ultrasonic Cleaning Machine Fully Automatic Multi-Arm Industrial Parts Cleaning Equipment
Product Features and Advantages
- Cutting-Edge Cleaning Technology: Utilizes high-frequency ultrasonic waves (20kHz-40kHz) to generate powerful cavitation effects, penetrating intricate crevices and removing stubborn contaminants with unmatched efficiency.
- Fully Automated Operation: Equipped with PLC control system and touchscreen interface for seamless workflow management, reducing labor costs and minimizing human error.
- Superior Cleaning Consistency: Uniform ultrasonic wave distribution ensures consistent results across all workpieces, ideal for high-precision industries.
- Energy & Cost Efficiency: Low power consumption with durable stainless steel construction ensures long service life and minimal maintenance.
- Safety & Environmental Compliance: Designed with leak-proof seals, overload protection, and eco-friendly cleaning options meeting international standards.
- Customizable Non-Standard Solutions: Tailored to unique needs with adjustable tank sizes, multi-stage processes, and optional upgrades.
Working Principle
The cleaning process relies on ultrasonic cavitation:
- Ultrasonic Wave Generation: High-frequency sound waves create millions of tiny cavitation bubbles in the cleaning solution.
- Cavitation Effect: Bubbles implode upon contact with surfaces, generating micro-jets that dislodge contaminants without physical abrasion.
- Mechanical Agitation: Combined with mechanical movements and temperature-controlled fluids for deep-reaching, thorough cleaning.
- Automated Workflow: PLC system coordinates each stage from loading to drying for optimized efficiency.
Equipment Configuration
- First and Second Tanks: Ultrasonic cleaning + filtering circulation to remove floating oil, impurities, and dust while saving cleaning agent.
- Third Tank: Bubbling rinsing for additional cleaning after the second tank.
- Fourth Tank: Ultrasonic rinsing to achieve better cleanliness.
- Fifth Tank: Hot-air drying tank using air-blowing for rapid drying.
Product Specifications
| Item | Details |
|---|---|
| Brand | Whale Clean |
| Purpose | Hardware Cleaning |
| Working Mode | Fully Automatic Multi-Arm Ultrasonic Cleaning Machine |
| Weight | Customized as Required |
| Overall Dimensions | Customized as Required |
| Temperature Control Range | 20 - 95°C |
| Voltage | Three-phase 380V |
| Number of Tanks | 5 tanks or Customized |
| Ultrasonic Cleaning Frequency | 20/40/68/80/132KHz or customized |
| Inner Tank Dimensions | Customized as Required |
| Type | Integrated |
| Heating Power | Customized as Required |
| Number of Transducers | Customized as Required |
| Time Control Range | 0 - 99 Minutes |
| Place of Origin | Shenzhen, China |
Customization Options: Inner tank size, ultrasonic power, frequency (20/25/28/40/68/80/168/180/200KHZ), voltage (single-phase 110V/220V / three-phase 380V), material (304/316 stainless steel), and additional functions (filtering, spraying, bubbling, drying, lifting, tossing, condensing, slow pulling, PLC control system).

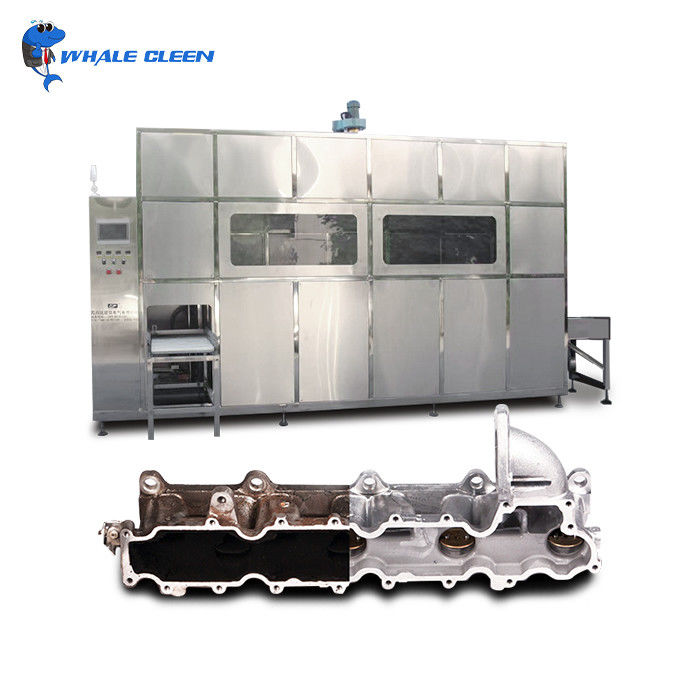

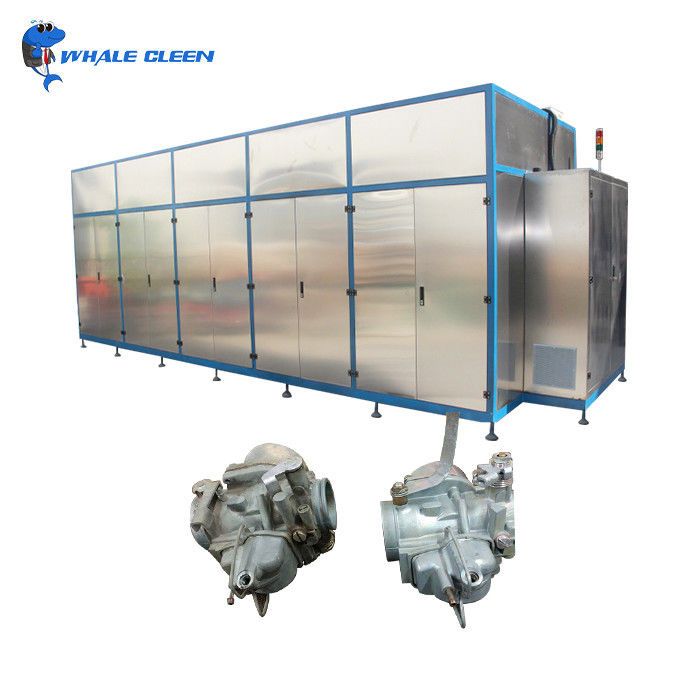

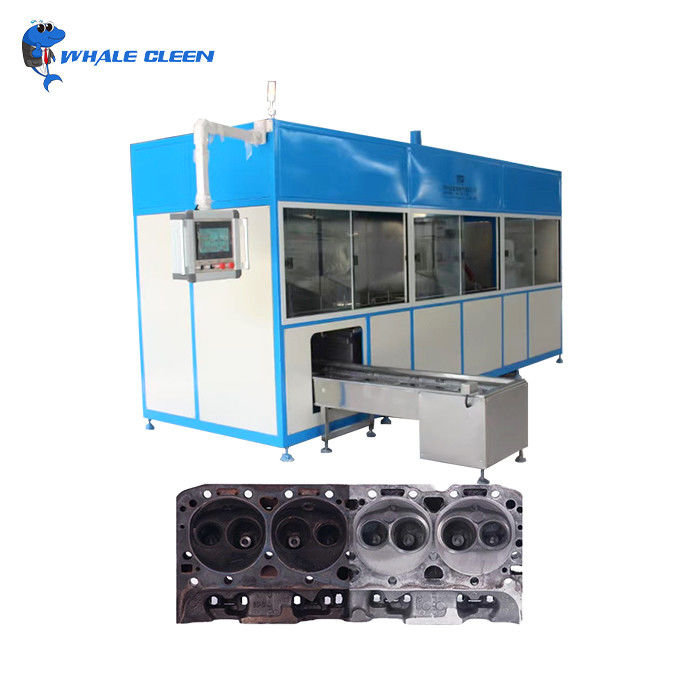

Product Images
Quality Assurance
We use high-quality electrical and mechanical components to ensure stable and reliable performance. Our machines are designed by experienced engineers with backgrounds in leading international manufacturing companies. Our production team consists of skilled workers with years of experience in building automated cleaning lines. Quality control covers the entire process from raw material inspection to final assembly and testing.
Professional Experience
We have worked with famous brand companies, government projects, and railway departments. With years of international experience including installation and testing services in other countries, we provide comprehensive support for our customers.
Payment Terms
We offer flexible payment terms, including 10-20% payment after installation and testing services. We may require some support from customers in specific cases.
After-Sales Service
We provide installation and testing services at your facility until the cleaning system is working properly. We offer 5-year warranty with 24/7 support during the warranty period.
Customization Services
As a source manufacturer of cleaning machines, we help customers customize various types of non-standard cleaning machines with fast delivery times.
Application Fields
- Electronics Industry: Cleaning electronic components, circuit boards, and semiconductor devices
- Automotive Industry: Cleaning engine parts, transmission components, and automotive bearings
- Jewelry Industry: Cleaning jewelry, watches, and precious stones
- Medical Industry: Cleaning medical instruments, dental equipment, and surgical tools
- Optical Industry: Cleaning optical lenses, prisms, and camera lenses
- Metalworking Industry: Cleaning metal parts after processing to remove contaminants
Customer Feedback
Certifications
