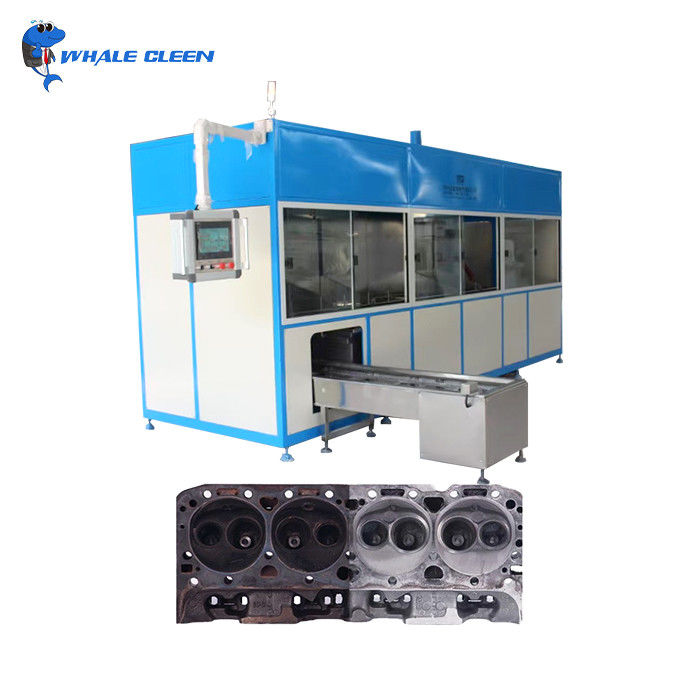

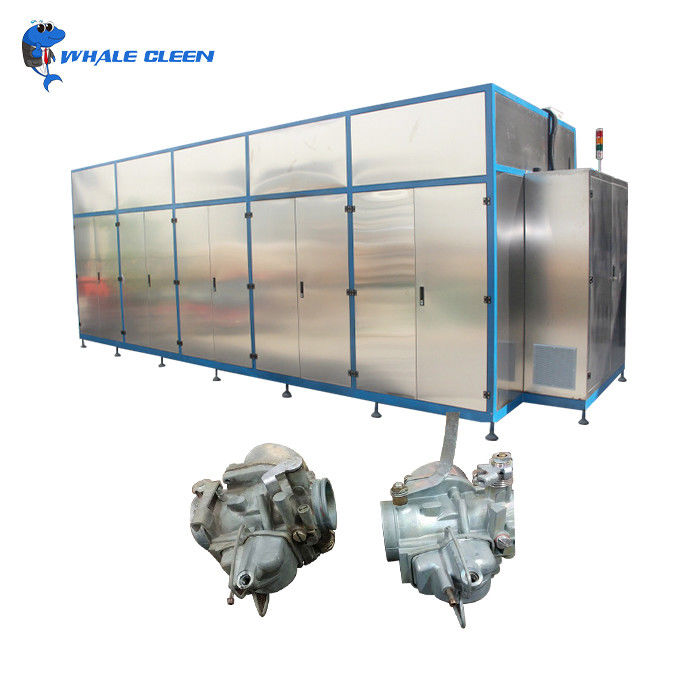

Industrial Full Auto Ultrasonic Cleaning Machine 20-200KHz With 304 Stainless Steel For auto parts

Custom 5 tanks Ultrasonic Cleaning Machine Fully Automatic Multi-Arm Industrial Parts Cleaning Equipment

1. Product Features and Advantages

(1)Cutting-Edge Cleaning Technology
Utilizes high-frequency ultrasonic waves (20kHz–40kHz) to generate powerful cavitation effects, penetrating even the most intricate crevices and removing stubborn contaminants (oil, grease, particles, flux residues) with unmatched efficiency.
(2)Fully Automated Operation
Equipped with a PLC control system and touchscreen interface for seamless workflow management: pre-cleaning, ultrasonic cleaning, rinsing, drying, and material handling are all automated, reducing labor costs and minimizing human error.
(3) Superior Cleaning Consistency
Uniform ultrasonic wave distribution ensures consistent cleaning results across all workpieces, ideal for high-precision industries such as automotive, aerospace, electronics, and medical device manufacturing.
(4) Energy & Cost Efficiency
Low power consumption combined with durable stainless steel construction (304/316L) ensures long service life and minimal maintenance. Reduces water/chemical usage through intelligent recycling systems.
(5) Safety & Environmental Compliance
Designed with leak-proof seals, overload protection, and eco-friendly cleaning options (biodegradable detergents), meeting international standards for industrial safety and sustainability.

(6) Customizable Non-Standard Solutions
Tailored to your unique needs: adjustable tank sizes, multi-stage cleaning processes, specialized fixtures, and optional upgrades (heated cleaning, filtration systems, nitrogen drying) to address diverse industrial applications.
２.Working Principle
The cleaning process relies on ultrasonic cavitation:
1. Ultrasonic Wave Generation: High-frequency sound waves emitted by transducers create millions of tiny cavitation bubbles in the cleaning solution.
2. Cavitation Effect: Bubbles implode upon contact with surfaces, generating micro-jets that dislodge and dissolve contaminants without physical abrasion.
3. Mechanical Agitation: Combined with mechanical movements (conveyor belts, rotation racks) and temperature-controlled cleaning fluids, this process ensures deep-reaching, gentle yet thorough cleaning.
4. Automated Workflow: The PLC system coordinates each stage—from loading to drying—for optimized efficiency, ensuring workpieces are cleaned, dried, and ready for the next production step.

3. Equipment Configuration:

First and second tanks: Ultrasonic cleaning + filtering circulation
Function: Filter out floating oil, impurities, and dust during the cleaning process, saving the cleaning agent.
Third tank: Bubbling rinsing
Function: After cleaning in the second tank, the third tank performs bubbling rinsing again, making the workpieces cleaner.
Fourth tank: Ultrasonic rinsing
Function: After cleaning in the third tank, conduct a rinsing in this rinsing tank, achieving better cleanliness.
Fifth tank: Hot - air drying tank
Function: The fifth tank uses air - blowing for drying, enabling the cleaned objects to dry rapidly.

4.product in details

PS:Inner tank size
Ultrasonic power
Frequency: optional 20/25/28/40/68/80/168/180/200KHZ
Voltage: optional single-phase 110V/220V / three-phase 380V
Material: optional 304/316 stainless steel
Other functions: optional filtering, spraying, bubbling, drying, lifting, tossing, condensing, slow pulling, PLC control system, etc.

1.Quality Control:

We are using hight quality material like Simens, Schneider electrical parts. Our machine is designed by experienced engineer who have designed machines for Foxconn, Cummins and BOSCH. The workers also have years experience building automatical cleaning line. Our QC system is covering from raw material to finishing machine.

2.Professional Experience:

We have worked with many famous brand company and goverment project like Foxconn, Cummins and railway department. We also have years international experience with installating and testing machine in other country. We will provide full service for our customer after purchasing.

3.Payment Term:

We can accept flexible payment term due to different situation like 10~20% payment after installation and test service.

We also need some support from you in some case.

4.After Sales Service:

We will provide installation and test service for automatical cleaning line at your facility until cleaning is working properly.

And we offer 5 years with 24/7 work during warranty period.

5.Non-standard customization

We are the source of cleaning machine manufacturers, can help customers customize various types of non-standard cleaning machine, fast delivery.

Application Field:

Here are the application fields of fully - automatic ultrasonic cleaning machines:
 Electronics Industry: It is used to clean electronic components, circuit boards, and semiconductor devices to remove impurities and ensure product quality.
Automotive Industry: It can clean engine parts, transmission components, and automotive bearings to improve their performance and service life.
Jewelry Industry: It is suitable for cleaning jewelry, watches, and precious stones to restore their luster and beauty.
Medical Industry: It is used to clean medical instruments, dental equipment, and surgical tools to meet the requirements of high standard sterilization.
 Optical Industry: It can clean optical lenses, prisms, and camera lenses to ensure clear imaging.
 Metalworking Industry: It is applied to clean metal parts after processing to remove oil stains, chips, and other contaminants.
