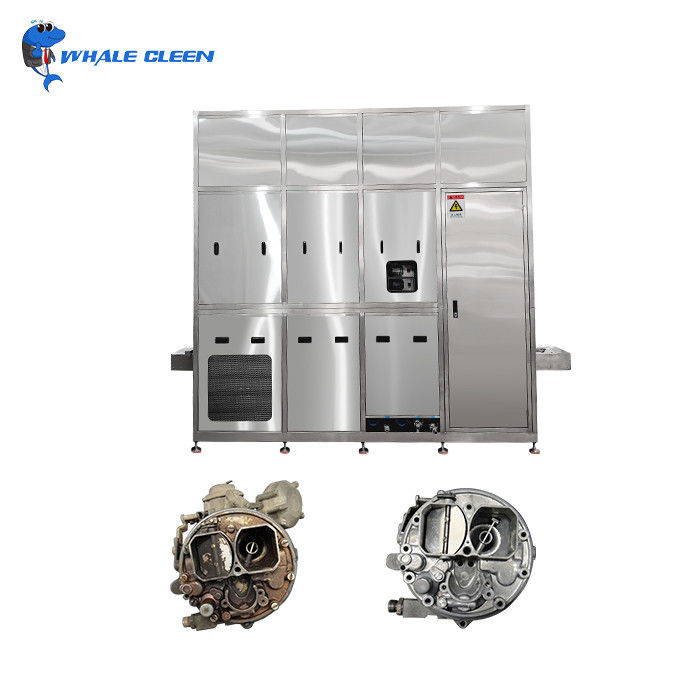

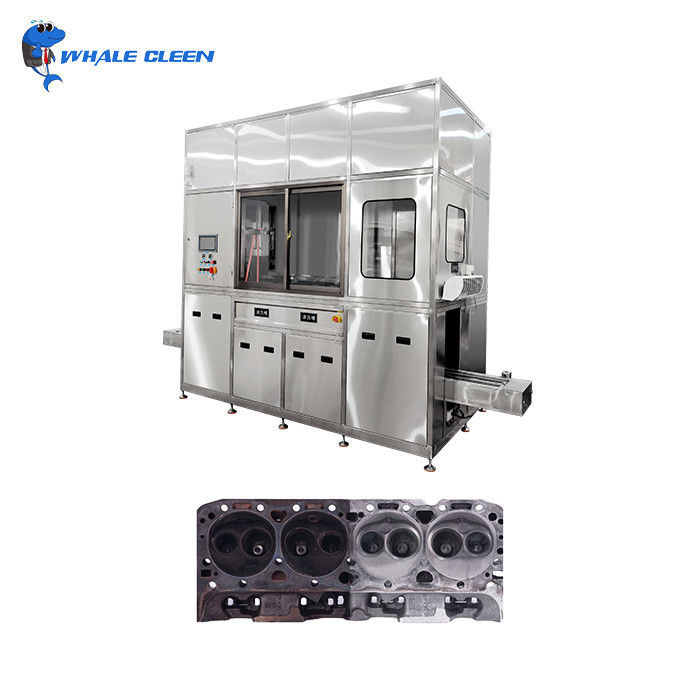

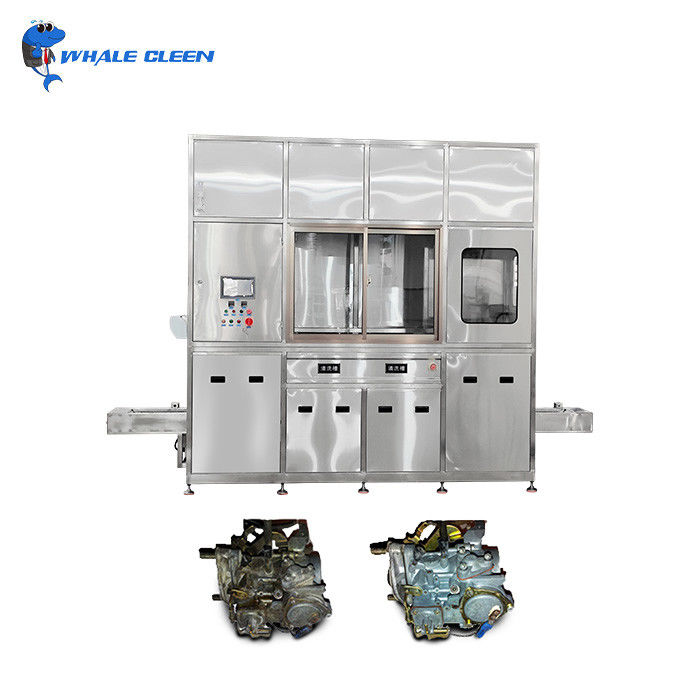

High Efficiency Single-Station Industrial Cleaning Machine With Hydrocarbon Spray, Drying And Vacuum Functions from Cleaner Manufacturer

1. Product Features:
(1) Eco-Friendly & High Efficiency
Using hydrocarbon solvents, the closed-loop recycling system achieves zero wastewater discharge, complying with international environmental standards.
(2) Integrated Design
Single-station integration of the full process: cleaning, spraying, and drying, saving space and operation time. Suitable for small to medium batch precision cleaning needs.
(3) Vacuum Drying Technology
Negative pressure environment enables rapid solvent vaporization with no residue or oxidation, especially protecting sensitive materials like metals and optical components.
(4) Precision Cleaning Capability
Multi-angle high-pressure spraying combined with a multi-layer filtration system effectively removes contaminants.
(5) Safety & Reliability
Explosion-proof configurations and high flash point solvent design ensure operational safety in flammable and explosive scenarios.
(6) Energy & Cost Saving
Compared with traditional drying, vacuum drying reduces energy consumption, and the high solvent recovery rate lowers long-term usage costs.
(7) Wide Compatibility
Compatible with various materials (metal, ceramic, plastic, etc.), covering high-end industries such as automotive, electronics, medical, and optics.
(8). This product support non-standard custom, can provide design drawings and cleaning program.

 Non-Standard Parts Customization

Tailored solutions for unique components, including:

- Custom cleaning tank dimensions and configurations

- Adjustable process parameters for material-specific requirements

- Bespoke cleaning protocols and equipment designs to meet niche industry needs

2.Product Analysis and Technical Principles

The "single-station" refers to the equipment completing all processes (cleaning → spraying → drying) within a single enclosed chamber, suitable for small to medium batch and high-precision cleaning needs, differentiating it from multi-station assembly line equipment.
Advantages: Small footprint, simple operation, and low maintenance cost.

Hydrocarbon solvents use high-purity hydrocarbons (such as isoparaffins) as cleaning media, featuring:
✅ Environmentally friendly and non-toxic
✅ Strong dissolving power
✅ High flash point.

The spraying technology uses multi-angle high-pressure spraying arms (pressure range typically 3-8 bar, customizable with variable frequency control) for impact cleaning of workpieces. Combined with a multi-layer filtration system, the solvent is recycled to extend service life.

Vacuum drying involves evacuating the sealed chamber to reduce the solvent boiling point via negative pressure, enabling rapid vaporization of residual solvent, which is then recovered through condensation. This achieves:
