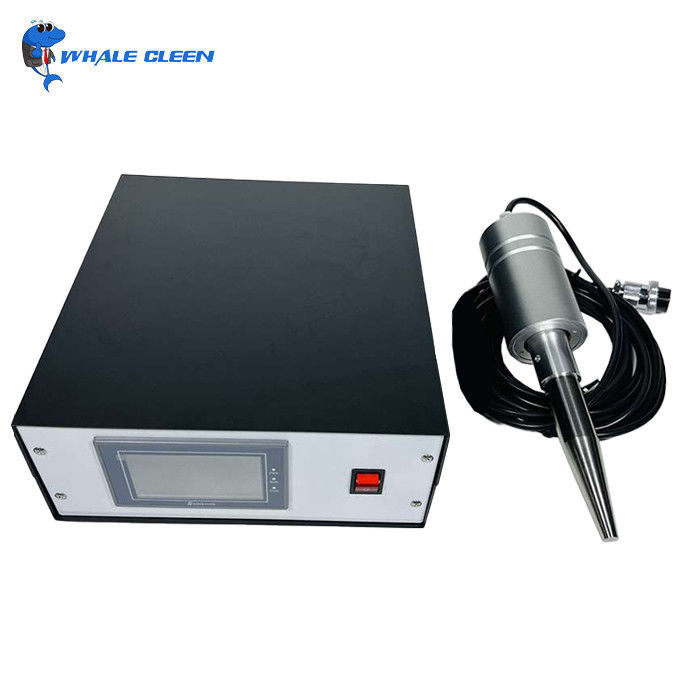

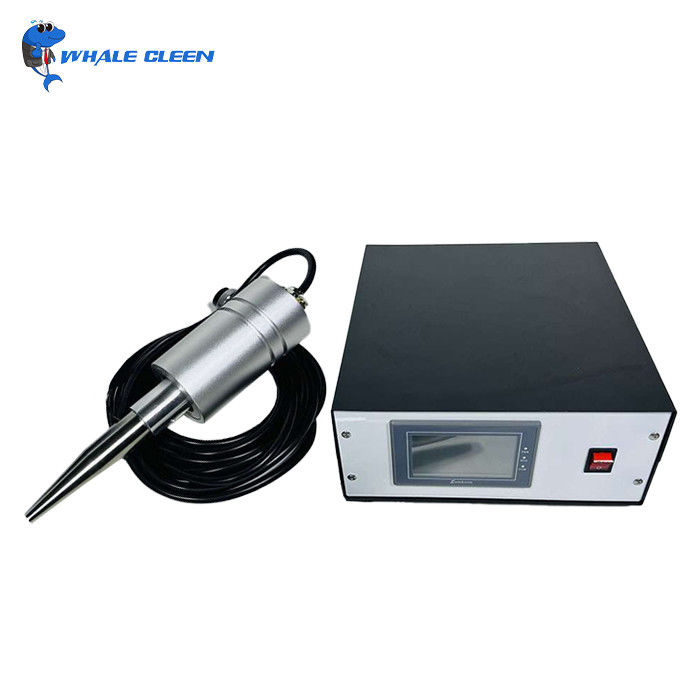

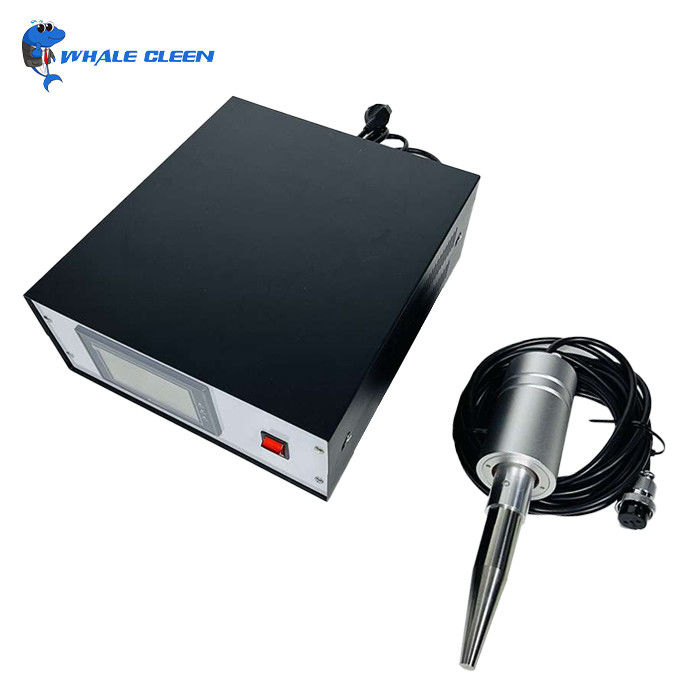

Ultrasonic Scale Remover-- Eco - Friendly Ultrasonic Scale Remover: Non - Destructive Industrial Descaling
1. Definition
An ultrasonic scale remover is an intelligent cleaning device that achieves non-destructive physical descaling for industrial equipment through the cavitation effect generated by high-frequency ultrasonic waves. Specifically designed to solve stubborn scale problems on the inner walls of closed systems such as pipelines, boilers, cooling towers, and heat exchangers, it serves as an eco-friendly alternative to traditional chemical pickling.
2. Product Features
1. Non-destructive Physical Cleaning
Using 20-100kHz high-frequency ultrasonic waves, it peels off scale layers via the cavitation effect, avoiding corrosion to metal substrates caused by pickling. Suitable for sensitive materials: stainless steel/titanium alloy/copper pipes.
2. High-efficiency Full-dimensional Coverage
Cavitation shock waves penetrate up to 8-12 meters, enabling cleaning of complex structures like U-tubes and serpentine pipes with 360°-free (dead-angle-free) cleaning. Efficiency is 5-8 times higher than manual scrubbing.
3. Core Technical Principles
- Cavitation Blasting
Ultrasonic transducers convert electrical energy into high-frequency mechanical vibrations, generating millions of microbubbles in liquids. The instantaneous rupture of bubbles (cavitation effect) releases shock waves, stripping calcium-magnesium salt crystal layers at a speed of 300-500m/s.
- Single-frequency Penetration
With a frequency of 20kHz, it achieves optimal cleaning effects for different materials (carbon steel/stainless steel/copper pipes) and scale thicknesses (0.5-15mm).
- Directional Propagation Technology
Energy is focused and conducted to the scaling area via waveguide rods, with an effective action range of 8-12 meters, suitable for long-distance pipeline cleaning.

4. Product Advantages (vs. Traditional Cleaning Methods)
✅ Environmental Protection: Pure physical cleaning, zero chemical agent discharge (complies with GB8978 wastewater standards).
✅ Economy: Single cleaning cost is 40% lower than pickling, reusable for 5-8 years.
✅ Safety: No need to disassemble equipment; online cleaning avoids production downtime.
✅ Compatibility: Suitable for sensitive materials like 304/316L stainless steel and titanium alloy.

5. Application Scope
(1) Energy & Power Industry
- Thermal power generation: Boiler water walls, condenser copper pipes, deaerators.
- Nuclear facilities: Main circulation pump pipelines, secondary loop heat exchangers.
- Clean energy: Photovoltaic polysilicon cooling systems, geothermal pipeline scaling.
Benefits: Reduces coal consumption by 1.5-3g/kWh, extends equipment overhaul cycles by 50%.
(2) Petrochemical Industry
- Oil refining: Catalytic cracking unit slurry systems, atmospheric-vacuum tower pipelines.
- Chemical production: Reactor jacket, PTA process pipelines, ethylene cracking quenching coolers.
- Oil & gas transportation: Wax deposition in oil pipelines, ice blockage in LNG vaporizers.
Technical edge: Avoids intergranular corrosion risks to high-alloy steel from pickling.
(3) Food & Pharmaceutical Industry
- Dairy processing: UHT ultra-high temperature sterilization pipelines, CIP cleaning loops.
- Beverage production: Sugar crystallization in filling lines, biofilms in fermentation tanks.
- Pharmaceutical systems: Purified water circulation pipelines, scale in freeze dryer plates.
Compliance: Meets FDA 21 CFR and GMP sterile cleaning standards.
(4) Shipbuilding & Marine Engineering
- Ballast water systems: Shellfish attachments in seawater pipelines.
- Engine groups: Carbonate scale in cylinder jacket cooling chambers.
- LNG carriers: Hydrate blockages in reliquefaction systems.
Special design: IP68 protection grade, adapted to high-salt fog corrosion environments.
Blue Whale Cleen, a professional manufacturer with 20 years of experience, specializes in producing and customizing various cleaning equipment. We welcome cooperation to provide you with innovative cleaning solutions for industrial scaling challenges.
