Four Tank 360L Industrial Ultrasonic Washer Dryer System for Degreasing and Precision Parts Cleaning
-
Highlight
360L industrial ultrasonic washer dryer
,ultrasonic cleaner for degreasing parts
,automotive ultrasonic cleaning system
-
Tank MaterialSUS304 Or SUS316
-
Ultrasonic Power25KW
-
Timer1-99H Adjustable
-
Heater20~95℃adjustable
-
Frequency40KHz
-
Heating Power2400
-
Applications FiledWidely Used In Hardware Industry, Automotive, Electronics, Home Appliance, Mobile Phone, Optics, Railway, Aerospace, Electroplate And Etc.
-
Place of OriginChina
-
Brand NameWhale cleen
-
CertificationCE, Rohs
-
Model NumberLanJ-6144TQ
-
Minimum Order Quantity1 units
-
PriceNegotiable
-
Packaging DetailsWooden Case Packing
-
Delivery TimeDepend on quantity
-
Payment TermsT/T
-
Supply Ability1000 units per month
Four Tank 360L Industrial Ultrasonic Washer Dryer System for Degreasing and Precision Parts Cleaning
Four Tank 360L Industrial Ultrasonic Washer Dryer System for Degreasing and Precision Parts Cleaning

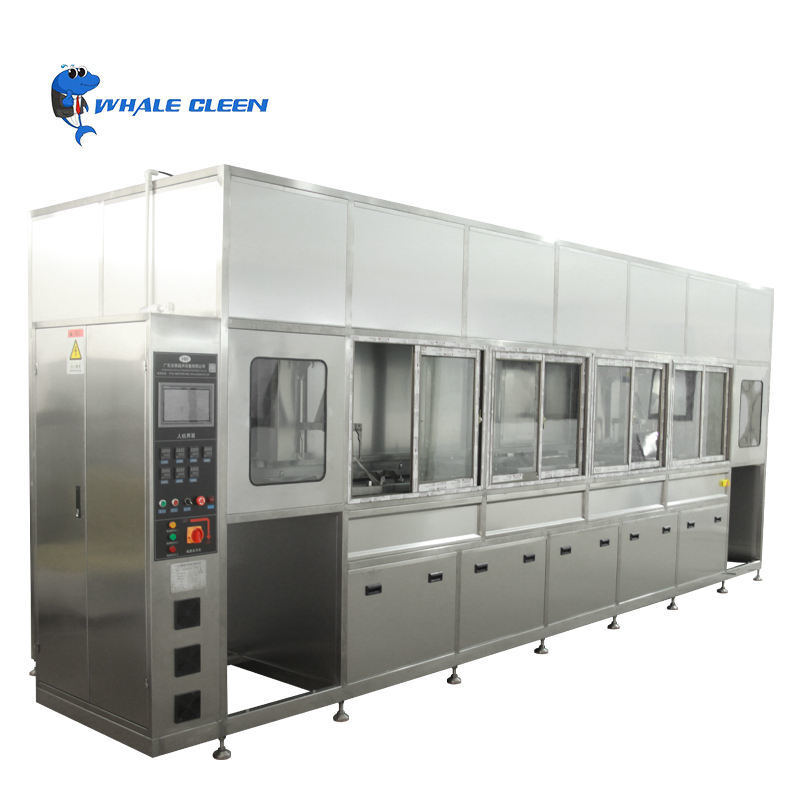

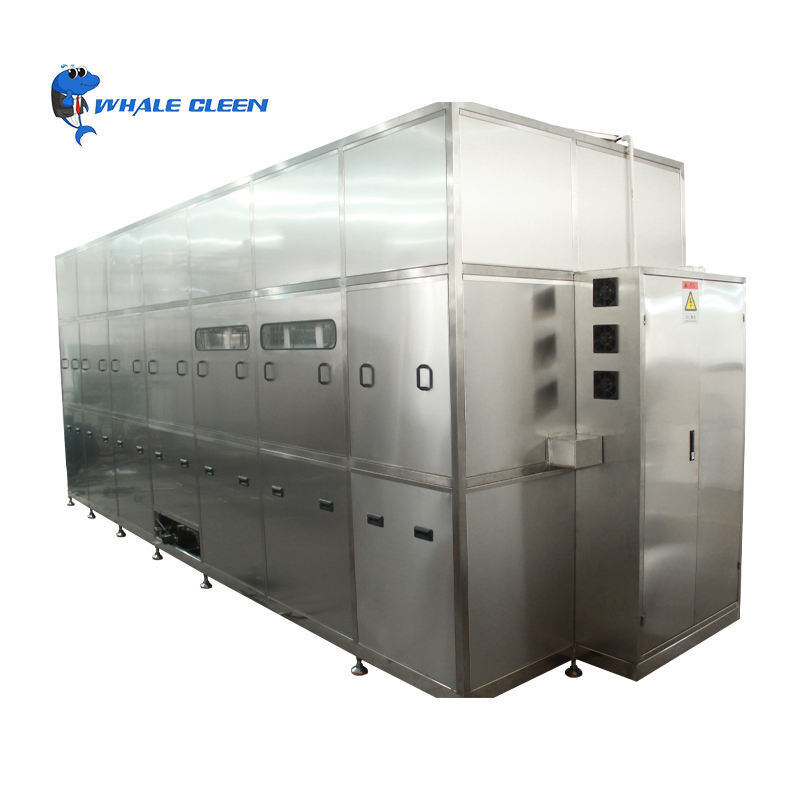

Blue Whale 360L Four Tanks Ultrasonic Washer and Dryer
Product Features
- Complete automated process with robotic arm handling basket movement between tanks
- Stainless steel frame construction with dust-proof outer panels and transparent observation windows
- Single arm servo manipulator with automatic control system for easy operation and time savings
- Fully Automatic PLC programmable control with color touch screen display
- Mechanical transmission with up/down throwing, filtering cycle, and hot air drying
- Non-standard customization available with design drawings and cleaning programs
Technical Specifications
| Machine Type | Industrial Ultrasonic Cleaner |
|---|---|
| Material | Metal / Coil |
| Application | Degreasing |
| Cleaning Process | Solvent Cleaning |
| Warranty | 1 Year |
| Condition | New |
| Power Source | Electric |
| Origin | Guangdong, China |
| Brand | Blue Whale / Whale Cleen |
| Dimensions | Tank size 850×850×500mm (customizable) |
| Power | 74,400W |
| Weight | 5000kg |
| Ultrasonic Frequency | 40Khz or 28Khz (customizable) |
| Tank Material | SUS304 or SUS316 (customizable) |
| Transducer Quantity | 144pcs for each 1st and 2nd tank |
| Power Supply | 380V 3 phases |
| Certification | CE, ROHS, ISO9001 |
| Functions | Clean, heat, filter, recirculate, rinse, air cut, dry, or customize |
Quality Assurance
We use high-quality electrical and mechanical components to ensure stable and reliable performance. Our machines are designed by experienced engineers with backgrounds in leading international manufacturing companies. Our skilled production team has extensive experience in building automated cleaning lines, with quality control covering the entire process from raw material inspection to final assembly and testing.
Professional Experience
We have collaborated with renowned brand companies, government projects, and railway departments. Our international experience includes machine installation and testing in various countries, with comprehensive after-sales support.
Payment Terms
Flexible payment options available, including 10-20% payment after installation and testing services.
After-Sales Service
We provide installation and testing services at your facility until the cleaning system is operating properly. During the warranty period, we offer 5 years of 24/7 technical support.
Customization Services
As a source manufacturer of cleaning machines, we specialize in customizing various types of non-standard cleaning equipment with fast delivery times.
System Overview
The Blue Whale fully automatic ultrasonic cleaning machine features robotic arm operation and consists of six main systems: mechanical transmission, ultrasonic, heating, drying, water supply/drainage, and electrical control. Using PLC control for easy operation, the system monitors working states and allows parameter adjustment through program modification. It automatically completes processes including rough washing, spraying, hot soaking, rinsing, bubbling, and drying, significantly reducing labor requirements and improving efficiency.
This water-based cleaning equipment uses suspension transportation with multi-position functional tanks forming a continuous production line to remove oil, dust, debris, and other contaminants from workpieces, meeting specified process requirements.
As precision cleaning equipment, it utilizes water-based cleaning agents on precision workpieces. Low alkaline cleaning solutions prepared with clean water activate water (saponification), reducing surface tension and improving activation capability to effectively remove contaminants from workpiece surfaces.
Application Fields
Widely used in hardware industry, automotive, electronics, home appliances, mobile phones, optics, railway, aerospace, electroplating, and more.
Cleaning Process
Feeding → Decarbonization → Rinsing → Ultrasonic Rough Washing → Ultrasonic Fine Washing → Ultrasonic Rinsing → Hot Air Drying → Cutting
Care Instructions
- Preparation: Ensure cleaner is clean and debris-free. Fill tank with appropriate cleaning solution and plug into grounded outlet.
- Loading: Place items in provided basket/tray without touching each other or tank sides to maintain cleaning effectiveness.
- Settings: Set cleaning time and temperature according to cleaning solution instructions. Use lower temperatures and shorter cycles for delicate items.
- Operation: Turn on ultrasonic cleaner and run for specified time. Use degassing function for a few minutes before cleaning cycle if available.
- Unloading: After cycle completion, turn off cleaner and remove basket/tray. Rinse items thoroughly with clean water to remove residue.
- Maintenance: Empty tank after each use, rinse thoroughly with clean water, and wipe dry with soft cloth. Store in clean, dry place.
Other Recommended Products
Manufacturer Strength
Whale Cleen specializes in manufacturing and customizing industrial ultrasonic cleaning machines. With 20 years of industry experience, in-house factory, and professional technical team, we provide factory-direct pricing and one-stop ultrasonic cleaning solutions for global customers.
