360L Bubble Ultrasonic Cleaning Machine 3600W With External Generator

360L Bubble Ultrasonic Cleaning Machine With Heating Function With External Generator

Product Features:

1, Bubble cleaning is without any dead angle. It can make cleaning liquid and dirt contact more thoroughly. So that the water molecules in the agitation and the joint action of ultrasonic high-speed movement of the surface stains have a lasting impact. So that the cleaning effect is cleaner.

2, Cycle filter can make high-efficiency cleaning. Use high-density absorbent cotton filter core and filtering accuracy is 10 microns. Filter oil contamination to avoid 2 times of contamination leading to repeated cleaning.

3, Imported industrial transducer, stable performance, strong power. Multi-core transducers work synchronously, the cleaning effect is beyond imagination.

4, Use a remote control generator. The power switch, time regulation, power regulation, and other functions can be controlled remotely on the portable generator. It is more convenient to use.

5, Electrical control system. Operation Button design is more humanized. It is easy to operate and it is obvious.
This product support non-standard custom, can provide design drawings and cleaning program

Product detail:

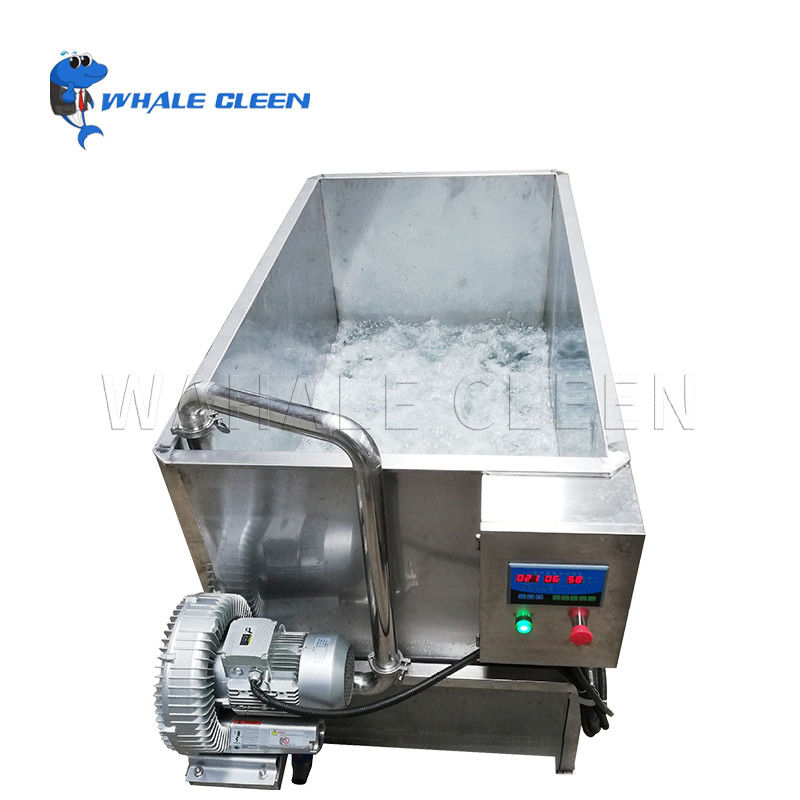

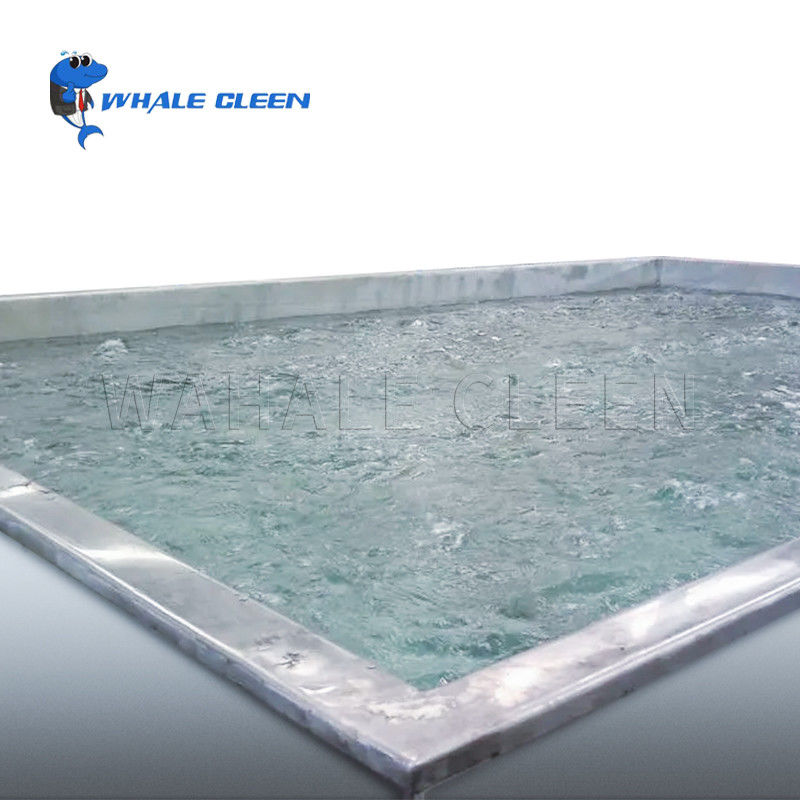

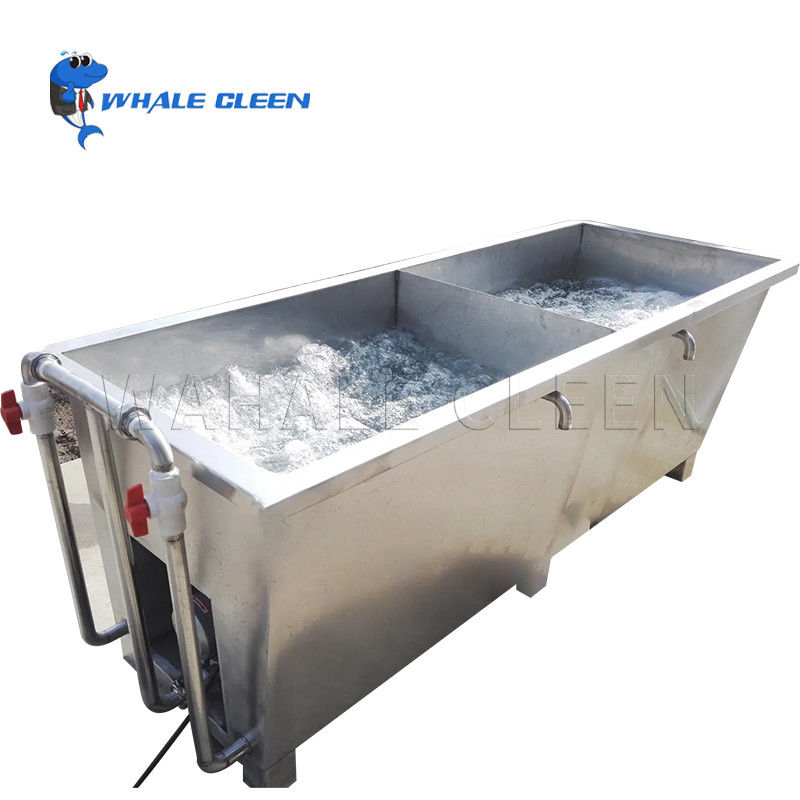

The Blue Whale Bubbling Ultrasonic Cleaner is equipped with a bubbler. Bypassing the compressed air or steam into the liquid, the bubbler - a kind of agitator - bubbles up and leads to agitation. Thus, it can thoroughly clean the workpieces.

The bubbler is usually made of a pipe with a diameter of 25 ~ 50 mm. The lower part of the bubbler is bent into a ring or a rectangle. The bubbler is placed on the bottom of the bubbler. The top of the pipe is welded to death, while the bending part on the bottom is drilled with small holes of Φ3 ~ 6 mm, in order to allow more than the pipe resistance and liquid column resistance of the Compressed air into the liquid. Small bubbles of air coming out of the pores pass through the whole liquid and are strongly mixed.

The bubbling device is more suitable for the occasion of large vessel stirring and the stirring occasion with corrosive medium. The disadvantage is that the viscosity of the stirred medium can not be too high (< 0.2 pa s) , and the stirring efficiency is low.

The advantages of the bubbling technology are:

(1) the height of the bubbling can be adjusted arbitrarily, which is suitable for the process adjustment of different products;

(2) protect the tank

(3) it has anti-blocking function;

(4) it is flexible to start and stop, and convenient to replace.

Application:

Blue whale bubble ultrasonic cleaning machine, mainly used in machinery, electronics, jewelry, optics, medicine, coating, steam and vacuum coating pre-treatment, and other related categories. For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust, and oxide on the surface of the parts, and realize one-stop processing of cleaning, rinsing, and stirring.

Specification:

Application Brief:

How Do Ultrasonic Cleaners Work?

A simple way that ultrasonic cleaners work is likening them to an automatic dishwasher, but with some added refinements. An automatic dishwasher, much the same as an ultrasonic cleaner, combines water and a detergent to remove grease, grime and other contaminants from objects being cleaned.

Applications for ultrasonic cleaners include cleaning precision optics and laboratory glassware. Instead of cleaning pots and pans and bowls, ultrasonic cleaners most often are used to clean various other metal and plastic products difficult or impossible to clean by other methods.

Components of an Ultrasonic Cleaner

• Tanks to hold the cleaning solution. Tanks should be of stainless steel; their volume depends on the size of objects being cleaned

• Ultrasonic transducers that create the cavitation and that are bonded to the bottom of the tank

• A generator to power the transducers

• Controls that range from a simple on-off switch to sophisticated microprocessors that govern cleaning time, sweep, pulse, degassing, temperature, ultrasonic frequency , ultrasonic power, auto safety shutoffs and other refinements. More on these below.

What Do Ultrasonic Transducers Do?

There are two basic types of transducers; piezoelectric (a.k.a. electrostrictive) or magnetostrictive, but their function is the same. They are excited by electric current provided by the ultrasonic cleaner's generator to vibrate at ultrasonic frequencies that cause the bottom (and sides as the case can also be) of the tank to vibrate and thus serve as a membrane. This vibration forms the vacuum bubbles that implode, (not explode) on contact with items in the ultrasonic cleaner tank thereby blasting loose and carrying away contaminants. There are also immersible transducers. Ultrasonic frequency is an important part of how ultrasonic cleaners work and is discussed next.

How to Choose an Ultrasonic Cleaner Frequency

Ultrasonic is typically defined as sound above the human range of hearing. Low frequencies such as 25,000 cycles per second or 25 kHz produce relatively large bubbles that implode more violently than those created at higher frequencies such as 37, 80 or 130 kHz that produce progressively gentle cleaning action. As an example, the radius of a cavitation bubble produced at 37 kHz is approximately 88 microns. At 80 kHz it is 41 microns.

As a bit of digression, the implosion of cavitation bubbles produce shock waves radiating from the site of the collapse and create temperatures in excess of 10,000°F and pressures in excess of 10,000 psi at the implosion site. Yet the process is so fast that there is little heat buildup and no damage to parts being cleaned. That said, one should never reach into an operating ultrasonic cleaner to check, reposition or remove parts for examination.

Removing gross contaminants from robust parts such as fabricated or cast metals requires lower frequency cleaners. Softer metals, plastics, and products with polished surfaces should be cleaned at higher frequencies. In addition to protecting polished surfaces smaller bubbles are better able to penetrate tight areas such as seams, crevices and blind holes. If you'd like more information on this particular topic check this article on selecting ultrasonic cleaner frequencies.

Our point is that purchasing decisions for an ultrasonic cleaner should be made on more than price.
