Three Tanks Industrial Ultrasonic Cleaner Automatical Ultrasonic Parts Cleaner From Cleaning Machine Manufacturer
-
Highlight
Cleaning Machine Industrial Ultrasonic Cleaner
,Three Tanks Industrial Ultrasonic Cleaner
,Automatical Industrial Ultrasonic Cleaner
-
Tank MaterialSUS304 Or SUS316
-
Ultrasonic Power25KW
-
Timer1-99H Adjustable
-
Heater20~80C Adjustable
-
Frequency28KHz Or 40KHz
-
Heating Power8000W
-
Prodcut NameBlue Whale Multi Tanks PLC Fully Automatic Cleaning Machine Customizable Mechanical Arm Automated Ultrasonic Washing System
-
Total Power24000W
-
Place of OriginChina
-
Brand NameWhale cleen
-
CertificationCE, Rohs，CCC
-
Model NumberLanJ-Z3FA
-
Minimum Order Quantity1 units
-
PriceNegotiable
-
Packaging DetailsWooden Case Packing
-
Delivery TimeDepend on quantity
-
Payment TermsT/T
-
Supply Ability1000 units per month
Three Tanks Industrial Ultrasonic Cleaner Automatical Ultrasonic Parts Cleaner From Cleaning Machine Manufacturer
Three Tanks Industrial Ultrasonic Cleaner - Fully Automatic Cleaning System
Product Overview

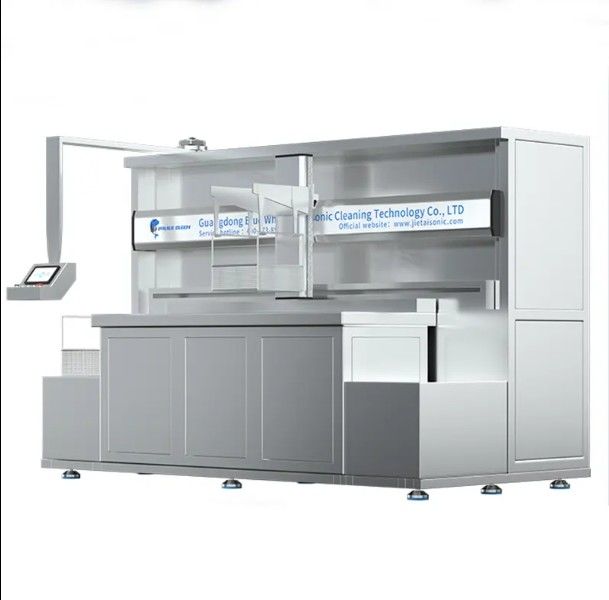

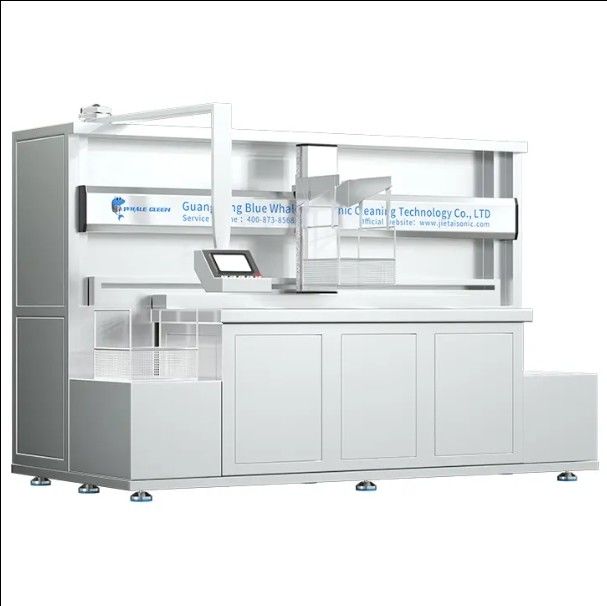

Blue Whale Three Tanks PLC Fully Automatic Cleaning Machine - Customizable Solution
Key Features
- External structure: Stainless steel frame with dust-proof outer packing door plate and transparent observation window
- Single arm servo manipulator with automatic control system
- Fully Automatic PLC programmable control with light touch color display screen for easy monitoring and operation
- Mechanical transmission with up/down throwing, filtering cycle, and hot air drying
- Supports non-standard customization with design drawings and cleaning program development
Company Advantages
Quality Control: We use high-quality electrical and mechanical components to ensure stable and reliable performance. Our machines are designed by experienced engineers and built by skilled workers with years of experience in automated cleaning lines.
Professional Experience: We have worked with famous brand companies, government projects, and railway departments. Our international experience includes installation and testing services worldwide.
Flexible Payment: We accept flexible payment terms, including 10-20% payment after installation and testing services.
After-Sales Service: We provide installation and testing services at your facility until the cleaning system is working properly. Warranty includes 1-5 years with 24/7 support.
Customization Services: As a source manufacturer, we can customize various types of non-standard cleaning machines with fast delivery.
Technical Specifications
| Attribute | Specification |
|---|---|
| Machine Type | Industrial Ultrasonic Cleaner |
| Power Source | Electric |
| Cleaning Process | Solvent Cleaning |
| Material Compatibility | Glass / Ceramic / Plastic / Metal / Coil |
| Condition | New |
| Origin | Guangdong, China |
| Brand | Blue Whale / Whale Cleen |
| Primary Use | Degreasing |
| Power | 3000W |
| Dimensions | Tank size 700*500*500mm (customizable) |
| Warranty | 1 Year |
| Weight | 360 kg |
| Ultrasonic Frequency | 40Khz or 28Khz (customizable) |
| Tank Material | SUS304 or SUS316 (customizable) |
| Tank Capacity | 175 Litre per tank (customizable) |
| Heating Power | 4500W (customizable) |
| After Warranty Service | Video technical support |
| After-sales Service | Free spare parts |
| Function | Clean, filter, rinse, dry (customizable) |
| Certification | CE, ROHS, ISO9001 |
| Voltage | 110/220/380V |
The Blue Whale wafer with robotic arm fully automatic ultrasonic cleaning machine consists of six main systems: mechanical transmission, ultrasonic, heating, drying, water supply/drainage, and electrical control. Using PLC control for easy operation, the system allows convenient parameter adjustment and process flow modification through program changes.
This precision cleaning equipment uses water-based cleaning agents to clean precision workpieces. The system prepares low alkaline cleaning solution with clean water, activating water through saponification to reduce surface tension and improve activation capability, effectively removing oil, dust, and debris from workpiece surfaces.
Application Fields
Widely used in hardware industry, automotive, electronics, home appliances, mobile phones, optics, railway, aerospace, electroplating, and various other industries.
Cleaning Results
Operation & Maintenance Instructions
- Preparation: Ensure the cleaner is clean and free of debris. Fill the tank with appropriate cleaning solution and plug into a grounded outlet.
- Loading: Place items in the provided basket or tray, ensuring they don't touch each other or the tank sides to maintain cleaning effectiveness.
- Settings: Set cleaning time and temperature according to cleaning solution instructions. Use lower temperatures and shorter cycles for delicate items.
- Operation: Turn on the ultrasonic cleaner and run for specified cleaning time. Use degassing function for a few minutes before starting the cleaning cycle if available.
- Unloading: After completion, turn off the cleaner and remove the basket. Rinse items thoroughly with clean water to remove cleaning solution residue.
- Maintenance: After each use, empty the tank, rinse thoroughly with clean water, and wipe dry with a soft cloth. Store in a clean, dry place.
Certifications & Quality Assurance
Please Note: All photos on this site are real. Due to changes in lighting, shooting angle, and display resolution, images may have some degree of chromatic aberration. Guangdong Blue Whale Clean is a professional Ultrasonic Cleaner manufacturer with 20 years of history in Guangdong, China. Our products are updated and upgraded annually. If you are interested in this product and want more details, please contact us online or via email. Our professional sales team is ready to serve you.
