Vacuum Industrial Cleaner Car Injector Cleaning Machine Ideal For Diesel Fuel Injectors Cleaning
-
Highlight
Diesel Fuel Injectors Cleaning Machine
,Industrial Cleaner Car Injector Cleaning Machine
-
Tank MaterialSUS304 Or SUS316
-
Ultrasonic Power0~1800W Adjustable For Each Tank
-
Timer1-99H Adjustable
-
Heater20~80C Adjustable
-
Frequency28KHz
-
Heating Power6000W Or Customize
-
Prodcut NameHydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine
-
Other ServiceSupport Non-standard Customization
-
Cleaning ProcessWater-containing Process And Oil-containing Process
-
Fit ForCar Injector,automatical Parts And Diesel Fuel Injectors Cleaning
-
Place of OriginChina
-
Brand NameWhale cleen
-
CertificationCE, Rohs
-
Model NumberLanJ-6060TQ
-
Minimum Order Quantity1 units
-
PriceNegotiable
-
Packaging DetailsWooden Case Packing
-
Delivery TimeDepend on quantity
-
Payment TermsT/T
-
Supply Ability1000 units per month
Vacuum Industrial Cleaner Car Injector Cleaning Machine Ideal For Diesel Fuel Injectors Cleaning
Vacuum Industrial Cleaner Car Injector Cleaning Machine
Ideal For Diesel Fuel Injectors Cleaning

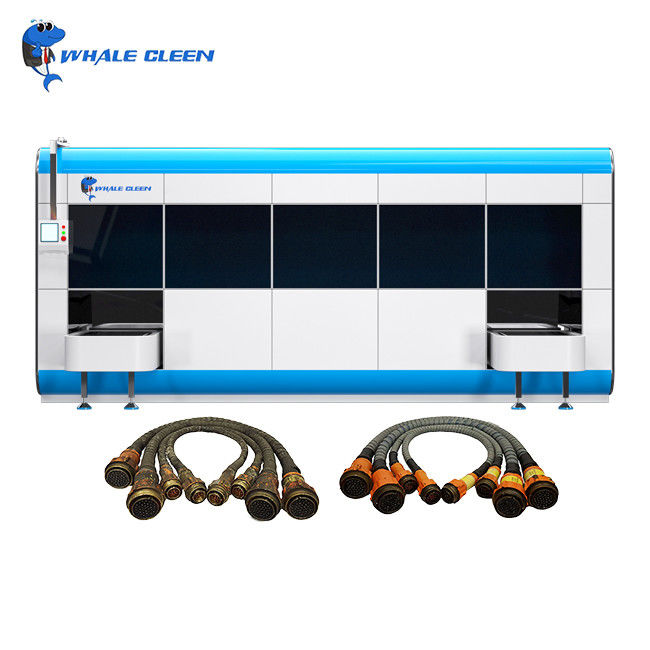

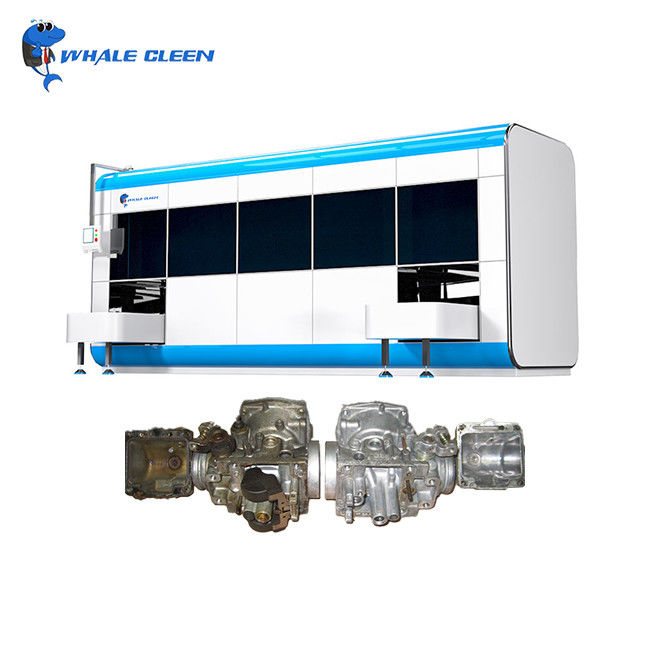

Blue Whale Six Tank Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine
Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine Advantages
- Good cleaning effect: Strong cleaning power for metal processing oil using hydrocarbon cleaning agents. Features vacuum cleaning and steam bath for superior surface cleanliness and dryness, especially effective for batch oil removal of stamping, drawing, and copper/aluminum processing parts with slots, blind holes, and deep holes.
- Good material compatibility: Hydrocarbon cleaning agent contains no moisture, chlorine, sulfur or corrosive substances. No corrosion or oxidation of metal materials; no adverse effects on plastics and rubber; provides anti-rust function for iron parts.
- Extremely low toxicity: Ultra-low toxicity in toxicological tests, non-carcinogenic, completely volatile at room temperature and heating states, safe for operators with no residue.
- Low cost of use: Total power approximately 40KW, average consumption about 10KW per hour (40% savings compared to traditional water-based equipment). Equipped with distillation recovery device for unlimited solvent use with 99% recovery rate and average loss of 0.8L/H.
- Safety: High flash point evaporation solvents with flame retardant properties. All cleaning and drying processes occur in vacuum sealed chambers isolated from oxygen and ignition points. Explosion-proof design with automatic fire extinguishing system and multi-layer safety protection.
- Environmental protection: Hydrocarbon cleaning agent is automatically degradable. Waste liquid can be burned in coal-fired or oil-fired boilers with combustion products mainly CO2 and water. No ozone depletion with zero ozone destruction coefficient.
Product Features
- Vacuum, high temperature ultrasonic cleaning machine with excellent cleaning effect
- First and second tanks can be equipped with swinging, throwing, rolling equipment
- Distillation recovery machine for solvent circulation distillation and zero discharge of cleaning fluid
- Completely closed cavity structure with low solvent loss
- Fully automated with comprehensive monitoring
- Supports non-standard customization with design drawings and cleaning programs
Quality Control
We use high-quality electrical and mechanical components to ensure stable and reliable performance. Our machines are designed by highly experienced engineers who have previously developed equipment for leading international manufacturing companies. Our production team consists of skilled workers with many years of experience in building automated cleaning lines. Quality control covers the entire process from raw material inspection to final machine assembly and testing.
Professional Experience
We have worked with many famous brand companies, government projects, and railway departments. With 20 years of international experience in machine installation and testing worldwide, we provide comprehensive service to customers after purchase.
Payment Terms
We offer flexible payment terms, including 10-20% payment after installation and test service. Additional support available as needed.
After Sales Service
We provide installation and testing services for automatic cleaning lines at your facility until proper operation is achieved. We offer 5-year warranty with 24/7 support during warranty period.
Professional Customization
We professionally customize various types of cleaning machines to provide cost-effective cleaning solutions and one-stop procurement services.
Cleaning Process
Water-containing process: Dehydration → Rough washing → Vacuum fine washing → Vacuum bath → Vacuum drying
Oil-containing process: Rough washing → Vacuum fine washing → Vacuum bath → Vacuum drying
Technical Parameters
| Six tank hydrocarbon vacuum automatic ultrasonic cleaning machine | |
| Inner slot size: | L600*W600*H500MM (effective size) |
| Inner slot material: | SUS304 thickness: 10.0MM |
| External plate quality: | SUS304 thickness: 1.0MM |
| First vacuum ultrasonic cleaning tank: | Ultrasonic power: 3KW, vibration plate installation, frequency: 28KHz, one ultrasonic generator, adjustable time and temperature, throwing system, heating power 12KW, filter circulation system: 1 set |
| Second vacuum ultrasonic cleaning tank: | Ultrasonic power: 5.4KW, vibration plate installation, frequency: 28KHz, two ultrasonic generators, heating power 12KW, adjustable time and temperature, filter circulation system: 1 set, throwing system, conductivity meter |
| Third vacuum ultrasonic cleaning tank: | Ultrasonic power: 5.4KW, vibration plate installation, frequency: 28KHz, two ultrasonic generators, heating power: 12KW, adjustable time and temperature, filter circulation system: 1 set, throwing system, conductivity meter |
| Fourth vacuum ultrasonic cleaning tank: | Ultrasonic power: 3KW, vibration plate installation, frequency: 28KHz, one ultrasonic generator, heating power: 12KW, adjustable time and temperature, filter circulation system: 1 set, throwing system, conductivity meter |
| Fifth tank steam bath: | Steam bath, heating power 27KW, with filter circulation system |
| Sixth tank vacuum drying: | Heating power: 15KW |
| Machine: | Equipped with 8 cleaning baskets, using conveyor belt loading and unloading |
Application Fields
| Industry | Cleaning Products and Materials | Cleaning Dirt |
|---|---|---|
| Semi-conductor | Integrated circuit, power tube, silicon wafer, diode, lead frame, capillary, tray, etc. | Hards, etching oil, polishing wax, dust particles, etc. |
| Electrical & electronic machine | Tube parts, cathode ray tube, printed circuit board, quartz parts, electronic components, telephone switching equipment, speaker components, power meter, LCD glass, core iron parts, computer floppy disk, video parts, head, photo die mask, etc. | Fingerprint, powder, cutting oil, stamping oil, iron filings, polishing materials, walnut powder, polishing wax, resin, dust, etc. |
| Precision machine | Bearing, sewing machine parts, typewriter, textile, machine, optical-mechanical device, gas valve, watches cameras, metal filter | Machine cutting oil, iron filings, polishing powder, fingerprint, oil, grease, dirt, etc. |
| Optical device | Glasses, lens, prism, optical lens, filter lens, glass device, film, optical fiber, etc. | Plastic resin, paraffin, fingerprinting, etc. |
| Hardware & machinery parts | Bearing, gear, ball, metal shaft parts, tools, adjustable valve and cylinder parts, burner, compressors, hydraulic press, gun and ultracentrifuge, city water faucet, etc | Cutting oil, iron filings, grease, polishing powder, fingerprint and so on. |
| Medical instrument | Medical instrument, denture, etc. | Iron filings, polishing powder, oil, stamping oil, dirt, etc. |
| Electroplate | Galvanized parts, mold, stamping parts, etc. | Polishing scrap iron, oil, black iron shell, rust, oxidation shell, scrap iron, polishing powder, stamping oil, dirt, etc. |
| Car parts | Piston ring, carburetor, flow meter housing, compressor shell, electrical components, etc. | Iron filings, polishing powder, oil stamping oil, dirt, etc. |
| Chemical fiber | Chemical or artificial fiber nozzle filter protector chemical fiber texture, etc. | The Chemical colloid, glue, and other solid material, dust, etc. |
Cleaning Effect
Honors and Certificates
Please note:
All photos on this site are real. Due to changes in lighting, shooting angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong Blue Whale Clean is a professional Ultrasonic Cleaner manufacturer with 20 years of history in GongDong, China. Our products are updated and upgraded every year.
If you are interested in this product and want to know more details, please contact us online or email us. We will have professional sales team service for you. Thank you for your time.
