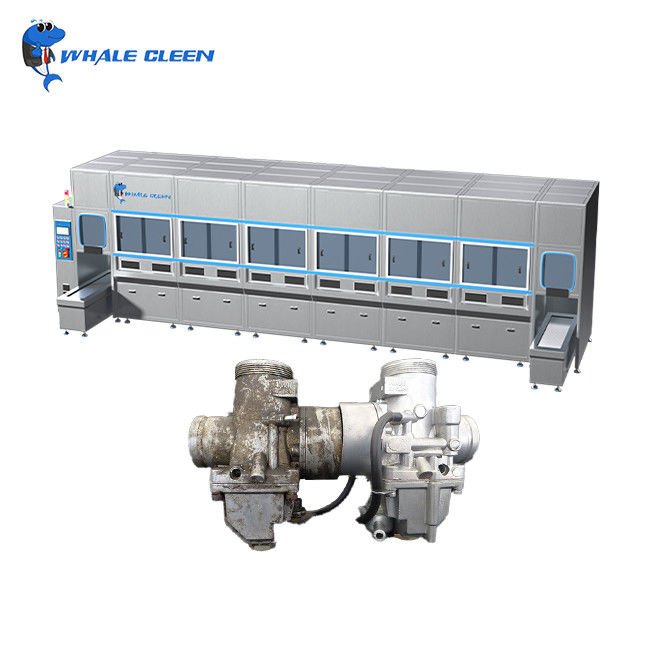

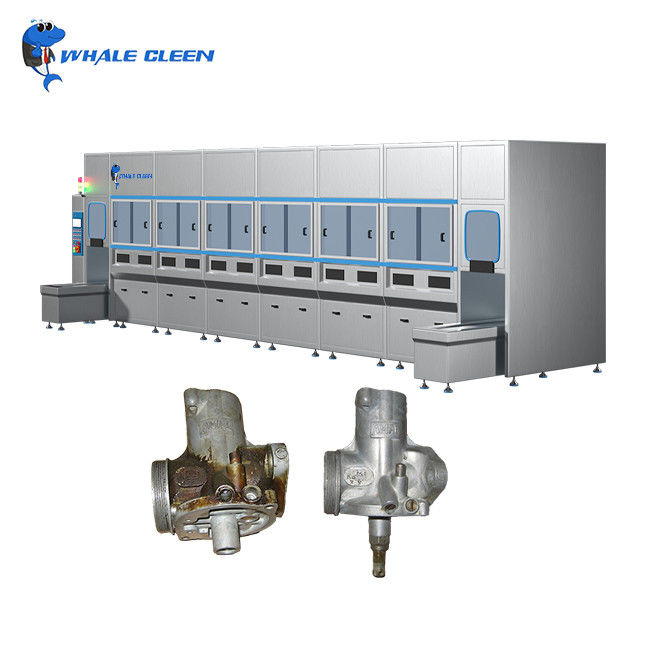

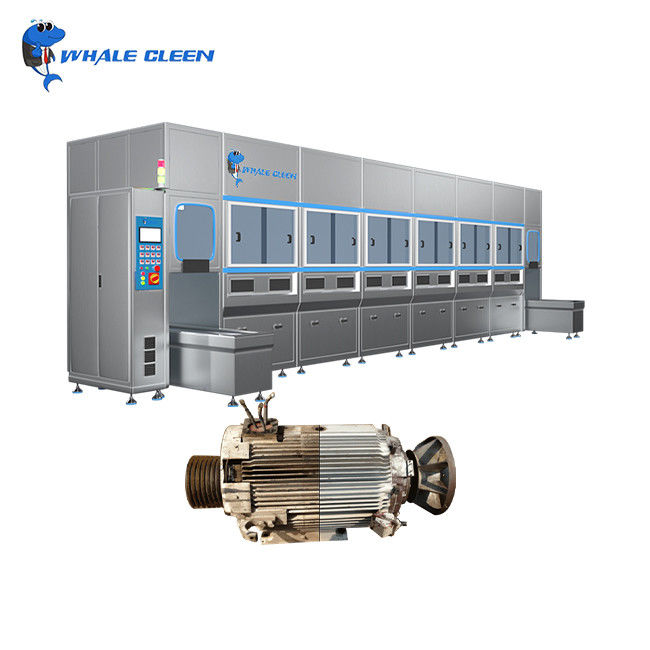

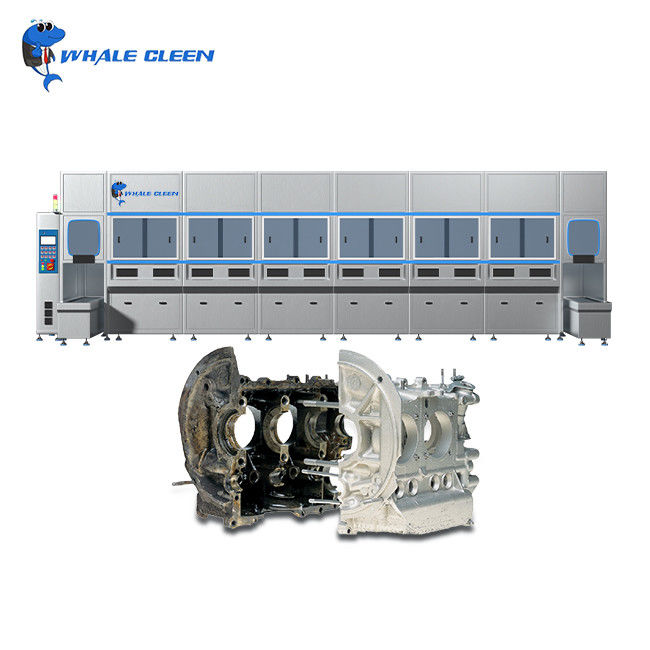

Blue Whale Multi-Tank Full Automatic Ultrasonic Cleaner Loading Unloading Port

1. Product Features:

1. The whole process of putting the basket into the cleaning tank, moving the basket out and moving the basket between the tanks is completed from the manipulator to the left to the right.

2.External structure stainless steel frame + stainless steel dust proof outer packing door plate + transparent observation window.
3. Single arm servo manipulator with automatic control system.
4. Fully Automatic PLC programmable control, light touch color display screen, easy to monitor management and operation.
down throwing, filtering cycle, hot air drying, this product support non-standard custom, can provide design drawings and cleaning program.

1.Quality Control:

We are using hight quality material like Simens, Schneider electrical parts. Our machine is designed by experienced engineer who have designed machines for Foxconn, Cummins and BOSCH. The workers also have years experience building automatical cleaning line. Our QC system is covering from raw material to finishing machine.

2.Professional Experience:

We have worked with many famous brand company and goverment project like Foxconn, Cummins and railway department. We also have 20 years international experience with installating and testing machine in other country. We will provide full service for our customer after purchasing.

3.Payment Term:

We can accept flexible payment term due to different situation like 10~20% payment after installation and test service.

We also need some support from you in some case.

4.After Sales Service:

We will provide installation and test service for automatical cleaning line at your facility until cleaning is working properly.

And we offer 5 years with 24/7 work during warranty period.

5.Professional customization

The company can professionally customize various types of cleaning machines to provide customers with cost-effective cleaning solutions to meet your one-stop procurement services.

2.Product Advantages:

1). 3D Dynamic Cleaning Coverage
- The gantry arm supports XYZ-axis linkage, enabling precise positioning for complex workpiece features (e.g., blind holes, deep grooves). Combined with multi-angle scanning of ultrasonic transducers, it ensures thorough cleaning without dead zones.

2). Multi-Process Integration
- Integrates ultrasonic cleaning, high-pressure spraying, rotating brushes, and hot air drying modules. The arm dynamically switches tool heads to achieve fully automated "cleaning-rinsing-drying" workflows.

3). Intelligent Flexible Control
- Equipped with a PLC + touchscreen control system, allowing preset of multiple cleaning programs. Adaptive parameter adjustment (e.g., ultrasonic power, arm movement speed) based on workpiece size and contamination level.

4). High-Precision Motion System
- Utilizes servo motors + precision linear guides, achieving ±0.1mm positioning accuracy. Maintains a constant distance between cleaning tools and workpiece surfaces to prevent over-cleaning or avoid missing cleaning.

5). Heavy Load & High Stability
- The gantry frame structure supports workpieces over 200kg. Dual-column design reduces vibration, suitable for cleaning heavy components like automotive engine blocks and aerospace turbine blades.

6). Eco-Friendly & Energy-Saving
- Features a circulation filtration system (filtration accuracy ≤5μm) to recover over 80% of cleaning fluid. Ultrasonic power auto-regulation technology reduces energy consumption by over 30%.

7). Safety Protection System
- Full-enclosure protective cabin + light curtain sensors prevent operator contact. Emergency stop devices in arm movement areas ensure automatic braking during malfunctions.

8). Multi-tank design: Gantry arm cleaning machines usually have multiple independent cleaning tanks, and each tank can perform cleaning operations independently. This allows simultaneous processing of multiple objects or batch operation of different cleaning processes.

3.Technical parameter

4.Application Fields of Gantry Arm Industrial Fully Automatic Cleaning Machine

1. Automotive Manufacturing

- Cleaning of precision components such as engine blocks, transmission gears, brake discs, and aluminum alloy wheels.

2. Aerospace

- Cleaning of complex structural parts like turbine blades, aircraft engine casings, landing gear components, and hydraulic pipelines.

3. Medical Devices

- Cleaning of biocompatible components including laparoscopic instruments, dental implants and endoscope lumens.

4. Electronics Manufacturing

- Cleaning of micro-components such as printed circuit boards (PCBs), semiconductor wafers, electronic connectors, and precision sensors.

5. Metal Processing

- Cleaning of metal products like mold cavities, bearing rollers, gearbox housings, and stainless steel pipes.

6. Food & Beverage

- Cleaning of production line equipment such as stainless steel tank interiors, filling nozzles, conveyor rollers, and glass/can containers.

7. Rail Transportation

- Cleaning of rail transit components including high-speed train brake discs, bearing housings, air conditioning filters, and gearbox casings.

8. Nuclear Industry

- Specialized cleaning of nuclear reactor fuel assemblies, radioactively contaminated tools, and radiation shielding components.

9. New Energy

- Cleaning of new energy materials such as lithium battery electrode sheets, photovoltaic modules, and hydrogen fuel cell plates.

5. Customer Site Installation

6.Cleaning Effect:

7.Honors and certificates

Please note:

All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong Blue Whale Clean is a professional Ultrasonic Cleaner manufacturer with 20 years of history in GongDong,China. Our products are updated and upgraded every year.
If you are interested in this product and want to know more details, please contact us on line or E-mail to us, we will have professional salesman team service for you. Thank you for your time.
