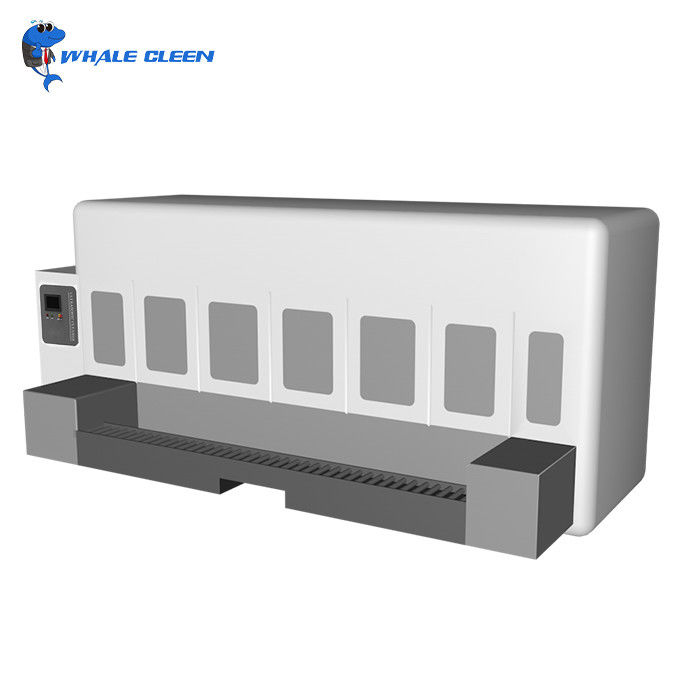

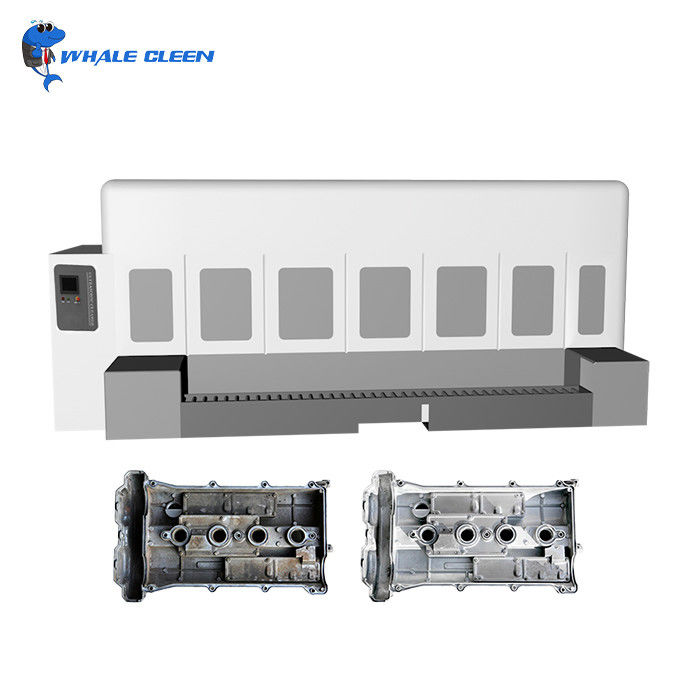

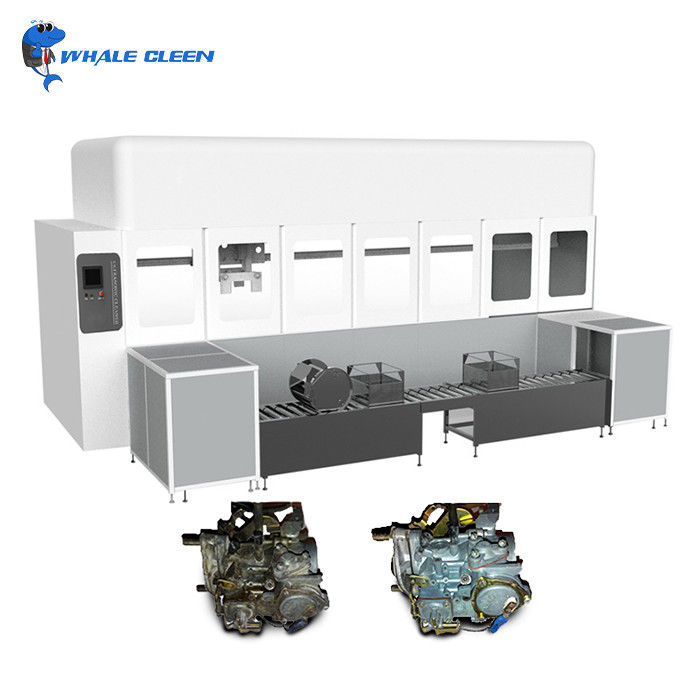

Custom Industrial ITO Conductive Glass Automatic Ultrasonic Cleaning Machine for Touchscreen LCD

The Industrial ITO (Indium Tin Oxide) Conductive Glass Automatic Ultrasonic Cleaning Machine is specialized equipment designed for meticulous cleaning of ITO conductive glass used in touchscreens, liquid crystal displays (LCDs), and other optoelectronic devices.

The core cleaning process utilizes ultrasonic cavitation, where ultrasonic waves generate microscopic vacuum bubbles in the cleaning liquid. These bubbles collapse violently, creating intense shockwaves and micro-jets that effectively dislodge contaminants from ITO conductive glass surfaces.

The machine features an automated system controlling the entire cleaning process, including automatic feeding/discharging, sequential cleaning in multiple tanks with different cleaning agents, and precise control of cleaning time, temperature, and ultrasonic power.

• High-precision cleaning for microscopic contaminants
• Fully automated operation with feeding, cleaning, rinsing, and drying
• Multi-stage cleaning system with different cleaning agents
• Adjustable ultrasonic power, cleaning time, and temperature
• Customizable design with design drawings and cleaning programs

• Improved product quality and reliability
• Increased productivity for high-volume production
• Cost-effective operation with reduced labor and material consumption
• Environmentally friendly with efficient water-recycling systems

1. Loading: Automatic feeding with precise positioning
2. Pre-cleaning: Mild alkaline solution with low-frequency ultrasonic waves
3. Main Cleaning: Stronger cleaning solution with high-frequency ultrasonic waves
4. Rinsing: Multiple stages with deionized water
5. Drying: Hot air or nitrogen drying systems
6. Unloading: Automatic transfer to next production process

• Liquid Crystal Display (LCD) Manufacturing
• Touchscreen Production
• Solar Cell Industry
• Optical Devices and Semiconductor Manufacturing

We use high-quality electrical and mechanical components with comprehensive quality control covering raw material inspection to final machine assembly and testing.

20 years of international experience working with famous brand companies, government projects, and railway departments.

Flexible payment options including 10-20% payment after installation and testing services.

Installation and testing services at your facility with 5-year warranty and 24/7 support during warranty period.

Customized cleaning machines and cost-effective cleaning solutions for one-stop procurement services.
