5 Tanks Industrial Ultrasonic Cleaning Machine 4500W 108L Ultrasonic Cleaner for Metal Parts
-
Highlight
5 tanks industrial ultrasonic cleaner
,4500W ultrasonic cleaning machine
,108L ultrasonic cleaner for metal parts
-
HeaterRoom Temp. To 95℃ Adjustable
-
Timer1-99H Adjustable
-
Ultrasonic Frequency40Khz Or 28Khz, Can Be Customize
-
MaterialSUS304 Or SUS316
-
Power0-4500W
-
Product NameUltrasonic Washer
-
MaterialMetal/Coil/Plastic/Glass/Ceramic
-
Each Tank Capacity38L, Or Customize
-
Dimension(l*w*h)Tank Size 500*300*250mm, Can Be Customized
-
Place of OriginGuangdong,China
-
Brand NameWhale Cleen
-
CertificationCE,CCC
-
Model NumberLanJ-J590X2 (108L)
-
Minimum Order Quantity1 Units
-
PriceNegotiable
-
Packaging DetailsWooden Case Packing
-
Delivery TimeDepend On Quantity
-
Payment TermsT/T
-
Supply Ability1000 Units Per Month
5 Tanks Industrial Ultrasonic Cleaning Machine 4500W 108L Ultrasonic Cleaner for Metal Parts
The LanJ-J590X2 (108L) Five Tanks Industrial Ultrasonic Cleaner is a high-efficiency, multi-stage ultrasonic parts washing system designed for manufacturers who require stable, repeatable, and high-volume cleaning results. Featuring multiple ultrasonic tanks, heating tanks, and flexible customization options, this machine is ideal for complex industrial cleaning workflows.
Built for continuous production environments, it combines ultrasonic cleaning, heating, rinsing, and drying preparation into one integrated system—helping buyers reduce labor costs, improve cleanliness standards, and scale output.
From a procurement perspective, the LanJ-J590X2 Five Tanks Industrial Ultrasonic Cleaner solves common industrial cleaning challenges:
- Multi-stage cleaning in one system - ideal for degreasing + rinsing + final cleaning
- High total ultrasonic power (4500W) - ensures strong cavitation for heavy oil and residue removal
- Independent tank control - flexible process design for different part requirements
- Large 108L tank capacity (each tank) - suitable for batch processing and medium-to-large parts
- Industrial-grade construction - SUS304 / SUS316 stainless steel for long service life
- Customizable configuration - tank size, frequency, material, and layout can be tailored
This makes it a reliable choice for buyers looking for a long-term industrial ultrasonic cleaning solution, not a light-duty machine.
- Pre-clean / Degreasing Tank - Removes heavy oil and machining residues
- Ultrasonic Cleaning Tank (Stage 1) - Deep cavitation cleaning of complex surfaces
- Ultrasonic Cleaning Tank (Stage 2) - Enhanced precision cleaning
- Rinsing / Fine Cleaning Tank - Reduces chemical residue carryover
- Heating / Preparation Tank - Improves drying efficiency or prepares parts for next process
This staged design improves cleaning consistency and helps meet higher cleanliness standards required in export and OEM manufacturing.
The LanJ-J590X2 Five Tanks Industrial Ultrasonic Cleaner is widely used in:
- Automotive & auto parts manufacturing
- CNC machining & metal fabrication
- Hardware, fasteners, and stamping parts
- Precision mechanical components
- Electronic & electrical metal housings
- Maintenance, overhaul, and refurbishment workshops
It is suitable for cleaning metal, coils, plastic, glass, and ceramic components.

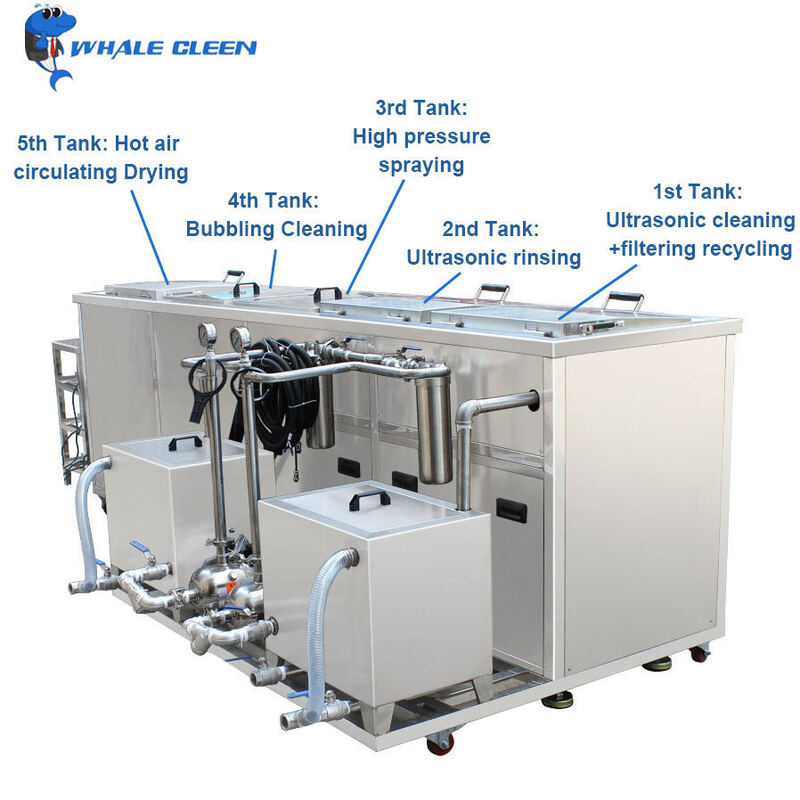

Based on the actual machine design shown above, the LanJ-J590X2 (108L) Five Tanks Industrial Ultrasonic Cleaner adopts a linear, modular structure with independent tank functions, ensuring a smooth and efficient multi-stage cleaning process.
- 1st Tank - Ultrasonic Cleaning + Filtering Recycling
Designed for heavy degreasing, this tank integrates ultrasonic cleaning with a filtration and recycling system to remove machining oil, grease, and solid contaminants while extending solution service life. - 2nd Tank - Ultrasonic Rinsing
Provides secondary ultrasonic rinsing to reduce chemical carryover and improve surface cleanliness before further processing. - 3rd Tank - High Pressure Spraying
Equipped with high-pressure spray pipes to flush residues from blind holes, channels, and complex geometries where ultrasonic cavitation alone may not be sufficient. - 4th Tank - Bubbling Cleaning
Air bubbling agitation enhances rinsing performance, improves liquid circulation, and ensures uniform cleaning across all part surfaces. - 5th Tank - Hot Air Circulating Drying
Integrated hot air drying system rapidly removes residual moisture, shortening cycle time and preparing parts for assembly, coating, or packaging.
This structured layout allows buyers to customize or adjust the process flow according to different cleanliness standards or production requirements.
| Item | Specification |
|---|---|
| Model Number | LanJ-J590X2 |
| Machine Type | Industrial Ultrasonic Cleaner |
| Cleaning Type | Five Tanks Ultrasonic Cleaning System |
| Use | Industrial Degreasing & Parts Washing |
| Cleaning Process | Solvent Cleaning |
| Condition | New |
| Brand Name | Blue Whale / Whale Cleen |
| Place of Origin | Guangdong, China |
| Each Tank Capacity | 108L (customizable) |
| Tank Dimensions (L×W×H) | 600×450×400 mm (customizable) |
| Tank Material | SUS304 or SUS316 Stainless Steel (customizable) |
| Ultrasonic Frequency | 28kHz or 40kHz (customizable) |
| Ultrasonic Power | 1500W for 1st, 2nd & 4th tanks (Total 4500W) |
| Transducer Quantity | 30 pcs per ultrasonic tank (Total 90 pcs) |
| Heating Power | 3kW for 1st, 2nd, 4th & 5th tanks (Total 12kW) |
| Temperature Range | Room temperature to 95°C adjustable |
| Total Power | 16.5kW |
| Power Supply | AC 220-240V / 380V, 50/60Hz (optional) |
| Weight | 280 kg |
| After-sales Service | Free spare parts |
| After-warranty Service | Video technical support |
| Warranty | 1 Year |
Yes. Tank quantity, function sequence, and ultrasonic distribution can be customized based on your cleaning process.
28kHz is recommended for heavy oil and strong contamination; 40kHz is better for precision parts and delicate surfaces.
Yes. The system can be designed to work with baskets, conveyors, or robotic loading upon request.
The machine supports most industrial solvent-based or water-based cleaning solutions. Our engineers can advise based on your parts.
- Quality Control: We use high-quality electrical and mechanical components to ensure stable and reliable performance. Our machines are designed by highly experienced engineers who have previously developed equipment for leading international manufacturing companies. Our production team consists of skilled workers with many years of experience in building automated cleaning lines. Our quality control system covers the entire process, from raw material inspection to final machine assembly and testing.
- Professional Experience: We have worked with numerous well-known manufacturing enterprises and government projects, accumulating extensive project implementation experience. We have many years of international experience in machine installation, commissioning, and on-site testing overseas. We are committed to providing comprehensive and reliable after-sales support and services to ensure long-term customer satisfaction after purchase.
- Payment Terms: Flexible options including 10-20% payment after installation and testing.
- After Sales Service: Installation and testing service at your facility until proper operation, with 1-year warranty and 24/7 support.
- Non-standard Customization: Source manufacturer capable of customizing various non-standard cleaning machines with fast delivery.
- Preparation: Ensure cleaner is clean and free of debris before use. Fill with appropriate cleaning solution and plug into grounded outlet.
- Loading: Place items in provided basket/tray without touching each other or tank sides.
- Settings: Set time and temperature according to cleaning solution instructions (lower for delicate items).
- Operation: Run degassing function if available before starting cleaning cycle.
- Unloading: Rinse items thoroughly with clean water after cycle completes.
- Maintenance: Empty tank, rinse thoroughly, and wipe dry after each use.
If you are sourcing a reliable Five Tanks Industrial Ultrasonic Cleaner or planning a customized cleaning line, the LanJ-J590X2 (108L) is a proven and scalable option.
