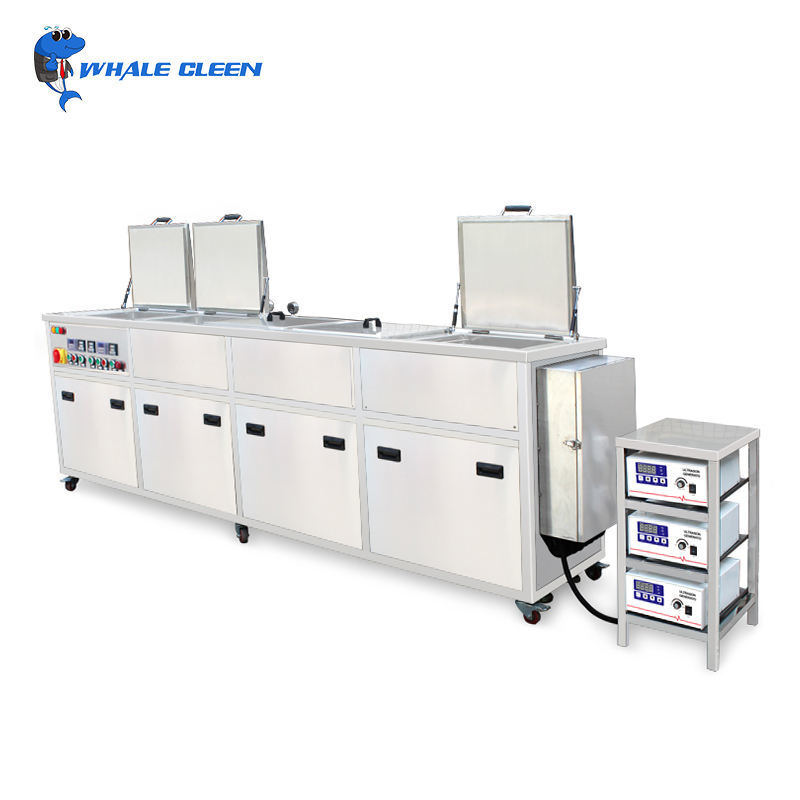

360L Four Tanks Ultrasonic Cleaner from Ultrasonic Washer Manufacturer With Factory Price
-
Highlight
360L ultrasonic cleaner with four tanks
,industrial ultrasonic washer manufacturer
,large capacity ultrasonic cleaner factory price
-
HeaterRoom Temp. To 95℃ Adjustable
-
Timer1-99H Adjustable
-
Ultrasonic Frequency40Khz Or 28Khz, Can Be Customize
-
MaterialSUS304 Or SUS316
-
Power0-3600W Adjustable For Each 1st 2nd 3rd Tank, Total 10800W
-
Product NameUltrasonic Washer
-
Cleaning MaterialMetal/Coil/Plastic/Glass/Ceramic
-
Dimension(l*w*h)Tank 1000*600*600mm, Or Can Be Customized
-
Heating Power9KW Each Tank, Total 36KW
-
Place of OriginGuangdong,China
-
Brand NameWhale Cleen
-
CertificationCE,CCC
-
Model NumberLanJ-J472M (360L)
-
Minimum Order Quantity1 Units
-
PriceNegotiable
-
Packaging DetailsWooden Case Packing
-
Delivery TimeDepend On Quantity
-
Payment TermsT/T
-
Supply Ability1000 Units Per Month
360L Four Tanks Ultrasonic Cleaner from Ultrasonic Washer Manufacturer With Factory Price

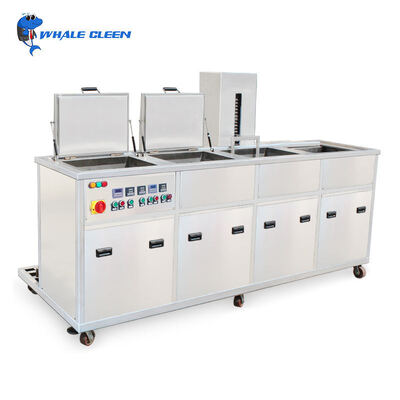

360L Four Tanks Ultrasonic Cleaner
Industrial Ultrasonic Cleaning Machine with Heating, Filtering, Recycling, Rinsing, Lifting and Drying
The 360L Four Tanks Ultrasonic Washer and Dryer is a high-capacity industrial ultrasonic cleaning system designed for manufacturers that require efficient degreasing, stable cleaning quality, and integrated drying in a single production line. By combining ultrasonic cleaning, heating, filtration, recycling, rinsing, lifting, and drying functions, this machine helps factories reduce manual operations, improve consistency, and meet higher cleanliness standards in mass production environments.
Product Overview
This Four Tanks Ultrasonic Washer and Dryer is engineered for medium-to-large industrial parts with heavy oil contamination and complex structures. Each tank is designed with a specific function, allowing buyers to build a standardized, repeatable cleaning process suitable for continuous operation. With a 360L tank capacity, high ultrasonic power, and industrial-grade stainless steel construction, the system is widely used by manufacturers upgrading from single-tank or semi-automatic cleaning methods.
Four-Tank Working Process
The 360L Four Tanks Ultrasonic Washer and Dryer adopts a linear workflow to ensure efficient and reliable cleaning:
1st Tank - Ultrasonic Cleaning with Heating & Filtering Recycling
High-power ultrasonic cavitation removes grease, oil, and machining residues. The integrated filtering and recycling system extends cleaning solution life and reduces operating costs.
2nd Tank - Ultrasonic Rinsing
Secondary ultrasonic rinsing minimizes chemical carryover and improves surface cleanliness before final processing.
3rd Tank - Hot Rinsing / Functional Cleaning
Heated rinsing enhances residue removal and prepares parts for drying, especially for precision or export-grade components.
4th Tank - Lifting & Drying
Equipped with a lifting structure and drying function, this stage reduces manual handling and shortens overall cycle time. This multi-stage process delivers more consistent cleaning results compared with single or dual-tank systems.
Key Features
- Large 360L tank capacity for batch processing of industrial parts
- High ultrasonic power (0-3600W adjustable) for strong degreasing performance
- Ultrasonic frequency options (28kHz / 40kHz) for different materials and contamination levels
- Independent heating system (up to 95°C adjustable)
- Filtering and recycling system to lower chemical consumption
- Integrated lifting and drying function to improve efficiency and safety
- SUS304 / SUS316 stainless steel tanks for corrosion resistance and long service life
This Four Tanks Ultrasonic Washer and Dryer is built for stable, long-term operation in factory environments.
Advantages for Procurement & Engineering Teams
From a buyer's perspective, this system offers:
- Reduced labor cost through integrated functions
- More stable and repeatable cleaning quality
- Lower operating cost via solution recycling
- Improved production efficiency and throughput
- Flexible customization for different production lines
It is an ideal solution for buyers seeking a reliable industrial ultrasonic cleaning system rather than light-duty equipment.
Application Industries
The 360L Four Tanks Ultrasonic Washer and Dryer is suitable for:
- Automotive and auto parts manufacturing
- CNC machining and metal fabrication
- Hardware, fasteners, and stamping parts
- Mold and tool cleaning
- Precision mechanical components
- Maintenance and refurbishment workshops
Applicable materials include metal, coils, plastic, glass, and ceramic components.
Technical Specifications (Customizable)
| Item | Specification |
|---|---|
| Machine Type | Industrial Ultrasonic Cleaner |
| Cleaning Type | Four Tanks Ultrasonic Washer and Dryer |
| Use | Degreasing / Industrial Parts Washing |
| Cleaning Process | Solvent Cleaning |
| Condition | New |
| Brand Name | Blue Whale / Whale Cleen |
| Place of Origin | Guangdong, China |
| Each Tank Capacity | 360L (customizable) |
| Tank Size (L×W×H) | 1000×600×600 mm (customizable) |
| Ultrasonic Frequency | 28kHz or 40kHz (customizable) |
| Ultrasonic Power | 0-3600W adjustable (1st, 2nd & 3rd tanks) |
| Transducer Quantity | 72 pcs per ultrasonic tank (Total 216 pcs) |
| Heating Power | 9kW per tank (Total 36kW) |
| Temperature Range | Room temperature to 95°C adjustable |
| Total Power | 46.8kW |
| Tank Material | SUS304 or SUS316 stainless steel (customizable) |
| Power Supply | AC 220-240V / 380V, 50/60Hz |
| Weight | 250 kg |
| Warranty | 1 Year |
| After-sales Service | Free spare parts |
| After-warranty Service | Video technical support |
| Functions | Ultrasonic cleaning, heating, filtering, recycling, rinsing, lifting, drying |
Frequently Asked Questions (Q&A)
Q1: Can the tank functions or layout be customized?
Yes. Tank functions, dimensions, ultrasonic power, and workflow can be customized based on your parts and production requirements.
Q2: Which ultrasonic frequency should I choose?
28kHz is recommended for heavy oil and strong contamination; 40kHz is suitable for precision parts and delicate surfaces.
Q3: Is this machine suitable for continuous industrial operation?
Yes. This Four Tanks Ultrasonic Washer and Dryer is designed for long-term, high-frequency factory use.
Q4: What types of cleaning solutions can be used?
Both solvent-based and water-based industrial cleaning solutions are supported. Technical guidance is available upon request.
About Whale Cleen
Quality Assurance
Quality Control: We use high-quality electrical and mechanical components to ensure stable and reliable performance. Our machines are designed by highly experienced engineers who have previously developed equipment for leading international manufacturing companies. In addition, our production team consists of skilled workers with many years of experience in building automated cleaning lines. Our quality control system covers the entire process, from raw material inspection to final machine assembly and testing.
Professional Experience: We have worked with numerous well-known manufacturing enterprises and government projects, accumulating extensive project implementation experience. In addition, we have many years of international experience in machine installation, commissioning, and on-site testing overseas. We are committed to providing comprehensive and reliable after-sales support and services to ensure long-term customer satisfaction after purchase.
Payment Terms: Flexible options including 10-20% payment after installation and testing.
After Sales Service: Installation and testing service at your facility until proper operation, with 1-year warranty and 24/7 support.
Non-standard Customization: Source manufacturer capable of customizing various non-standard cleaning machines with fast delivery.
Care Instructions
- Preparation: Ensure cleaner is clean and free of debris before use. Fill with appropriate cleaning solution and plug into grounded outlet.
- Loading: Place items in provided basket/tray without touching each other or tank sides.
- Settings: Set time and temperature according to cleaning solution instructions (lower for delicate items).
- Operation: Run degassing function if available before starting cleaning cycle.
- Unloading: Rinse items thoroughly with clean water after cycle completes.
- Maintenance: Empty tank, rinse thoroughly, and wipe dry after each use.
With 20 years of experience, Whale Cleen specializes in the design, manufacturing, and customization of industrial ultrasonic cleaning machines. Backed by our own factory, professional technical team, and factory-direct pricing, we provide one-stop solutions for global customers. If you are sourcing a reliable Five Tanks Industrial Ultrasonic Cleaner or planning a customized cleaning line, the LanJ-J590X2 (108L) is a proven and scalable option.
