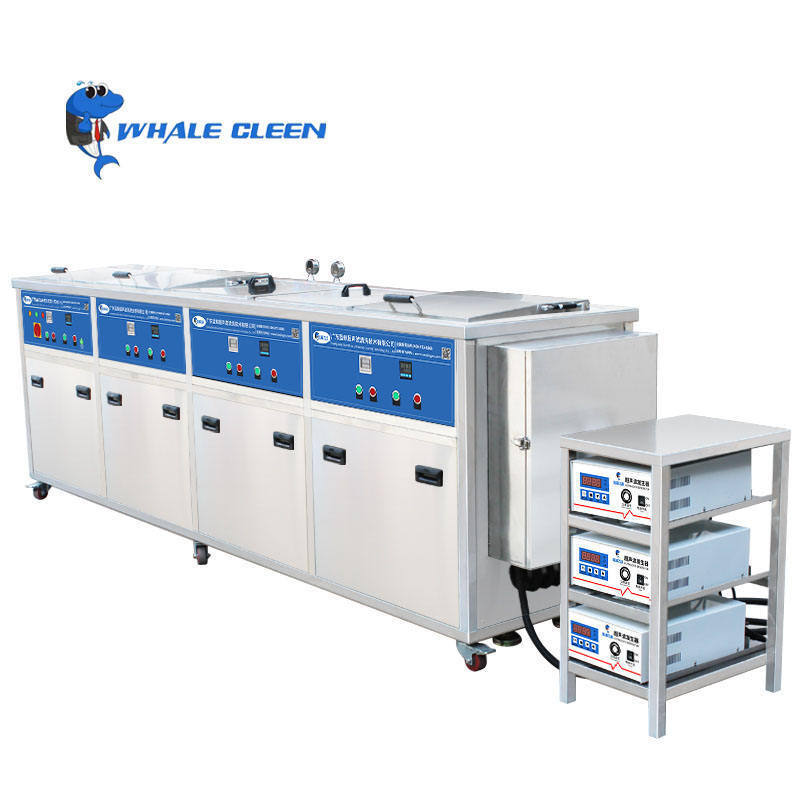

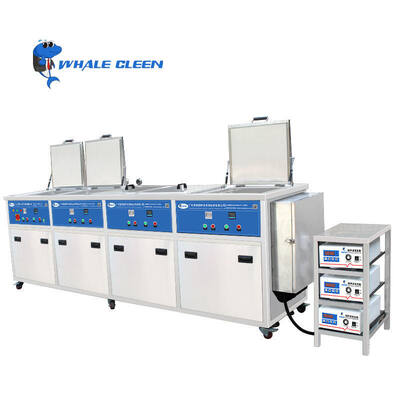

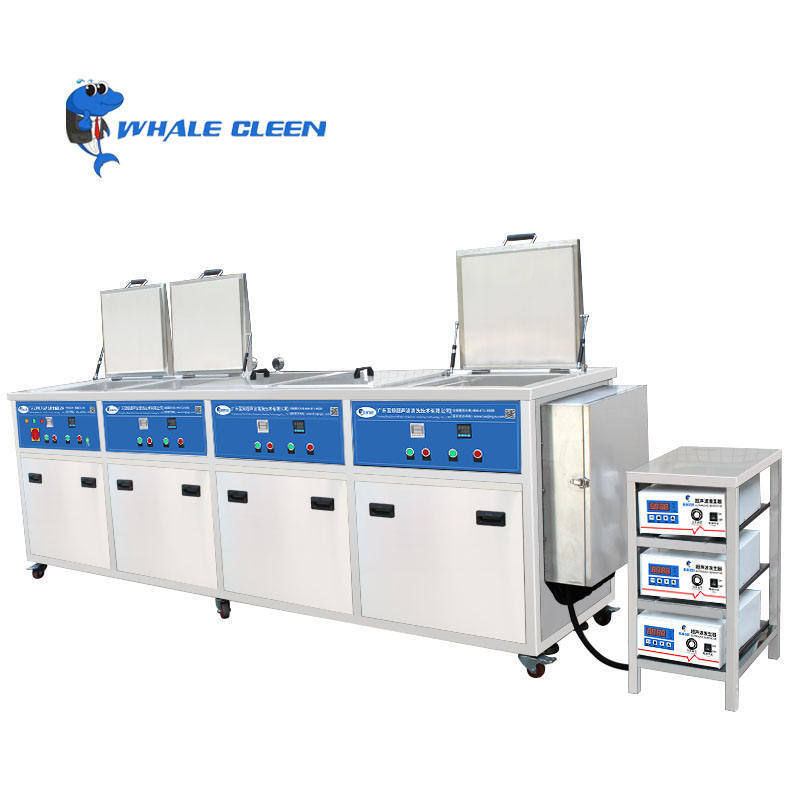

Five Tank Industrial Ultrasonic Cleaner 192L for Solvent Degreasing and Metal Parts Cleaning

Built for high-throughput parts washing and precision degreasing, this Industrial Ultrasonic Cleaner is a multi-stage, stainless-steel cleaning system designed for factories that need consistent, repeatable results with lower labor cost. The five independent tanks (each 192L) enable a complete cleaning + rinsing + drying workflow in one line—ideal for production environments working with oils, machining fluids, polishing compounds, and stubborn contaminants.

• Five-tank integrated line (192L per tank) for continuous processing and higher daily output
• Solvent degreasing process: strong removal of oil/grease, wax, polishing paste, and carbon deposits
• Ultrasonic frequency options: 40kHz or 28kHz (customizable) for different contamination types and part structures
• High-power ultrasonic modules: ultrasonic tanks can be configured for stronger cavitation and faster cleaning
• Heating system: adjustable from room temperature to 95 °C to improve degreasing speed and drying efficiency
• Durable tank construction: SUS304 or SUS316 stainless steel (customizable) for long service life
• Safety & usability: independent control panels, tank lids, and modular generators for easier maintenance
• Support: 1-year warranty, video technical support, and free spare parts (per standard policy)

1. One-stop cleaning workflow: washing, multiple rinses, and final handling can be combined in one system to reduce transfers and rework.
2. Better cleaning consistency: ultrasonic cavitation reaches blind holes, grooves, and complex geometries that manual scrubbing can't.
3. Production-ready build: heavy-duty structure, industrial casters, and integrated plumbing make it suitable for factory operations.
4. Flexible customization: tank material, frequency, ultrasonic power, and process layout can be tailored to your parts and solvents.
5. Lower operating cost: optimized process sequence reduces solvent loss, shortens cleaning time, and minimizes labor.

A typical configuration for this Industrial Ultrasonic Cleaner can be:

1. Tank 1 - Ultrasonic Solvent Degreasing
   Loosens and removes heavy oil, grease, and machining residue.
2. Tank 2 - Ultrasonic Rinse / Secondary Cleaning
   Improves cleanliness and reduces carryover.
3. Tank 3 - Rinse / Overflow Rinse (Process Tank)
   Further removes residual solvent and contaminants.
4. Tank 4 - Ultrasonic Hot Rinse (optional, per process)
   Enhances final cleanliness and speeds up drying.
5. Tank 5 - Heating / Drying / Final Treatment (customizable)
   Supports warm rinse, hot air, or process-specific finishing.

Actual tank functions can be customized based on your solvent type, cleanliness standard, and production takt time.

This Industrial Ultrasonic Cleaner is widely used for:

• Metal parts: CNC/machined components, stamped parts, die-casting parts, fasteners
• Coils & precision hardware: bearings, valves, nozzles, hydraulic parts
• Glass & plastics: molds, fixtures, industrial assemblies (process-dependent)
• Pre-treatment lines: before coating, plating, painting, bonding, or assembly

Popular with Overseas Buyers:

• Tank size & number of tanks (workflow design)
• SUS304/SUS316 selection for different solvents and corrosion requirements
• Frequency and ultrasonic power matching to part geometry and contamination

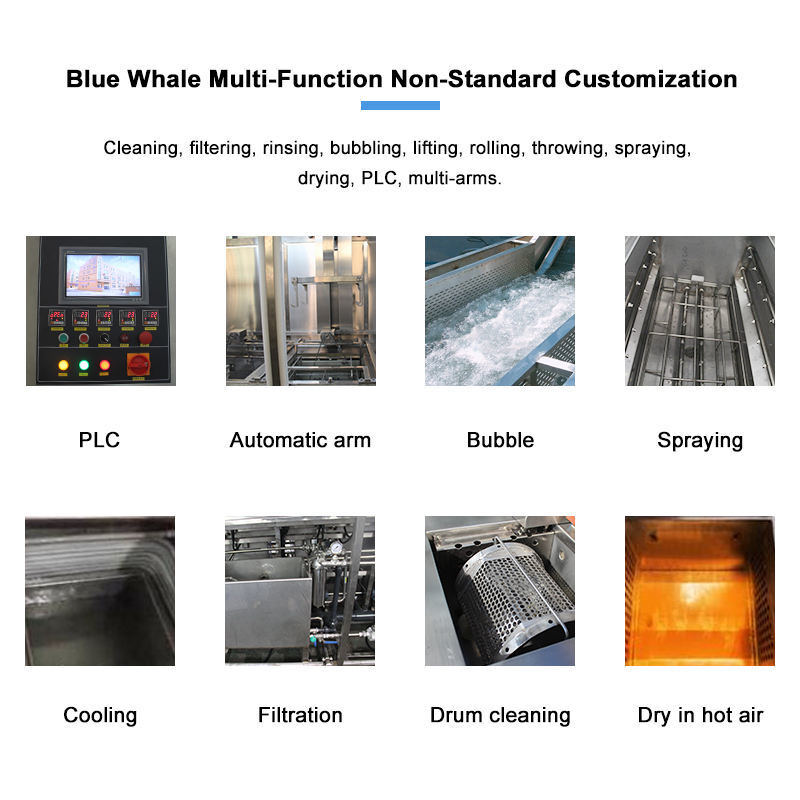

• Filtration, oil skimmer, overflow rinse, drying method, and conveyor/handling fixtures
• PLC control, timers, digital displays, and safety interlocks (project-based)

Whale Cleen has 20 years of ultrasonic cleaning industry experience with a self-owned factory and a professional technical team. We focus on designing, manufacturing, and customizing industrial ultrasonic cleaning systems with source-factory pricing and one-stop service—from process recommendation to after-sales technical guidance. If you are sourcing a reliable line supplier, this Industrial Ultrasonic Cleaner can be configured to match your parts, solvent, and cleanliness standard.
