Highlight

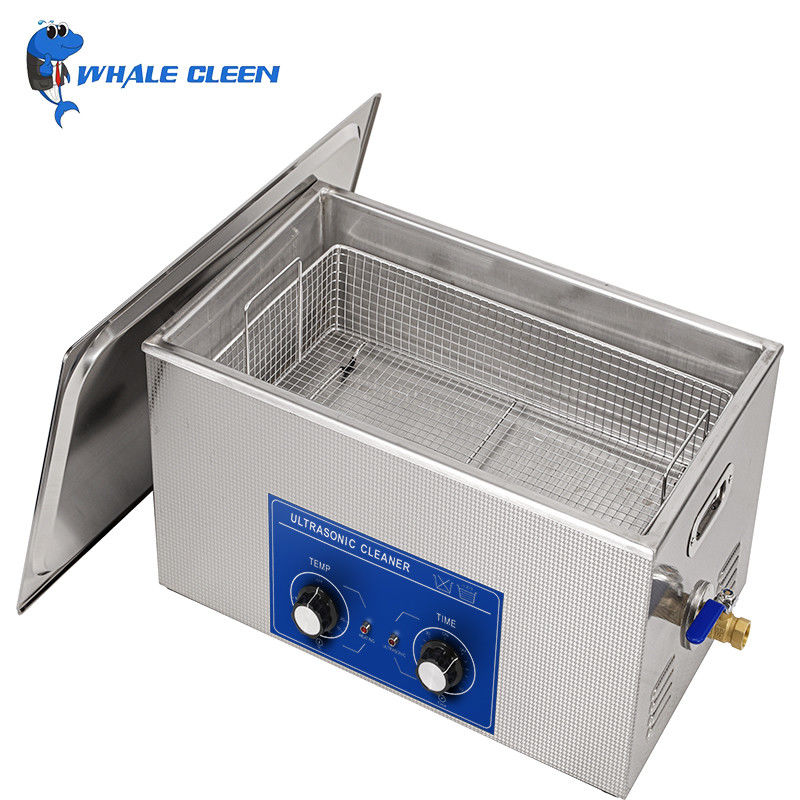

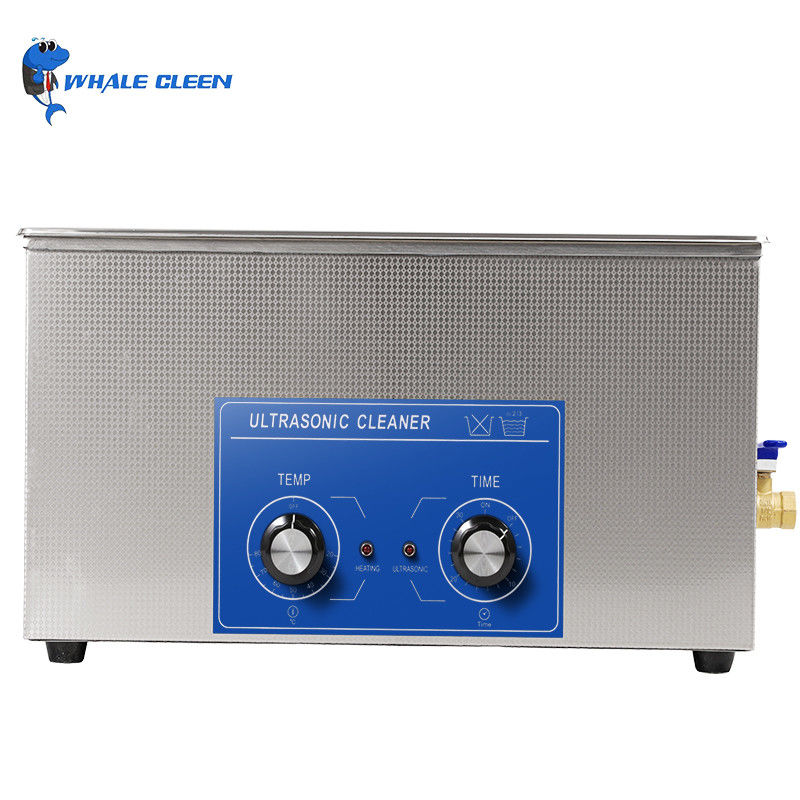

Mechanical Model Ultrasonic Gun Cleaner
,30L Ultrasonic Gun Cleaner
,Ultrasonic Gun Cleaner 40000Hz Frequency
-
Tank Size500×300×200mm
-
Unit Size530×325×325mm
-
Packing Size635×405×390mm
-
Net Weight14kg
-
Gross Weight15.6kg
-
Frequency40000Hz
-
Product NameUltrasonic Washer
-
Ultrasonic Power500W
-
Place of OriginChina
-
Brand NameWhale Cleen
-
CertificationCE, Roth
-
Model NumberZ-10
-
Minimum Order Quantity2 units
-
PriceNegotiable
-
Packaging DetailsCarton Box Packing
-
Delivery TimeDepend On Quantity
-
Payment TermsT/T
-
Supply Ability20000 Units Per Month
Mechanical Model Ultrasonic Gun Cleaner
30L Mechanical Model Ultrasonic Gun Cleaner Fast Clean With Heater

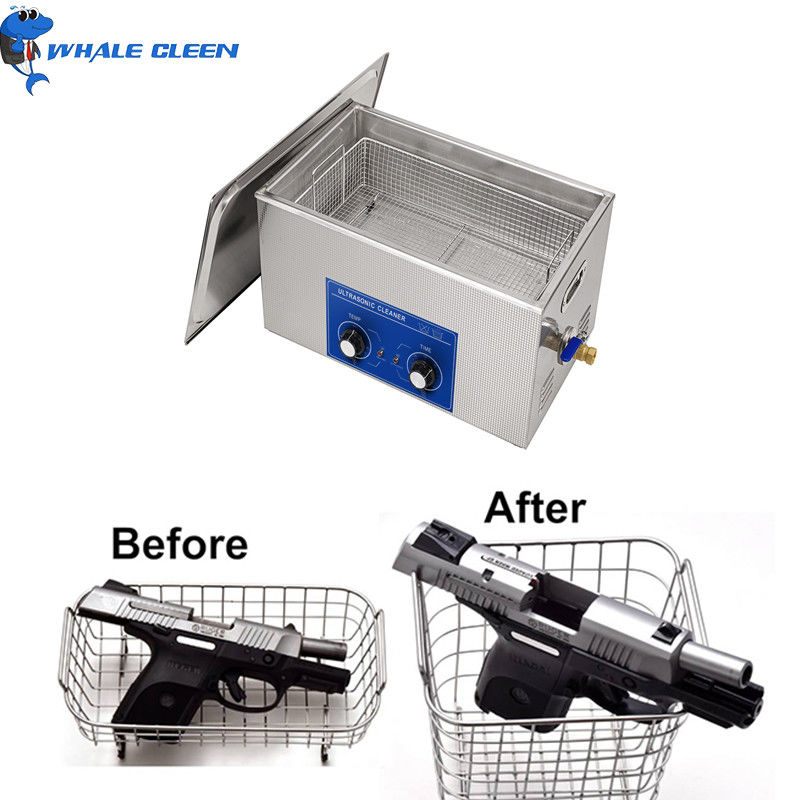

Ultrasonic Cleaning Process For Gun:
1. Disassemble Your Gun.
2. Put Your Gun Parts In Cleaning Basket.
3. Put the cleaning basket in ultrasonic cleaning tank.
4. Pouring Water into cleaning tank and add some cleaning solvent but make sure water level don't beyond the max line.
5. Set the cleaning time and temperature according to your cleaning requirement.
6. Take out the cleaning basket and rinse the gun parts with fresh water.
7. Dry all the gun parts entirely.
8. Lube the gun parts with ultrasonic tank immediately after drying process.
9. Assemble your gun.
10. Keep the machine and cleaning tank dry after finishing all cleaning job.
Speficication:
|
ModelLanJ- |
z-10 |
|
Ultrasonic Frequency |
40,000 Hz |
|
Tank Material |
Stainless Steel SUS304 |
|
Tank Capacity |
30 L |
|
Timer |
1-30minutes ,Mechanical timer |
|
Power Supply |
AC 100 ~ 120V, 50 / 60Hz |
|
Ultrasonic Power |
500W |
|
Heating Power |
600 W , Mechanical Heating |
|
Unit Size |
530×325×325 mm ( L x W x H ) |
|
Package Size |
635×405×390mm( L x W x H ) |
|
Longest Gun You Can Clean |
500mm |
|
N.W. |
14kg |
|
G.W. |
15.6kg |
If this model is not suitable for you, please check other in below chart.
|
Model |
Tank size |
Unit size |
Volume |
Actual ultrasonic power |
Rated ultrasonic power |
Ultrasonic frequency |
Heating power |
Timer |
Heating temperature |
|
LxWxH(mm) |
LxWxH(mm) |
(L) |
(W) |
(W) |
(kHz) |
(W) |
(MIN) |
(℃) |
|
|
Z-008 |
150x85x65 |
175x110x125 |
0.8 |
30 |
30 |
40 |
no |
1-30 |
no |
|
Z-01 |
150x135×100 |
175x160x210 |
2 |
50 |
60 |
40 |
150 |
1-30 |
0-80 |
|
Z-02 |
240x135x100 |
265x165x220 |
3.2 |
100 |
120 |
150 |
|||
|
Z-03 |
300x150x100 |
325x180x225 |
4.5 |
150 |
180 |
300 |
|||
|
Z-031 |
300x150x150 |
325x180x280 |
6.5 |
150 |
180 |
300 |
|||
|
Z-04 |
300x240x150 |
325x265x280 |
10.8 |
200 |
240 |
450 |
|||
|
Z-06 |
330x300x150 |
360x325x285 |
15 |
300 |
360 |
450 |
|||
|
Z-08 |
500x300x150 |
530x325×285 |
22 |
400 |
480 |
600 |
|||
|
Z-10 |
500x300x200 |
530x325x325 |
30 |
500 |
600 |
600 |
Customer's Feedback:
Discount Policy:
If you are the first customer of Whale Cleen sonic, you will get US$50 coupon when your purcahse amount over US$500.More discount information,please contact our sales man for more detail.
FAQ:
1. What is an Ultrasonic Transducer?
A transducer converts electrical energy at the ultrasonic frequency to mechanical motion–sound. It directs the sound energy into the cleaning tank.
2. What is Cavitation and Implosion?
The phenomenon of cavitation is unique in fluids. The cavitation bubbles implode, releasing high energy locally. This implosion is the heart of the ultrasonic process.
3. How does Ultrasonic Cleaning Work?
An ultrasonic system works by inducing controlled cavitation in the cleaning fluid. Cavitation refers to microscopic voids or "bubbles" that form when the transducers emit sufficient ultrasonic energy into the fluid. The cavitation bubbles form relatively slowly and then collapse suddenly, releasing tremendous energy against the surfaces of objects immersed in the tank that ‘scrubs’ hard to remove soils from the parts.
